Product no. 043-2372-0/ICM305-WHITE | Contact us: 1-855-803-9313
4

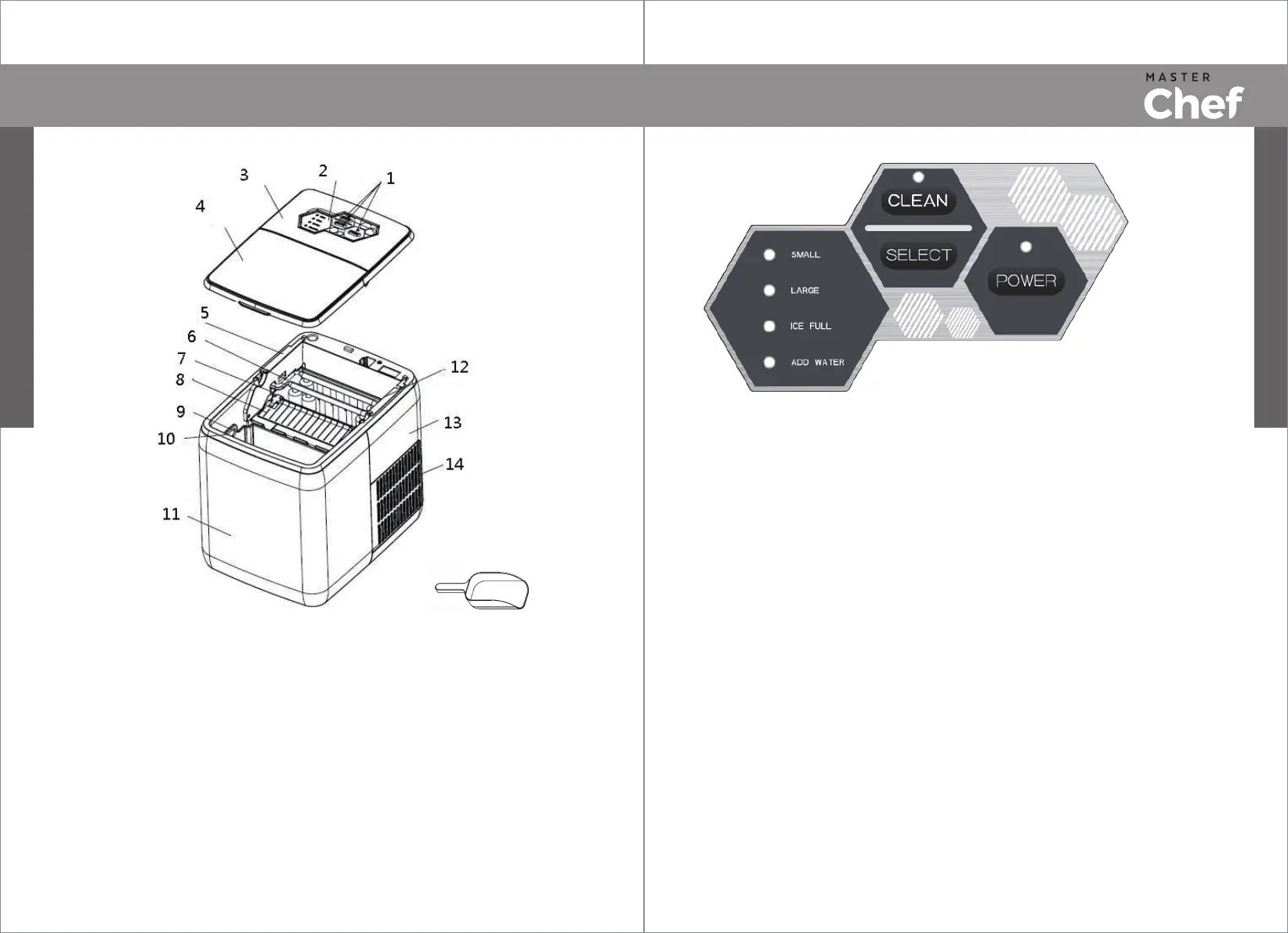

PARTS LIST
5
CONTROL PANEL OPERATION
TM
1. Buttons
2. Control panel
3. Top cover
4. Transparent lid
5. Micro switch bracket
6. Evaporator
7. Water box
8. Ice shovel board
9. Ice basket
10. Water reservoir
11. Front big body
12. Motor bracket
13. Rear big body
14. Cooling port
1) POWER: Plug in the power and the source indicator flashes. Press the POWER button, the
power indicator light will turn on. The ice making cycle will start and will produce ice per size
selected. Aer the ice making is completed, the ice will be moved into the ice basket.
2) SELECT: Select the ice size mode. Each time you start the machine, the default mode is large
ice making mode, and the indicator light of the selected mode is on. It takes more than eight
minutes to make small ice, and more than nine minutes to make large ice. It is recommended to use
large ice mode for ambient temperature above 25°C (77°F) and small ice mode for ambient
temperature below 20°C (68°F).
3) CLEAN: Add water to water reservoir. Press power button and then clean button. The water
pump will draw water through appliance. Repeat this cycle. Cleaning cycle is approximately 4
minutes.
4) ADD WATER: Water shortage alarm: When this red light is on, it means there is not enough
water in the water reservoir. You will need to add water and press the POWER button to restart
the machine.
5) ICE FULL alarm: When the ice reaches the maximum amount in the ice storage container, the
“ICE FULL” light flashes and the machine will stop operating. The ice in the ice basket will need to
be removed. When the ice position is lower than the full sensor position, the machine automatical-
ly restarts.
POWER: Power switch SELECT: Mode selection
CLEAN: Cleaning button SMALL: small ice size selection
LARGE: large ice size selection
ICE FULL: ice full alarm ADD WATER: water shortage alarm
Ice shovel
