Master cool MCP44 - Cooler Diagram and Parts List

12

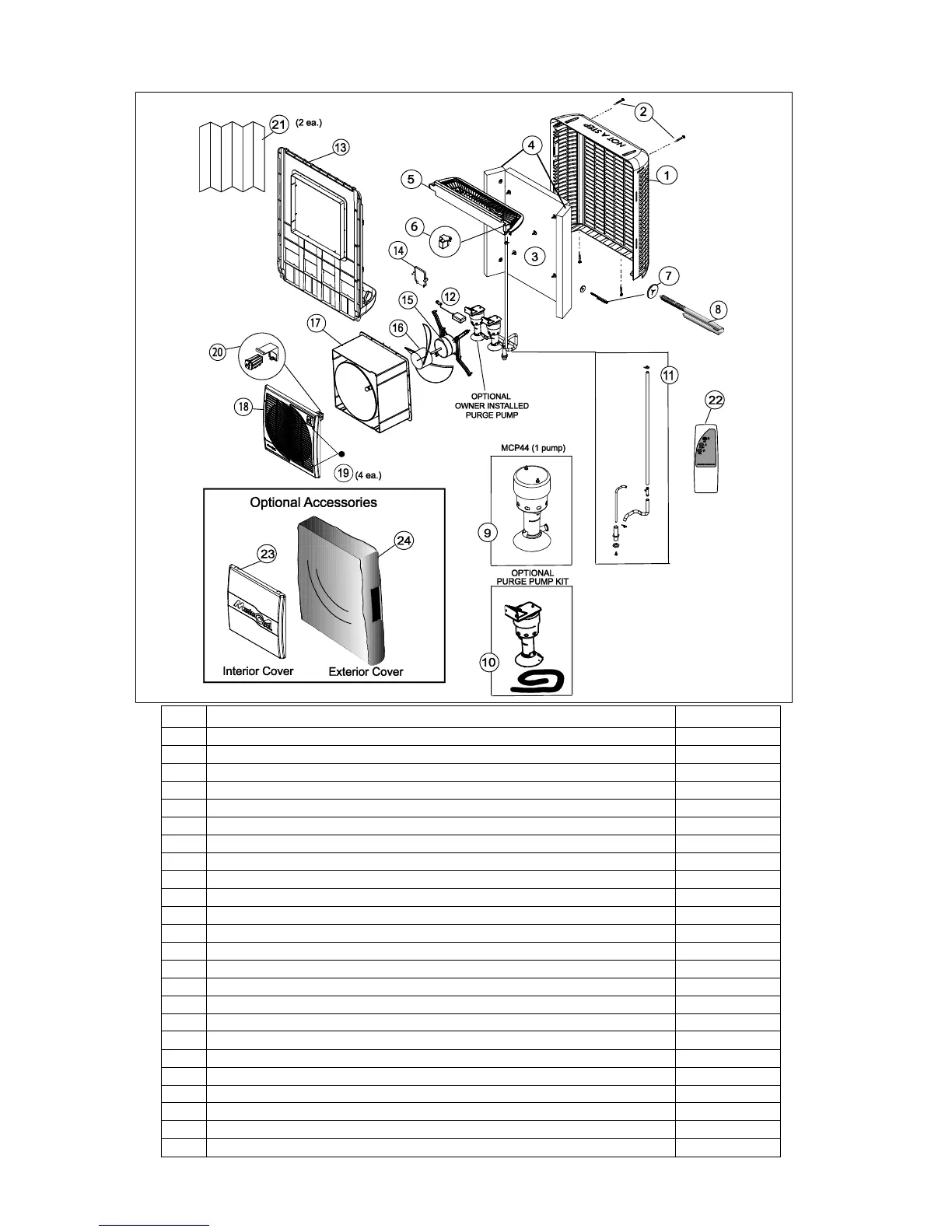

Cooler Diagram and Parts List
Item
Description
Part Number
1
Cooler Back/Media Guard
72243
2
Set of 4 screws for attaching back guard
72303
3
Back Media Pad; 2" X 24" X 35.5" CelDek
72244
4
Side Media Pad; 2" X 5.88" X 35.5" CelDek (2 ea.)
72245
5
Water distributor tray
72249
6
Tray cap
72250
7
Media Peg Clip; window cooler; PP (4 ea.)
72246
8
Media Peg; window cooler; PP (4 ea.)
72247
9
Pump assy. – Main water system
72402
10
Purge pump kit. (Optional Accessory)
MCP44-PPK
11
MCP44 Water Distribution Hose assy.
72256
12
Float valve
72290
13
Cooler body front
72242
14
Receptacle cover
72407
15
Fan motor
72428
16
Fan Blade
72253
17
Fan Housing
72251
18
Grille
72257
19
Grille screw caps
72260
20
Control module
72258
21
Vinyl accordion window panel (2 ea.)
72284
22
Remote control
72302
23
Interior Grille Cover – available for purchase
MCP44-IC
24
Exterior Cooler Cover – available for purchase
MCP44-EC
