Page 23

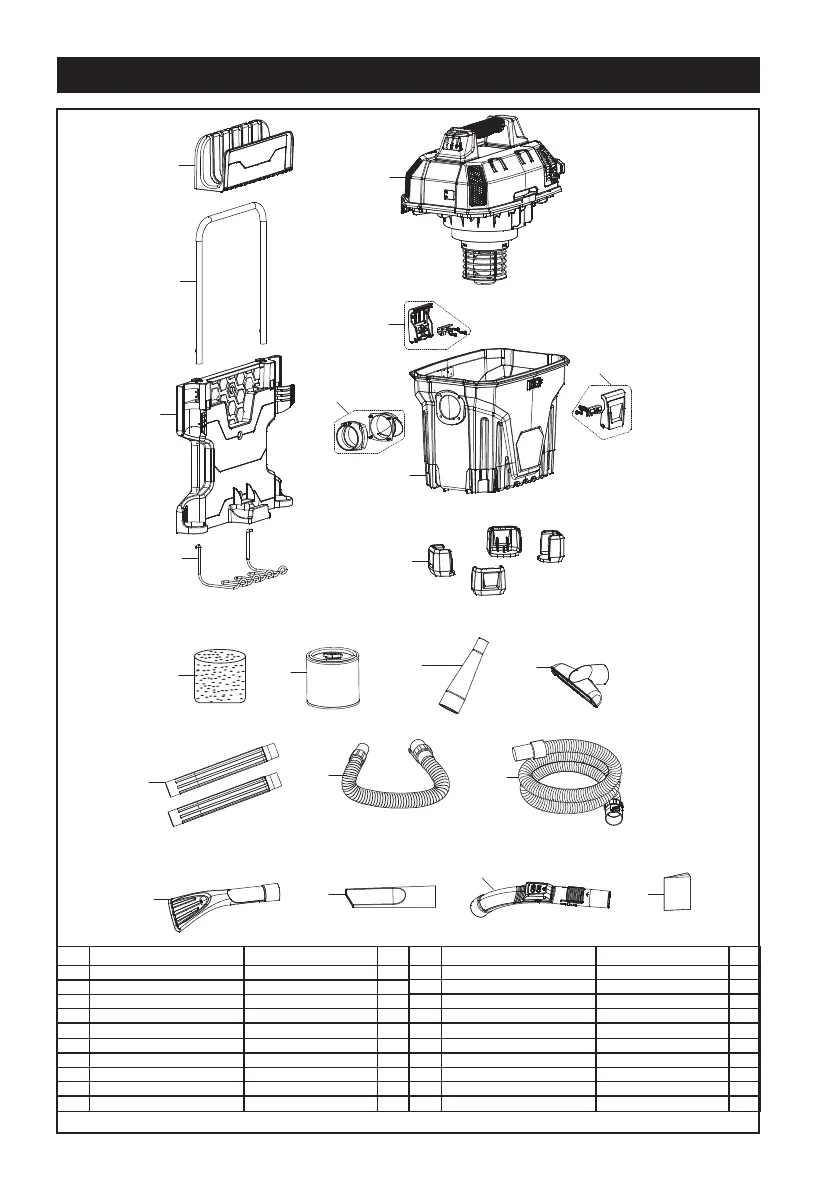

EXPLODED VIEW & PARTS LIST
10
20
1
6
7
2
8
3
9
4
5
2
11
12
13
14
15
16
17
18
19
Key Description Part # Qty
1 Power Head Assembly 1
2 Latch Assembly 551001176 2
3 Vacuum Port Assembly 551001153 1
4 Collection Tank 1
5 Bumper Foot 551001177 4
6 Hose Storage Rack 551299103 1
7 Hose Storage Support 551001179 1
8 Wall Mount Rack 551001180 1
9 Accessory Storage Rack 551001181 1
10 Foam Wet Filter 551001141 1
Key Description Part # Qty
11 Cartridge Filter 551301101 1
12 Concentrator Nozzle 551001182 1
13 Utility Nozzle 240-5262 1
14 Extension Wand 240-5264 2
15 10 ft. Flex Hose 551001114 1
16 11 ft. Standard Hose 240-5259 1
17 Car Nozzle 551170108 1
18 Crevice Tool 240-5261 1
19 Remote Control Handle 551299104 1
20 Operator's Manual 1
To Next Page
