Page 8
GENERAL ASSEMBLY INSTRUCTIONS
WARNING:
TO REDUCE THE
RISK OF ELECTRIC SHOCK-DO NOT
EXPOSE TO RAIN. MAKE SURE PLUG IS
DISCONNECTED BEFORE ASSEMBLING
THE WET/DRY VAC.

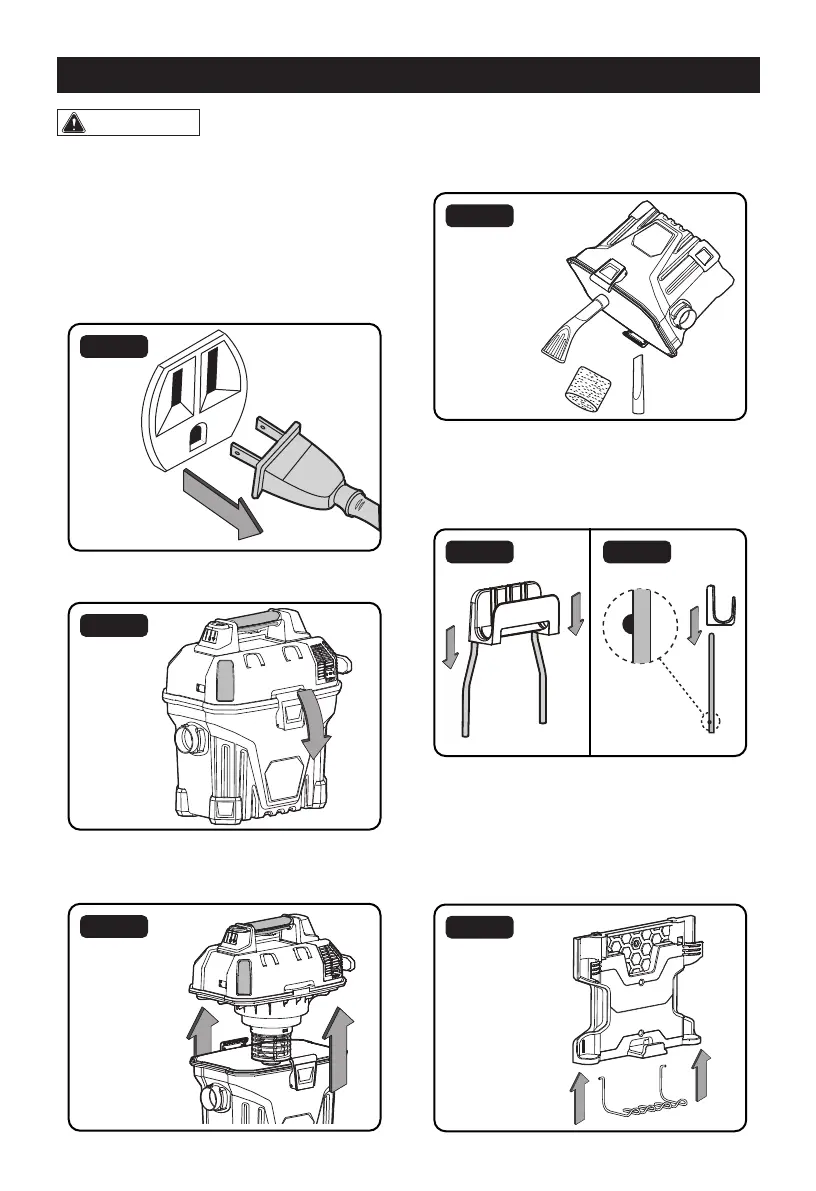

UNPACKING YOUR WET/DRY VACUUM &
GENERAL ASSEMBLY
1. Verify that the power cord is disconnected
from the outlet (Fig. 1).
Fig. 1
2. Undo the latches (Fig. 2).
Fig. 2
3. Lift the power head off the collection tank
(Fig. 3).
Fig. 3
4. Remove the contents from inside the
collection tank. Make sure you have all
contents as listed on page 6 (Fig. 4).
Fig. 4
5. Insert the steel rod into the hose storage
rack, and snap into place. Make sure the
buttons on the rod are directed as illustrated
(Fig. 5a & 5b).
Fig. 5a Fig. 5b
6. Locate the two openings on the bottom
of the mounting rack and insert the wire
accessory storage into the mounting rack
until they lock in place. Make sure the wire
accessory storage is directed towards the
front side of the mounting rack (Fig. 6).
Fig. 6
