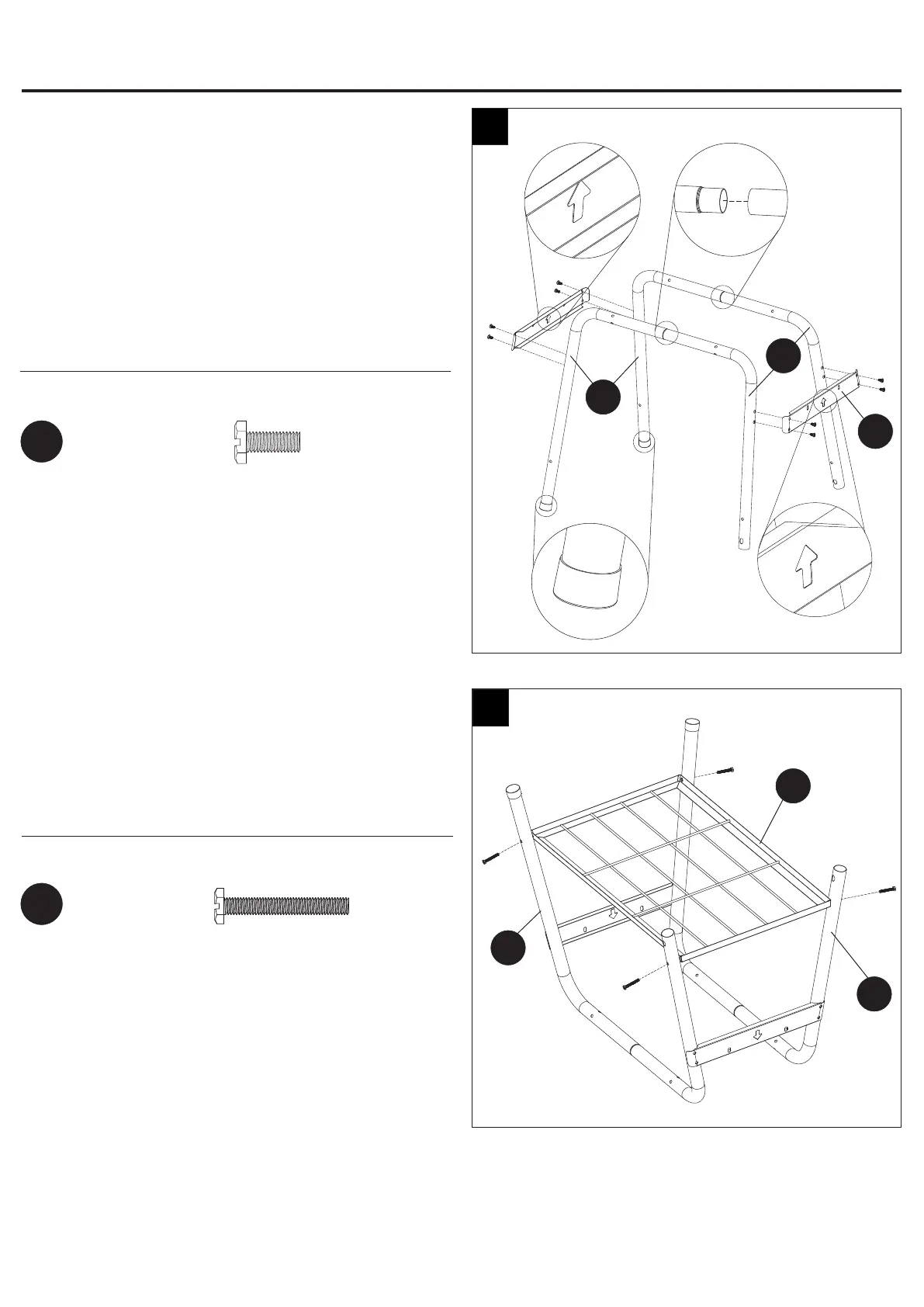

Step 1: Attach Long Legs, Short Legs and Leg
Braces
Align the holes in the long legs (N), short legs (O) and
leg braces (M). Then attach them together with eight
M6x20 bolts (CC) show in Fig.1 .
Connect the long legs (N) and short legs (O).
Note: Install the leg braces according to the upward
arrow.
Hardware Used
1
M6x20
Bolt
CC
x 8
Step 2: Attach Bottom Mesh
Align the holes in the the long legs (N), short legs (O)
and bottom mesh (Q). Then insert four M6x45 bolts
(DD) into the holes shown in Fig.2.
Hardware Used
M6x45
Bolt
DD
x 4
2
First
Third
ASSEMBLY INSTRUCTIONS
O
M
Q
N
Second
N
O
To Next Page
