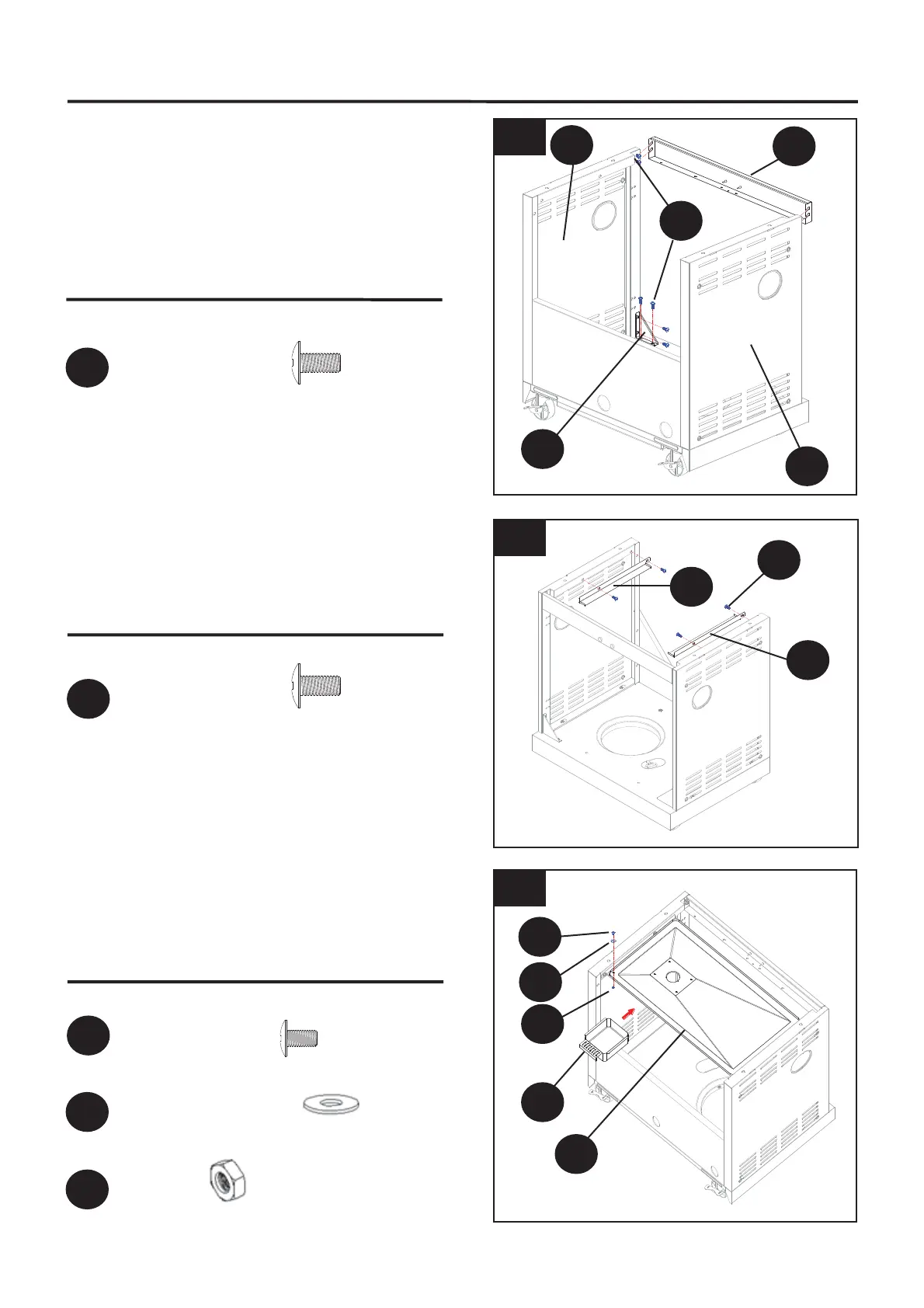

ASSEMBLY INSTRUCTIONS
4. Attach the Front Beam (R) to the Left Side
Panel (M) and Right Side Panel (U). Attach
one of the Reinforcing Plates (P)
to the
Left Side Panel and Bottom Panel and the
other to the Right Side Panel and Bottom
Panel.
Hardware Used
M6x12 mm Screw x12
BB
BB
5. Attach Left Drip Tray Support (Q) and
Right Drip Tray Support (T)
to the side
panels.
Hardware Used
M6x12 mm Screw x4
BB
BB
T
4
5
R
P
Q
DD
B
6
FF
EE
C
U
M
6. Put Drip Tray (B) onto the Drip Tray
Supports, then attach Grease Cup (C
) as
shown.
Hardware Used
M4x8 mm Screw x1
¶4 Plastic Washer x1
M4 Nut x1
DD
FF
EE
