25

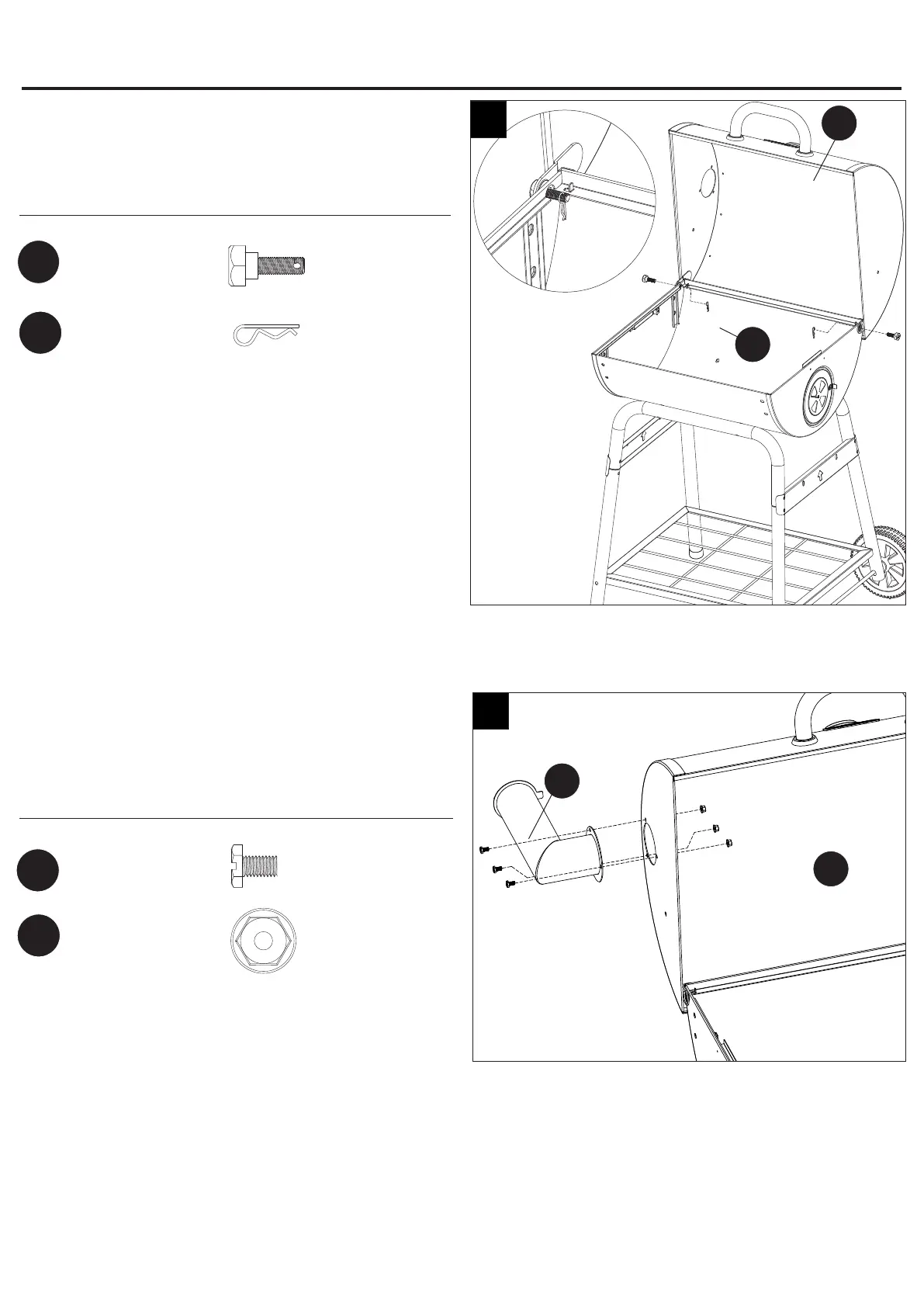

Paso 7: je la tapa
Coloque la tapa (D) en la fuente inferior (I) con dos
tornillos M8 (JJ) y pasadores de chaveta Ø1.4X30 (HH).
Aditamentos utilizados
7
INSTRUCCIONES DE ENSAMBLAJE
Pasador de
chaveta
Ø1.4x30
HH
x 2
Tornillo
M8
x 2
D
I
JJ
Paso 8: je el acumulador de humo
Coloque el acumulador de humo (C) en la tapa (D) con
tres pernos M6x12 (AA) y tres tuercas M6 (FF).
Aditamentos utilizados
8
Perno
M6x12
AA
x 3
Tuerca
M6
x 3
C
D
FF
