Master Forge CBC23032L User Manual

7
Third

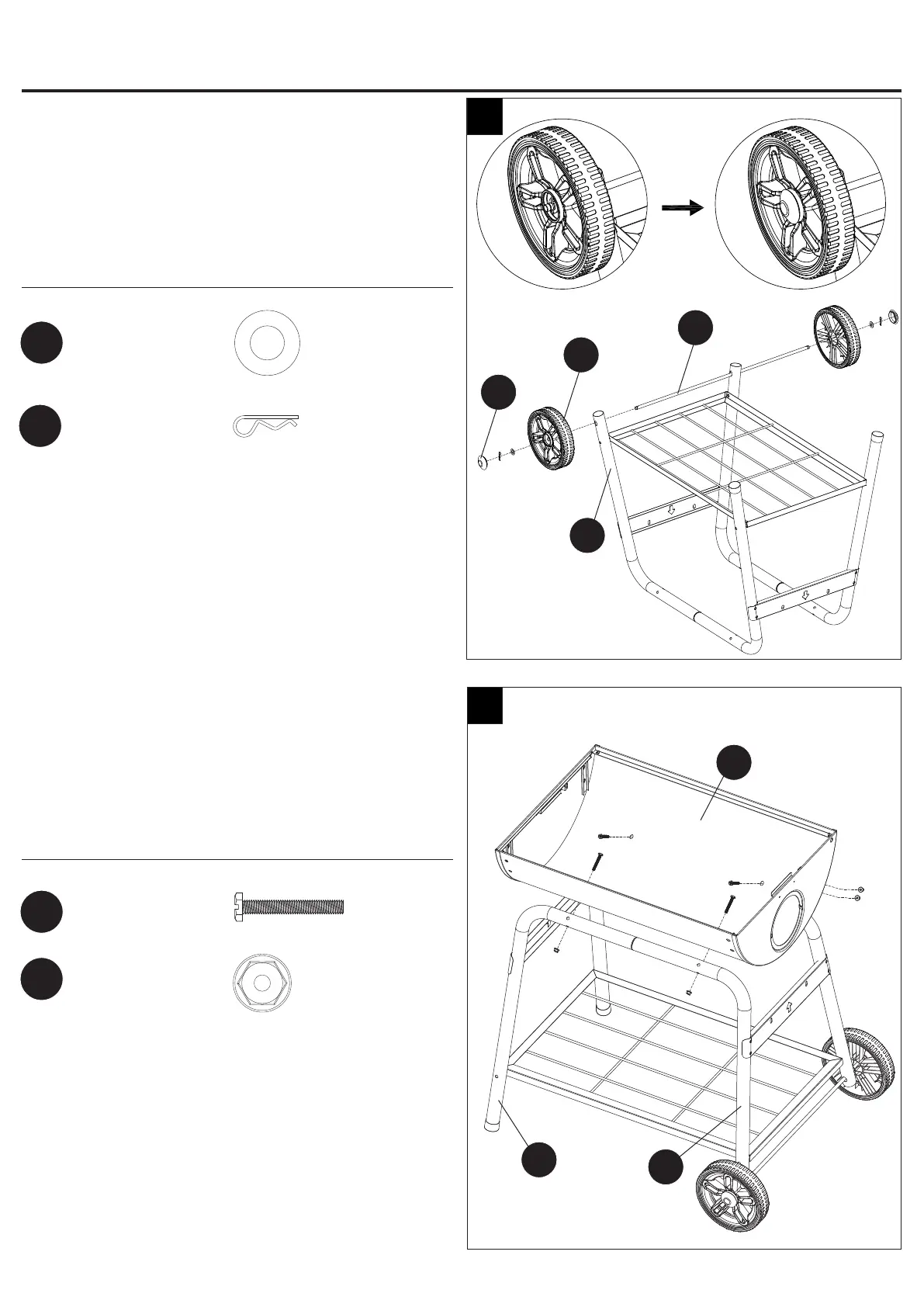

Step 3: Attach Axle, Wheels and Hub Caps
Insert the axle (S) through the short legs (O).
Attach wheels (T) and hub caps (R) onto the axle
(S) with two Ø20x10.5 washers (FF) and Ø1.4x30
cotter pins (II).
Hardware Used
3
Ø20x10.5
Washer
FF
x 2
Step 4: Attach Bottom Bowl
Align the holes in the bottom bowl (I), long legs (N)
and short legs (O). Then attach the bottom bowl (I)
onto the legs with four M6x45 bolts (DD) and M6
nuts (GG).
Hardware Used
M6x45
Bolt
DD
x 4
GG
4
ASSEMBLY INSTRUCTIONS
Ø1.4x30
Cotter Pin
II
x 2
I
R
O
N
O
T
S
M6
Nut
x 4
