9
ASSEMBLY INSTRUCTIONS
Hardware Used
KK
LL
MM
9
10

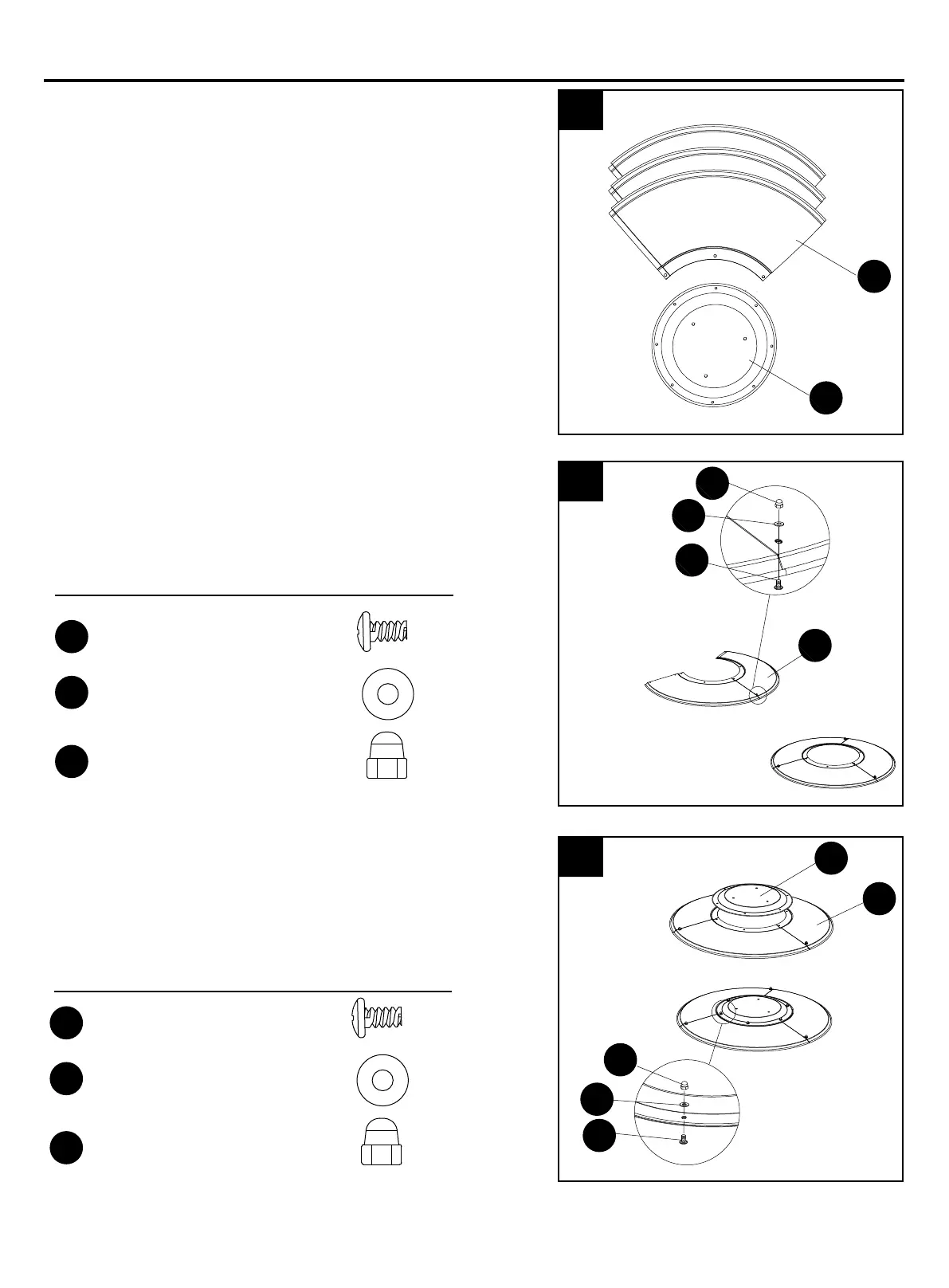

9. WARNING: Remove protective film before
assembling.
Note: If necessary for proper alignment of reflector
sections, loosen each bolt prior to further assembly
and retighten after sections are aligned.
Attach reflector panels (B) together using
M6 x10mm screws (KK) and
Φ6 Washer ( LL ).
Secure loosely with cap nuts (MM).
11. Attach reflector plate (A) to reflector panels (B)
Secure loosely with cap nuts (MM). Once properly
aligned, tighten all screws and the preassembled bolts.
x 3
x 3
x 3
Φ6 Washer
Cap Nut
Hardware Used
11
A
B
KK
MM
LL
B
10.
M6 x10mm
Screw
A
B
MM
LL
KK
KK
LL
MM
x 6
x 6
x 6
Φ6 Washer
Cap Nut
M6 x10mm
Screw
using M6 x10 mm screws (KK) and Φ6 washers (LL) .
To Next Page
