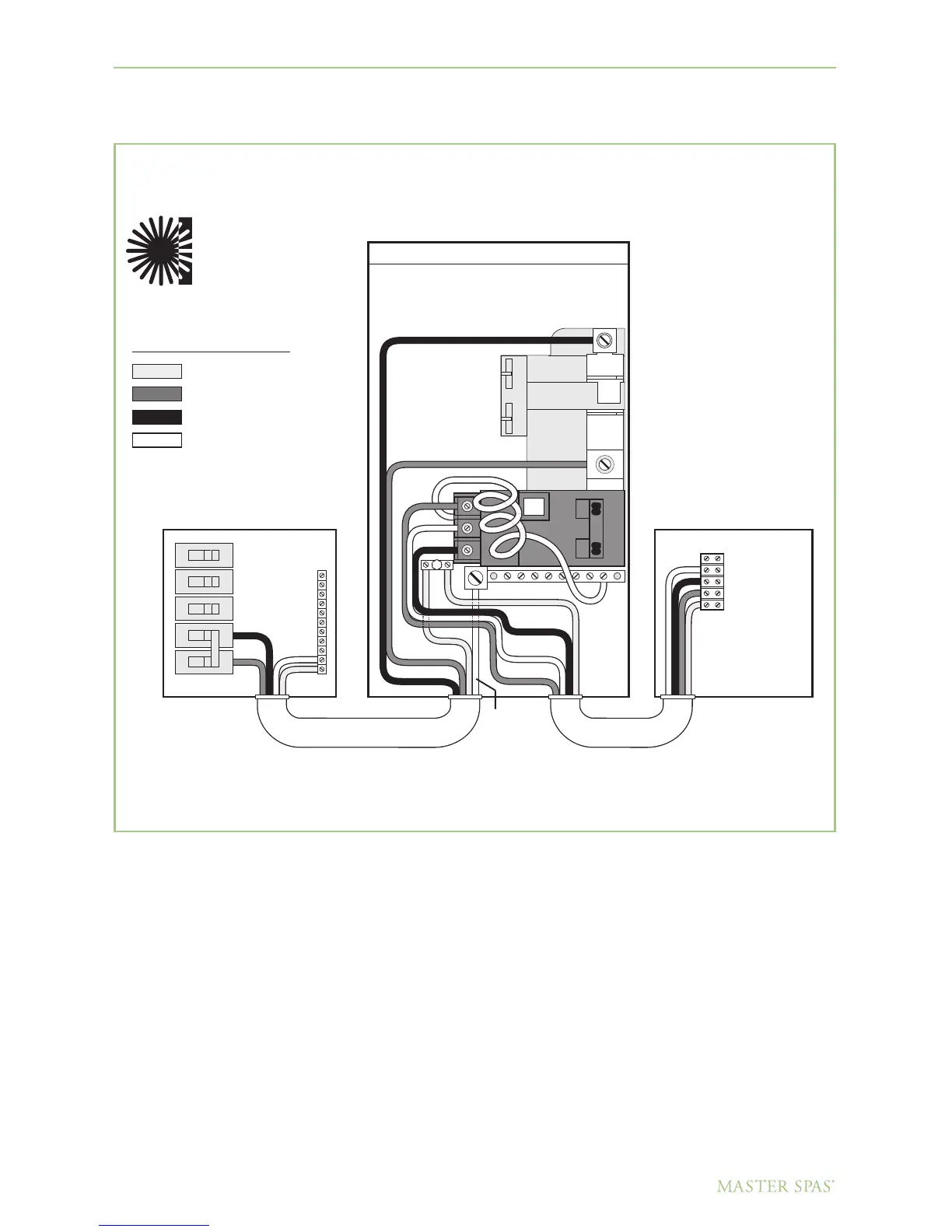

WIRING SCHEMATIC - 240 VOLT SPA HOOK-UP
17
DO NOT DIVE.
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
50 5050
TEST
50
1
2
3
4
5
WHITE (NEUTRAL)
BLACK (HOT)
RED (HOT)
GREEN (GROUND)
Instruments
Balboa
Incorporated
Wire Key
House Breaker Box
G.F.C.I Breaker Box
Spa System Box
Green (Ground)
Red (Hot)
Black (Hot)
White (Neutral)
NOTE: For a 240 V
dedicated hook-up, the
white neutral wire is
not required between
the G.F.C.I. and the
system box.
GRN
GRN (GROUND)
RED (HOT)
BLK (HOT)
BLK (HOT)
RED (HOT)
RED (HOT)
WHT (NEUTRAL)
WHT
WHT
BLK (HOT)
GRN (GROUND)
TB1
IDF00007.mac 6/17/97
* Actual wiring of GFCI will vary by manufacturer of GFCI. The GFCI shown is a Square D. Improper wir-
ing of GFCI may result in permanent damage to spa system box. Repair / replacement of spa
system box is not covered under warranty when damage results from improper wiring.
