Spa Controls
Information

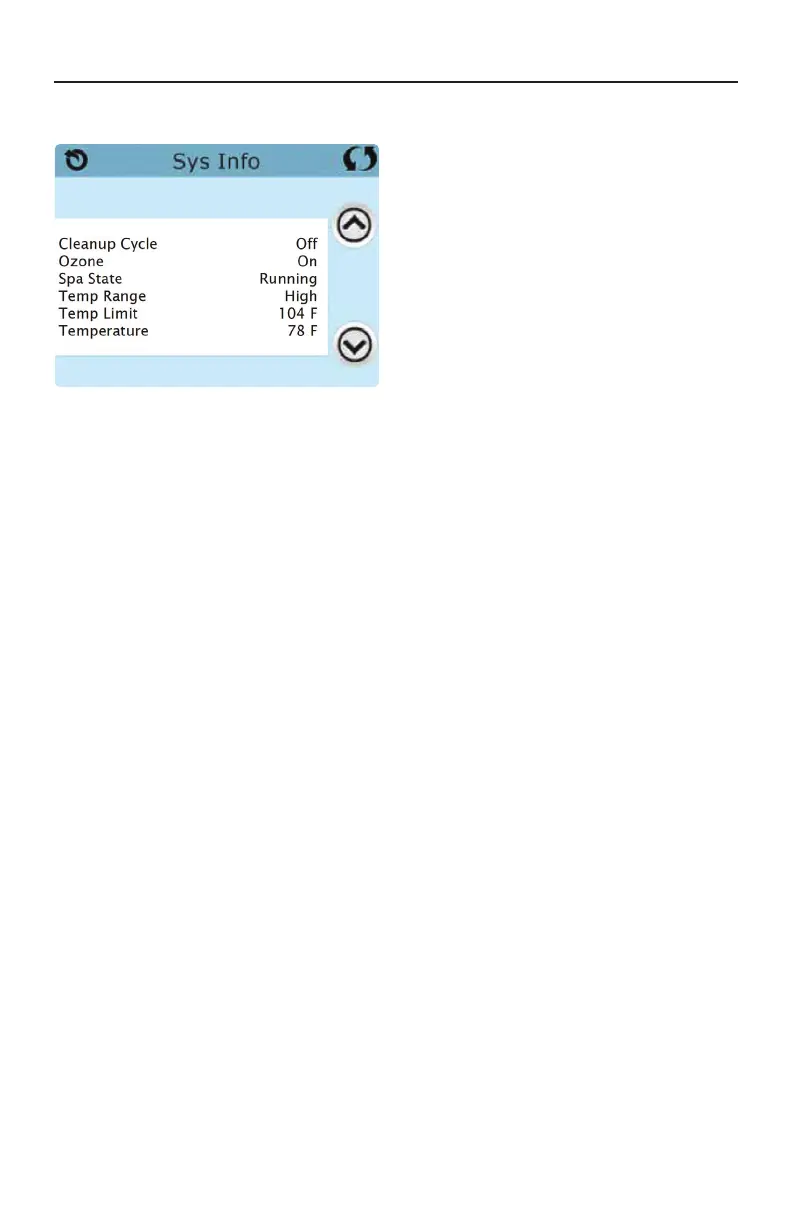

SYSTEM INFORMATION
The System Information Screen displays various settings and identification of the particular system.
System Model
Displays the Model Number of the System.
Panel Version
Displays a number of the software in the topside control panel.
Software ID (SSID)
Displays the software ID number for the System.
Configuration Signature
Displays the checksum for the system configuration file.
Current Setup
Displays the currently selected Configuration Setup Number.
Dip Switch Settings
Displays a number that represents the DIP switch positions of S1 on the main circuit board.
Heater Voltage (Feature not used on CE rated systems.)
Displays the operating voltage configured for the heater.
Heater Wattage as Configured in Software (CE Systems Only.)
Displays a heater kilowatt rating as programmed into the control system software (1-3 or 3-6).
Heater Type
Displays a heater type ID number.
