Master AIR - Step 3: Pedal Attachment; Step 4: Handle Bar Installation

37
EN

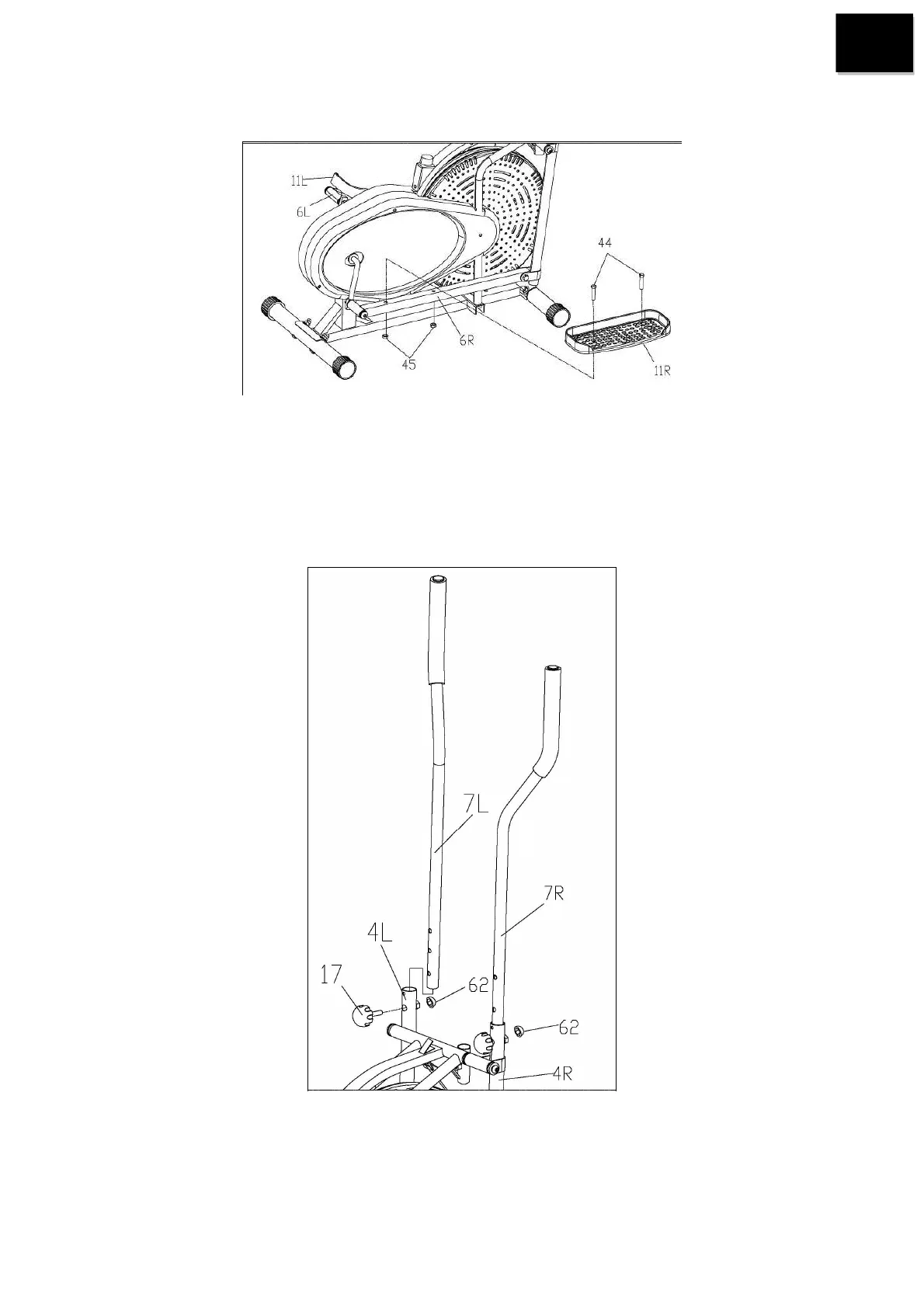

STEP 3:
Attach the Pedals (11L, 11R) to the Pedal tubes (6L, 6R) with Bolts (44) and Nuts (45).
STEP 4:
Insert the Handle bar (7L, 7R) to the coupler bar of left and right (4L, 4R), select a height setting that is
comfortable to the user, and make sure both handle bars are set at the same height. Lock each handle bar in a
place with Knob bolts (17). finally cover with plastic cap (62).
