TECHNICAL DATA
MODEL BF 35 BF 45 BF 75 BF 95 BF 105
Single phase power supply
230V ∼ 50 Hz
Air flow 1.900 m³/h 2.800 m³/h 4.500 m³/h 5.300 m³/h 6.300 m³/h
Cosumption 2,84 kg/h 3,95 kg/h 6,0 kg/h 7,84 kg/h 8,82 kg/h
Fuel Oil
Maximal thermal power 33,7 kW 46,8 kW 71,1 kW 93,0 kW 104,6 kW
Fan electric power 245 W 245 W 590 W 736 kW 736 kW
Flue diameter 120 mm 120 mm 150 mm 180 mm 200 mm
Fan starting temperature +35 °C
Safety limit temperature +100 °C
Fuel tank 55 litres 55 litres 75 litres 105 litres 135 litres
Dimensions L x P x H
460x1050x1600
mm
460x1050x1600
mm
540x1120x1700
mm
680x1220x1885
mm
760x1400x2000
mm
Net weight (without burner) 132 kg 137 kg 173 kg 197 kg 264 kg
Riello Burner REG 3 REG 5 R40 G10S R40 G10S R40 G10S

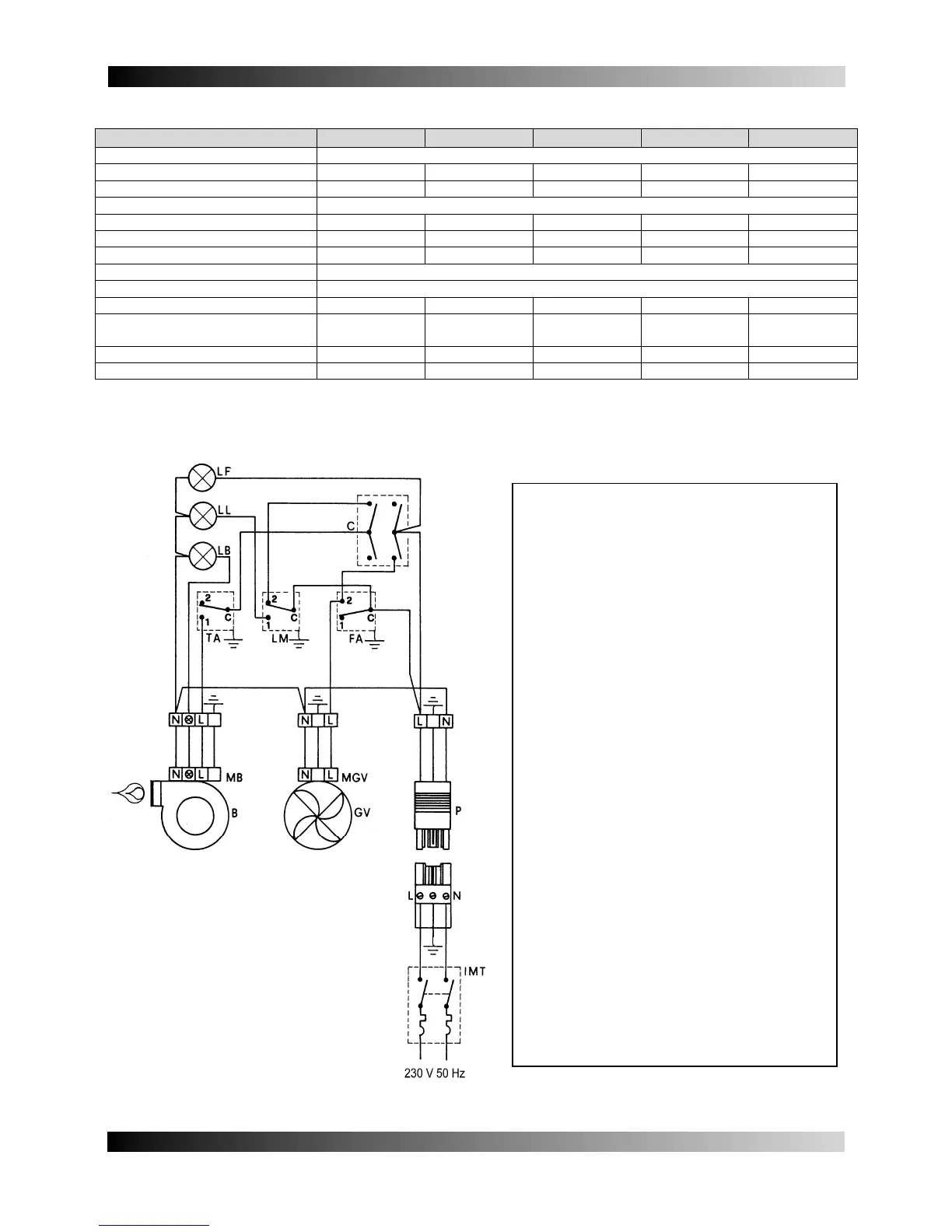

ELECTRIC DIAGRAM
LF Tension signal
LL LIMIT intervention signal
LB Burner block signal
C Heating / stop / fan commutator
TA Room thermostat
LM LIMIT thermostat
FA FAN thermostat
MB Burner terminal board
B Burner
MGV Fan group terminal board
GV Fan group
P External plug
IMT* Magneto-thermal interruptor qitt
* Outside the machine, under installer’s
responsibility.
