Page 7
• Standard support brackets (A).
• Small parts packaging.
• Instructions manual.
Note: brackets for bottom hung (ref. C) and top hung (ref. D) windows have to be
requested apart.

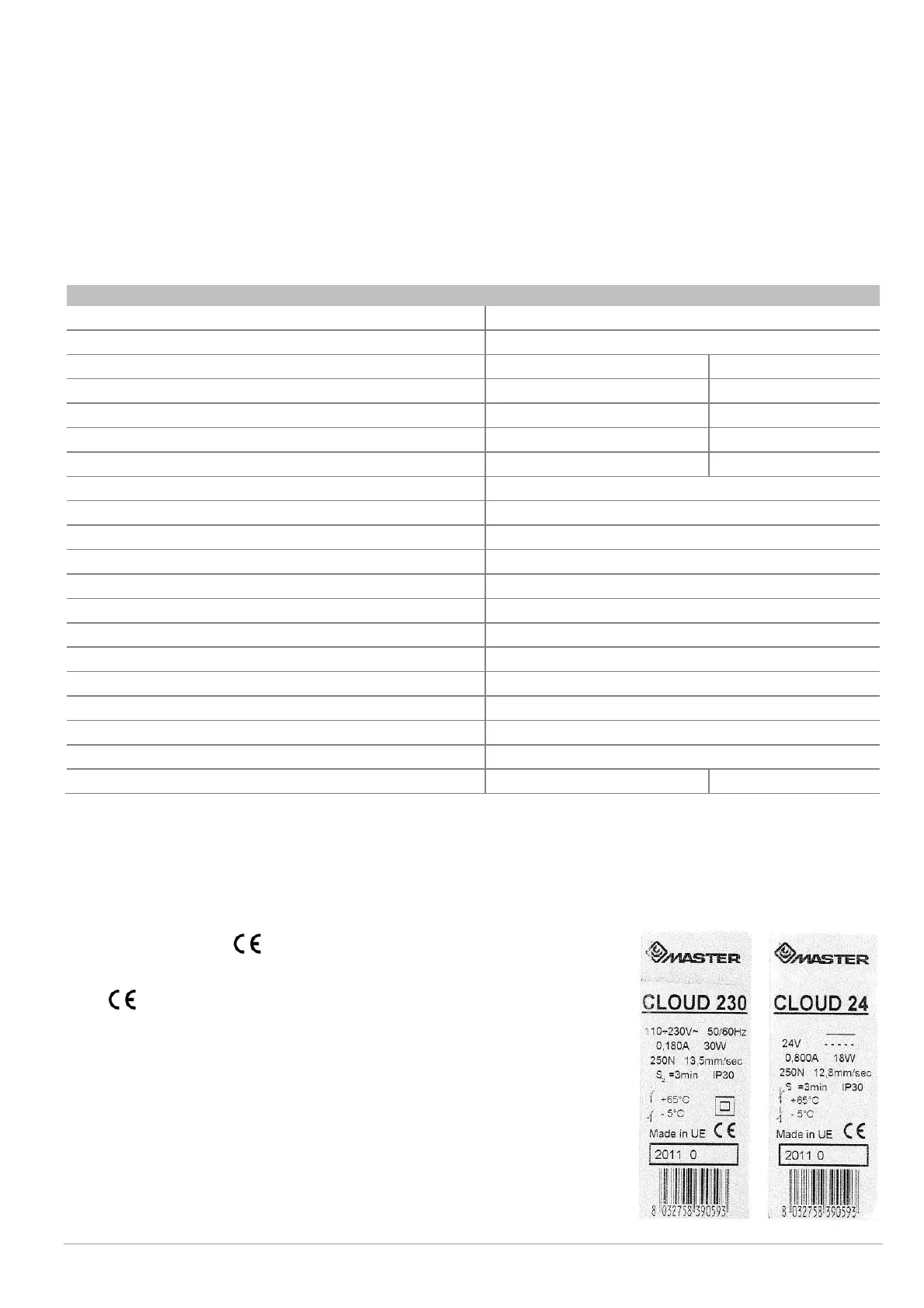

5. Technical data
Force exerted by thrust and traction 250 N
Strokes (can be selected at any time) 240, 360 mm
Power supply voltage 110÷230VAC 50/60Hz
24V DC
Rated absorbed current 0,180 A 0,800 A
Power absorbed at nominal load ~ 30 W ~ 18 W
Idle traverse speed 13,5 mm/s 12,8 mm/s
Duration of idle stroke (240-360 mm) 18 s – 27 s 19 s – 28 s
Double electrical insulation YES
Type of service S
of 3 min
Operating temperature - 5 + 65 ºC
Protection index for electrical devices IP30
Adjustment of connection to window frame
Automatic definition of position
Parallel powering of two or more motors YES (max 30 actuators)
Synchronised function Not foreseen
Static hold force 1500N
Stroke-end at opening At absorption of power
Stroke-end at closing At absorption of power
Length of power cable 1 m
Dimensions 356x56x33,5 mm
Weight 0,840 Kg 0,820 Kg
The data indicated in these figures is not binding and is subject to variation without notification.
6. ID plate and marking data
All actuators have marking and are destined for use in the
European Union without further requirements.
The marking on the product, packaging and indications for
use provided with the product indicate ‘presumed conformity to
the directives’ issued by the European Community.
The manufacturer holds the technical archive with
documentation providing that products have been examined
and evaluated for conformity to directives.
ID plate data are indicated on a polyethylene
adhesive label
applied externally on the outside of the container, printed in
black on a grey background. Values conform to EC
requirements in force. See figure for example of labelling.
