MASTERBLEND MASTERFORCE - PARTS BREAK DOWN (MF 503)

10
MASTERFORCE
MasterBlend (800) 525-9644

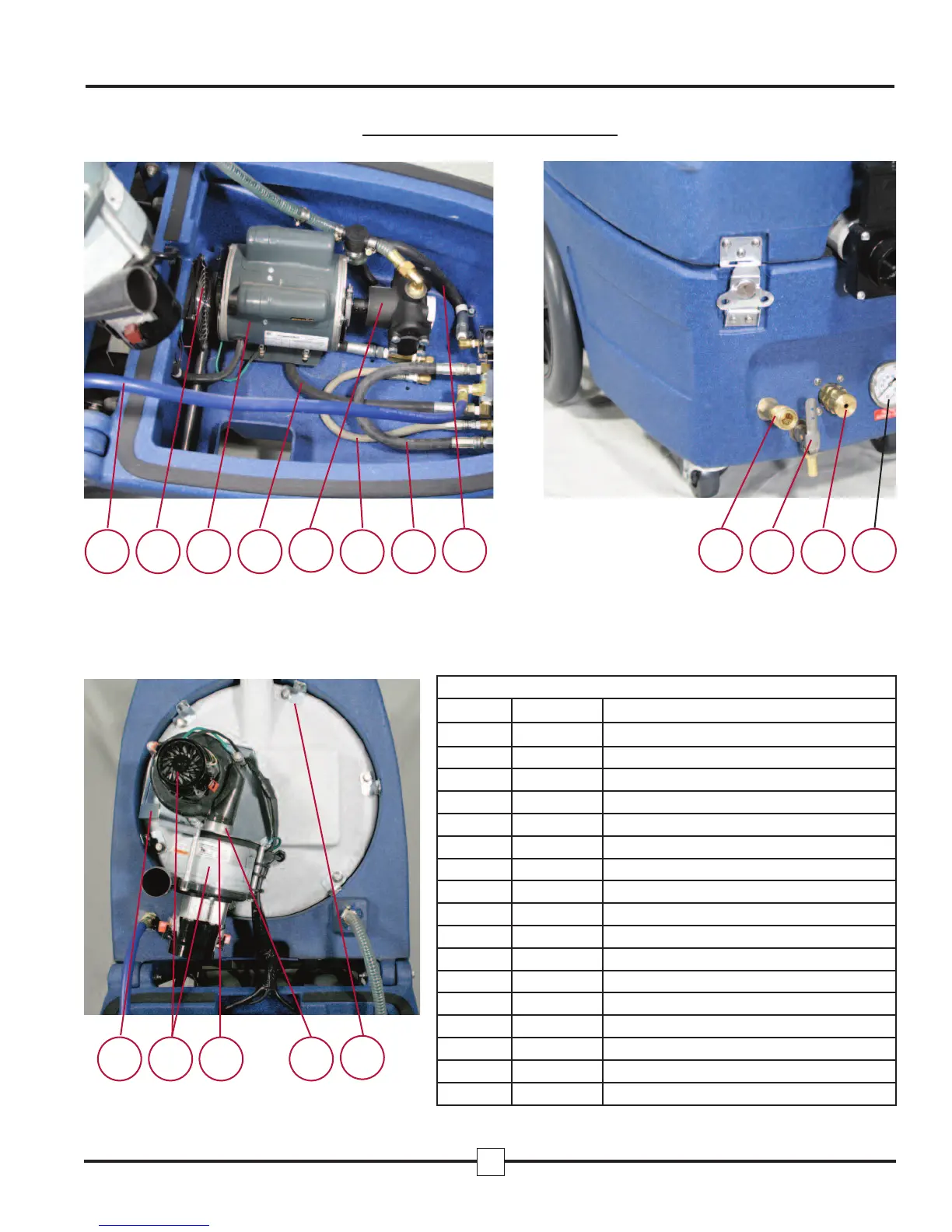

PARTS BREAK DOWN
50 52 45 49
46
47 48
51
MF 503
Ref # Part # Description
17 700101 Q.D. 1/4” Female - Brass
40 720414 503 Vac Motor - 3 Stage 120V
41 740405 MF Vac Manifold
42 740407 MF Recovery Tank Mount
43 740209 Vac Gasket
44 740043 Vac Motor 2” Intake Flange
45 726001 Motor 1/2 HP
46 720010 Hypro 5313 CHRX Pump
47 740195 Prime Valve Hose
48 721123 Pulse Hose 20” 1/4m x 1/4m
49 721223 Pulse Hose 22” 3/8m x 1/4m
50 740423 MF Hose/HP Bypass
51 721221 Pulse Hose 20” 3/8m x 1/4F
52 740219 Axial Fan
53 721113 Power Prime Valve
54 715022 500 Regulator
55 719002 Pressure Guage 1000 PSI
17
53 54
55
41 40 43 44
42
