PARTS LIST
REPLACEMENT PARTS LIST
STOP!
DO NOT RETURN TO RETAILER For Assembly Assistance, Missing or Damaged Parts
Call: MASTERBUILT Customer Service at 1-800-215-7204.
Please have Model Number and Serial Number available when calling.
These numbers are located on silver label on back of unit.
PART NO. REPLACEMENT PART ITEM NO. PART NO. REPLACEMENT PART ITEM NO.
1 Platinum Outer Shell (23013115) 9901160001 Lid Handle Kit 9901130004
2 Lid Kit 9901130006 Rubber Foot Kit 9901130005
3 Turkey Basket 9001100012 Instruction Manual 9801160007
4 Inner Pot w/ Valve 9901130008 Cook booklet 9801160027
5 Inner Pot Support Kit 9901090018 Fryer Basket Divider Kit 9901160003
6 Double Lifting Hook 9001090020 Blue Outer Shell (23013215) 9901160004
7 Contol Panel w/ Element 9001160005 Red Outer Shell (23013315) 9901160005
8 Safety Cap & Seal Kit 9901100001 Onyx Outer Shell (23013415) 9901160006
9 Valve Spout Kit 9901090009 Copper Outer Shell (23013515) 9901160007
10 Break-away Cord 9001150010

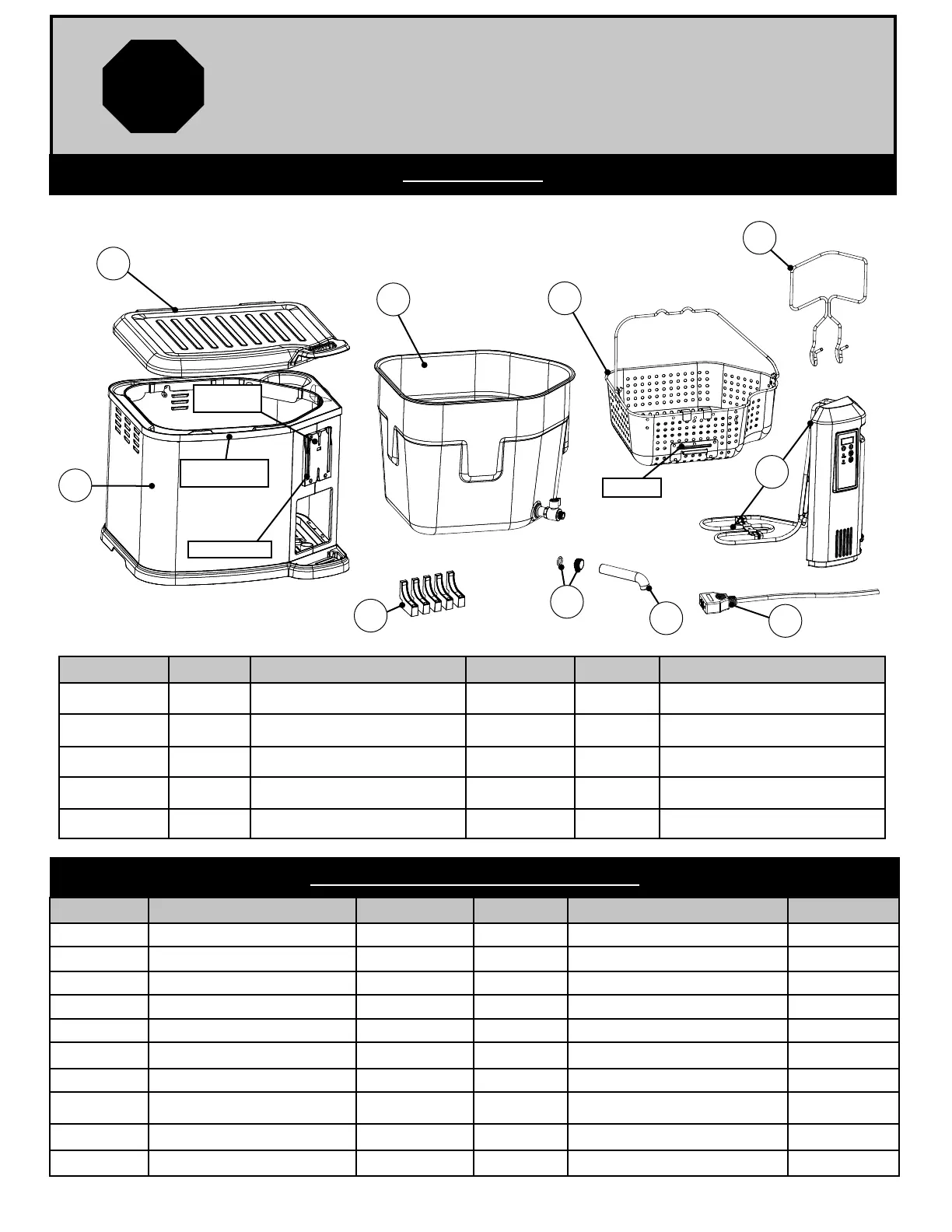

2
1
Drain Clip
Drain Clip
Mounting Hole
Mounting
Bracket
4
3
6
7
10
9
8
5
Safety Switch
PART NO. QTY DESCRIPTION PART NO. QTY DESCRIPTION
1 1 Outer Shell 6 1 Double Lifting Hook
2 1 Lid 7 1 Control Panel w/ Element
3 1 Turkey Basket 8 1 Safety Cap & Seal
4 1 Inner Pot w/ Valve 9 1 Valve Spout
5 5 Inner Pot Supports 10 1 Break-away Cord
