20 www.mastercool.com
COMMANDER4100
COMMANDER4100-E / COMMANDER4100-E-X

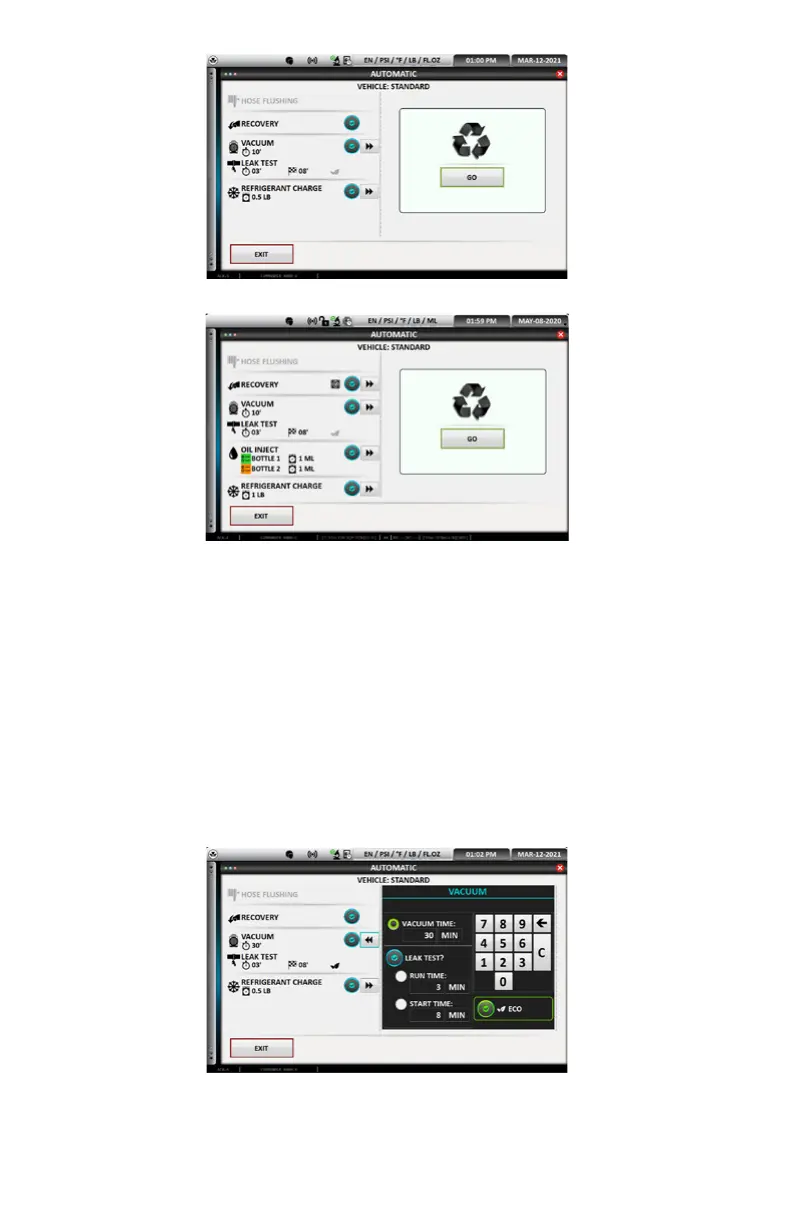

• HOSE FLUSH (IN HYBRID MODE ONLY): This process will flush the machine of any residual oil that
is not compatible with hybrid R1234yf systems. Follow the instructions on the screen
1. Connect the red and blue hoses to the flush / storage fittings on the side of the machine.
2. Open the couplers by turning the knobs clockwise.
3. Open the red and blue valves on the machine. Press next.
4. The flush cycle will now be performed.
5. Flush complete will be displayed when finished .
6. Disconnect couplers and attach them to the vehicle AC system.
• RECOVERY: This procedure is preprogrammed. It cannot be changed in automatic mode.
NOTE: Before recovery begins the machine will automatically go through the identification process
• VACUUM: To set the desired amount of vacuum time, press the >> to the right. Set vacuum time on
the keypad, press << to lock in time
