COMMANDER4100-E / COMMANDER4100-E-X

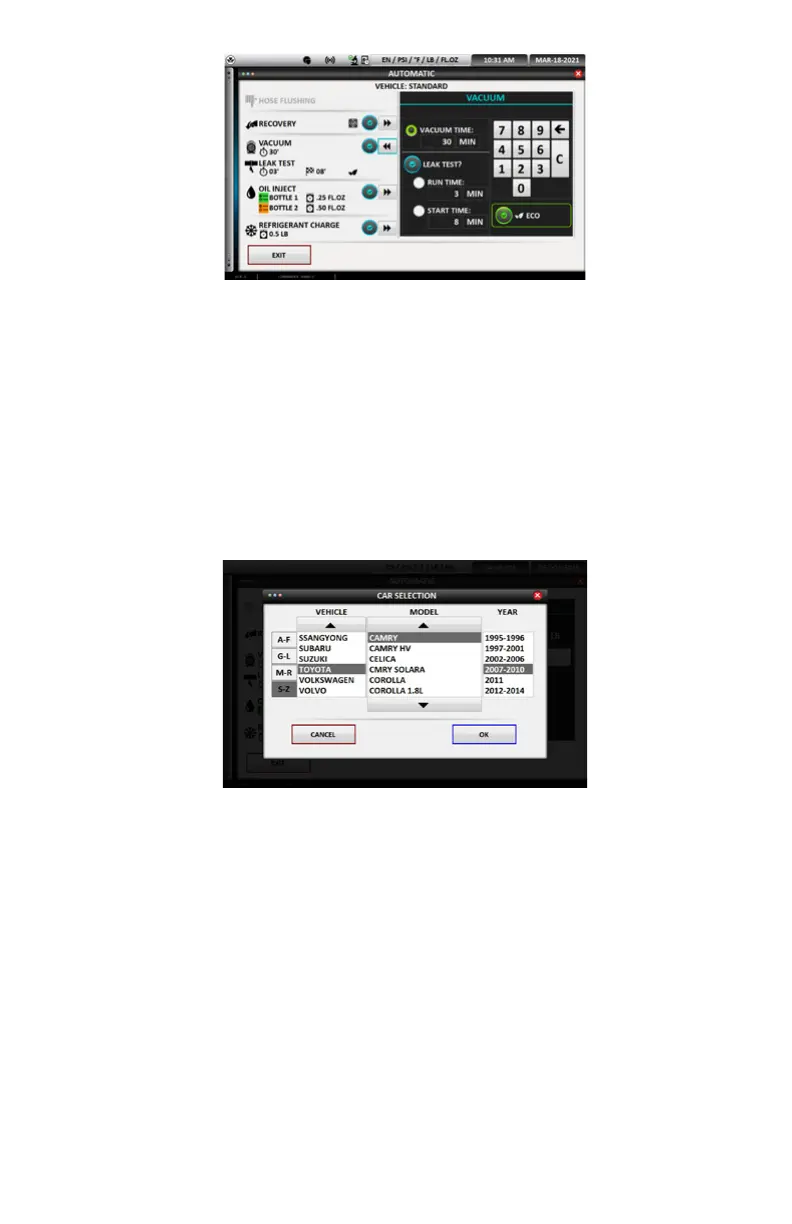

ECO: If the vacuum time is at least 30 minutes, then the eco option is available. When the eco option
is activated the vacuum pump is turned off while performing the leak test to save vacuum pump oil
life.
LEAK TEST: Vacuum leak testing is available when the vacuum time is 10 minutes or longer. Set the
amount of time the leak test will run. Set the time at which the leak test should start.
• REFRIGERANT CHARGE: Press the >> to set the refrigerant charge. Use the keypad to set charge or
choose the Database function
o Database function: Allows the user to choose the refrigerant charge based on the make,
model and year of vehicle. Press “Lookup” and choose the correct make year and
model. The refrigerant charge will be automatically programmed.
NOTE: The Caution symbol will appear if the programmed charged amount exceeds the available
amount. To add refrigerant, refer to tank filling.
NOTE: Press the “C” on the keypad to clear any value to enter a new value
NOTE CONCERNING THE DATABASE: We have taken all due care in gathering and entering
information contained in the database. The database data may nevertheless be considered purely as
a reference, the manufacturer declines any and all responsibility for incorrect data.
To know for certain the charge amount look for the refrigerant label on the vehicle or call the
manufacturer of the vehicle and request the charge amount.
TO BEGIN THE AUTOMATIC PROCEDURE PRESS “GO” ON THE COMMAND CENTER SCREEN. The
COMMANDER4100 is now ready to recover, vacuum, vacuum leak check (if vacuum is set for 10 minutes or
longer) and charge the programmed amount of refrigerant.
Connect the couplers to the vehicle
The COMMANDER4100 will now instruct to connect the couplers to the vehicle.
