E

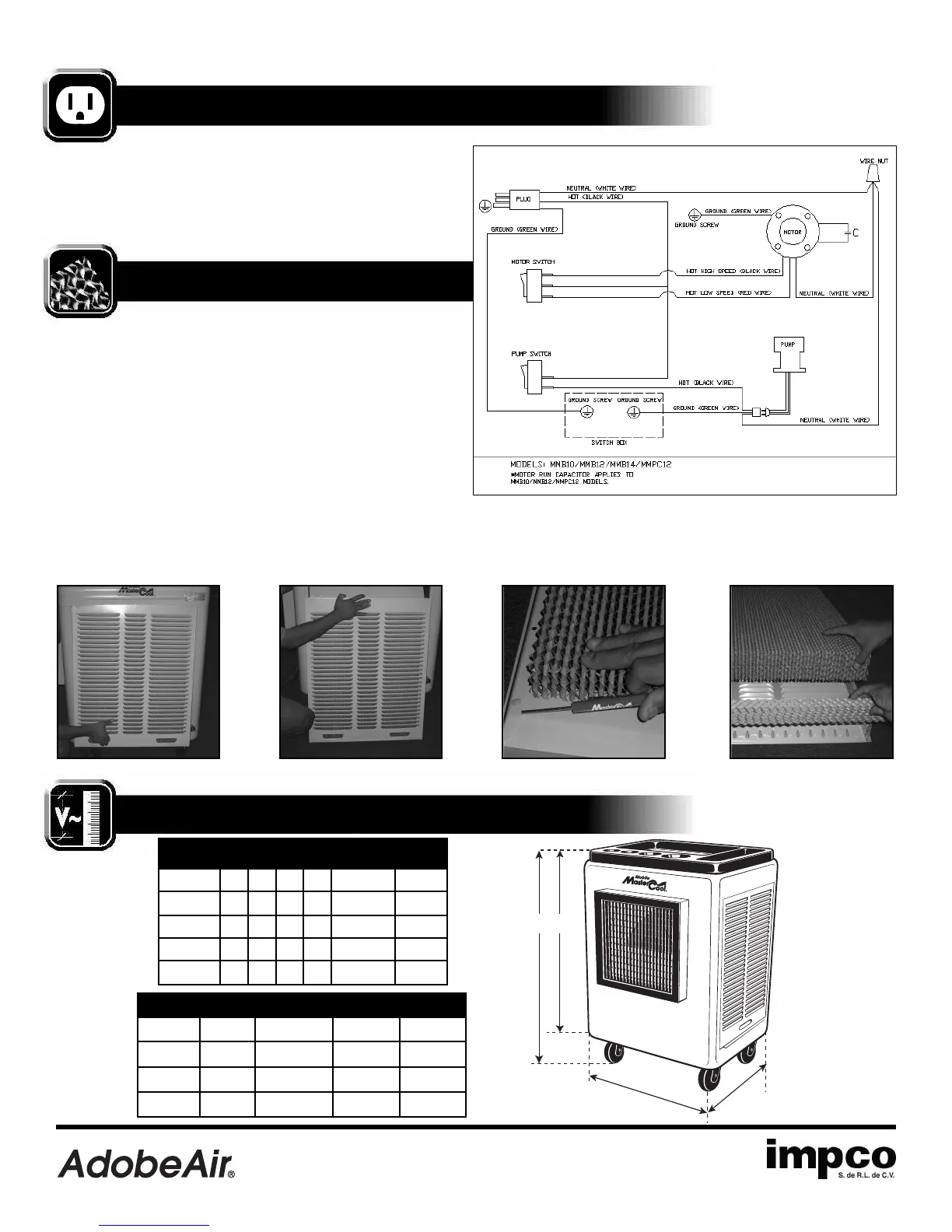

lectrical wiring on your unit is not required as the unit has
been wired at the factory. For your future reference, the wiring
diagram in Figure 7 shows rocker switches, two-speed motor,
capacitor and pump.
ELECTRICAL
F
igure 7
COOLING PAD REPLACEMENT
SPECIFICATIONS AND DIMENSIONS
Model Motor Frequency Volts Current
MMB10 1/8 HP 60 Hz 120 3.0 Amps
MMB12
1/3 HP 60 Hz 120 5.5 Amps
MMB14
1/2 HP
60 Hz
120
7.5 Amps
MMPC12 1/3 HP 60 Hz 120 5.5 Amps
Model Dimensions (in)
Water Shipping
Capacity Weight
ABCD
MMB10 22 20 27.5 32.7 6.4 Gallons 60 lb
MMB12 26.5 25 33 38.7 7.2 Gallons 119 lb
MMB14 34 31 35.4 41 14.5Gallons 130 lb
MMPC12
26.5 26 31 35.7 7.2 Gallons 95 lb
D C
A
B
Picture 7
Picture 8
Picture 9
Picture 10
The cooling pads should be changed at least every two years.
Check and clean them at the beginning of the season and
clean and reverse them in the middle of the season. The pads
may need to be replaced more frequently depending on local
conditions and the maintenance schedule followed.
Replacement Instructions:
To remove pad assemblies from the unit, lift up, pull out and then
down. Lay the metal side down on a flat surface and remove the
pad retainers. The MasterCool pad can now be removed. Rinse
off pad assembly, then install new MasterCool pad and retainer.
Replacement filter pads are available at your cooler dealer. See
pictures 7-10.
