MasterCraft 054-2015-6 User Manual

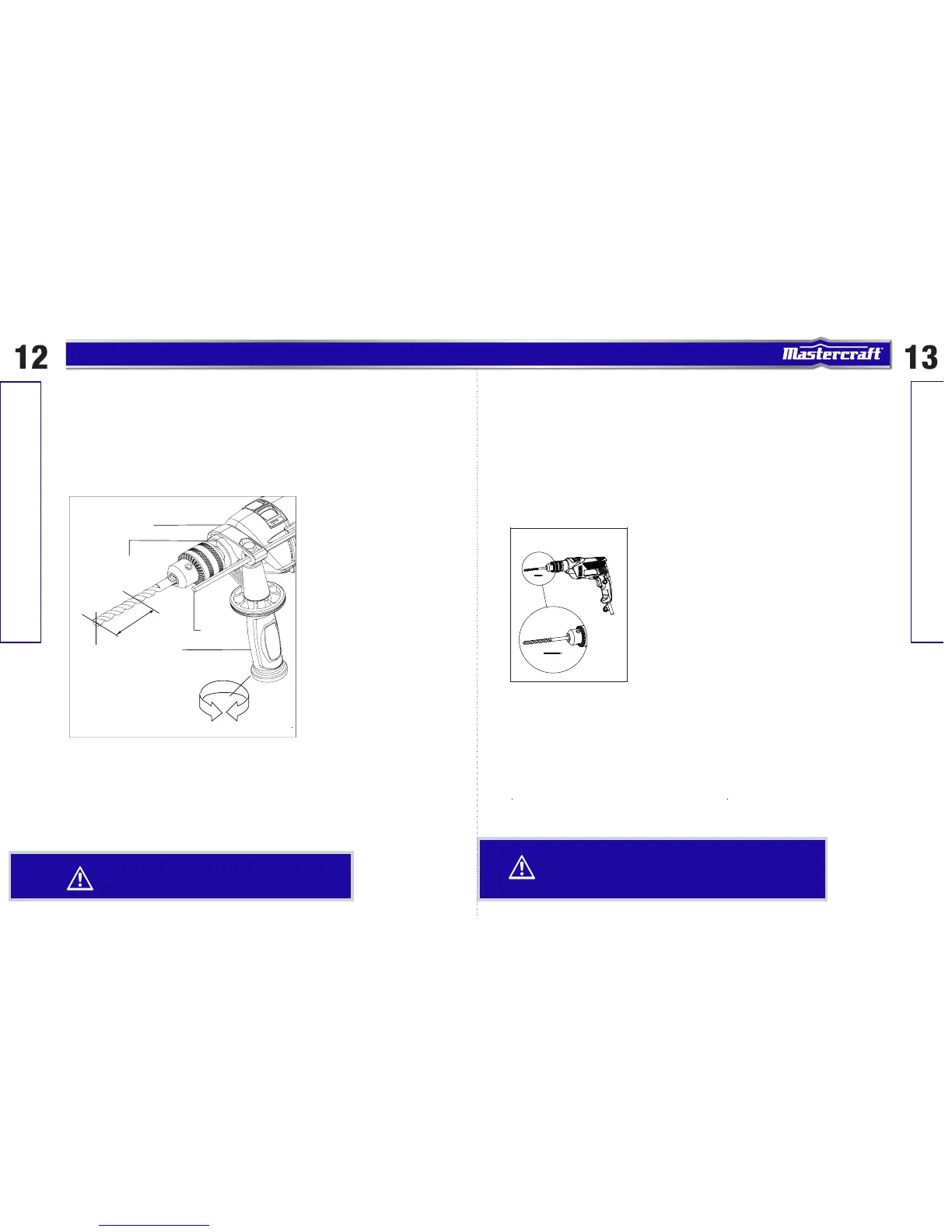

Auxiliary handle (Fig. 4)
The tool must be supported with the auxiliary handle, which can be swiveled and locked into 12 positions
360° around the collar mount.
To reposition and/or swivel the handle, rotate lower portion of hand grip counter-clockwise, push handle
forward until it disengages from locking teeth in the collar mount, move handle to the desired position
and push handle inward until it engages, then securely tighten hand grip clockwise.
Depth gauge (Fig.4)
Your drilling depth can be pre-set and/or repeated by using the depth gauge.
Setting depth: After the auxiliary handle is installed, make sure the accessory has been fully inserted into
the chuck before setting the depth gauge (Fig. 4). To adjust depth, rotate lower portion of handgrip
counter-clockwise to loosen depth gauge, slide depth gauge to desired position and securely tighten
hand grip clockwise (Fig. 4).
Fig. 4
Collar mount
Locking teeth
Hand grip
Clockwise
Counter-
Fig. 5
Installing bits (Fig. 5)
1. Unplug the hammer drill from the power source.
2. Open the chuck jaws by turning the sleeve in a counterclockwise direction until the opening is
slightly larger than the bit you intend to use, and raise the front of the drill slightly to keep the bit
from falling out of the chuck jaws.
3. Insert the drill bit into the chuck.
4. Tighten the sleeve by hand.
5. Place the chuck key in one of the three chuck key holes and tighten in clockwise direction. Repeat
with the remaining two chuck key holes.
6. Remove the chuck key.
Removing bits (Fig. 6)
1. Unplug the hammer drill from the power source.
2. Place the chuck key in one of the three chuck key holes and loosen the chuck by turning in a
counterclockwise direction.
3. Remove the chuck key.
4. Loosen the sleeve by hand.
5. Remove the drill bit.
OPERATION INSTRUCTIONS
INSERT THE DRILL BIT STRAIGHT INTO THE CHUCK JAWS. INSERTING THE DRILL BIT INTO THE CHUCK
JAWS AT AN ANGLE AND THEN TIGHTENING THE CHUCK AND USING THE DRILL COULD
CAUSE THE DRILL
BIT TO BE THROWN FROM THE HAMMER DRILL, RESULTING IN POSSIBLE SERIOUS PERSONAL INJURY
WARNING:
WARNING:
IT IS IMPORTANT TO TIGHTEN THE CHUCK WITH ALL THREE KEY HOLES TO PREVENT SLIPPAGE.
OR DAMAGE TO THE CHUCK.
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
model no.054-2015 l contact us 1.800.689.9928
clockwise
Depth gauge
D
ril
l
i
n
g d
ept
h
