RIGHT/LEFT SWITCH
The Compact Cordless Screwdriver is
equipped with a convenient switch that
functions as both an ON/OFF switch and a
right/left switch.
1. To drive screws, press the upper part
of the switch (1) (Fig. 3). To turn the
switch OFF, release the switch.
2. To remove screws, press the lower
part of the switch (2).
SCREWDRIVER LIGHT
The cordless screwdriver is equipped with
a LED light (1) (Fig. 4). The light will
automatically turn ON when the switch is
pressed. It will also turn OFF when the
switch is released.
PREPARING SCREW HOLES
It is important to prepare screw holes
before attempting to fasten two pieces of
wood together. Proper preparation will
make screws drive easier and prevent
misaligned components, stripped screw
heads, splitting and separating of wood
components.
1. Clamp components that are to be
screwed together in their desired
position (Fig. 5).
2. Drill a pilot hole (1) through the outer
piece (2) and into the inner piece (3).
Drill hole 2/3 the diameter of the
smooth portion of the screw shank.
NOTE: If the wood is soft, drill the hole
2/3 the length of the screw. If the wood
is hard, drill the hole the full length of
the screw.
3. Remove the clamp from the two pieces
to be screwed together.
4. Enlarge the hole (1) in the outer piece
(2) so it is the same size as the
smooth portion of the screw shank
(Fig. 6).
5. If using a flat head screw, counter-sink
the hole (4) so the head of the screw
will be flush with the surface when fully
driven into place.

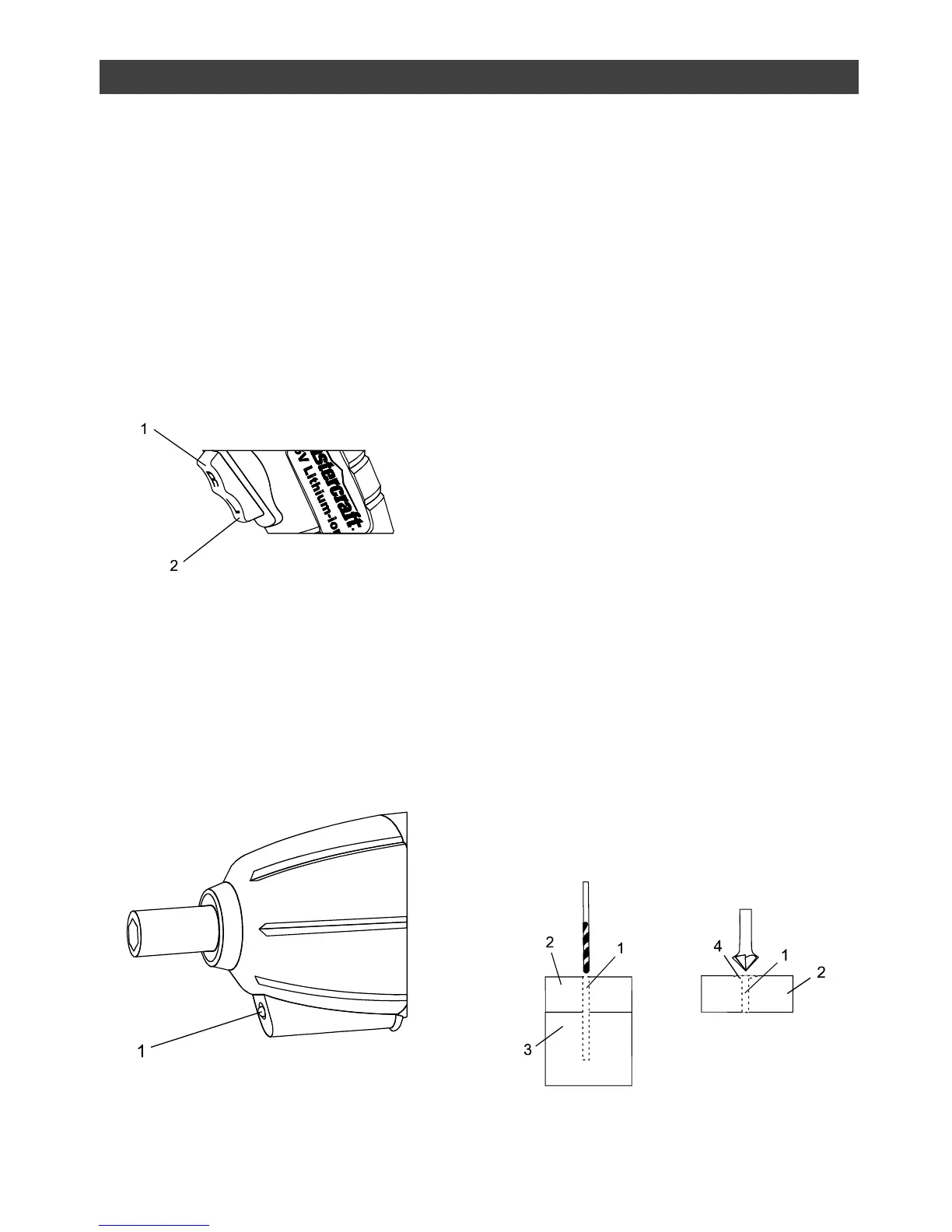

ASSEMBLY & OPERATION INSTRUCTIONS
Fig. 5
Fig. 6
Fig. 4
Fig. 3
