To attach the battery pack (fig 1)
WARNING!
To avoid the possibility of accidental
starting, always take care not to
activate the trigger switch when you are
attaching the battery pack or performing
other adjustments to the tool.
1. Lock the trigger switch on the impact driver
by placing the direction-of-rotation selector
(forward/centre lock/reverse) in the centre position.
2. Align the raised rib on the battery pack with the grooves of the impact driver, and then attach the
battery pack to the impact driver.
3. Make sure that the latch on the battery pack snaps into place, and that the battery pack is attached
securely to the tool before beginning operation.
NOTICE:When placing a battery pack on the tool, be sure that the raised rib on the battery pack
aligns with the groove on the cordless impact driver and the latches snap into place properly. Improper
assembly of the battery pack can cause damage to internal components.
To detach the battery pack (fig 1)
1. Lock the trigger switch on the impact driver by placing the direction-of-rotation selector (forward/
centre lock/reverse) in the centre position.
2. Depress the battery-release button located on the front of the battery pack to release the battery
pack.
3. Pull the battery pack out and remove it from the tool.

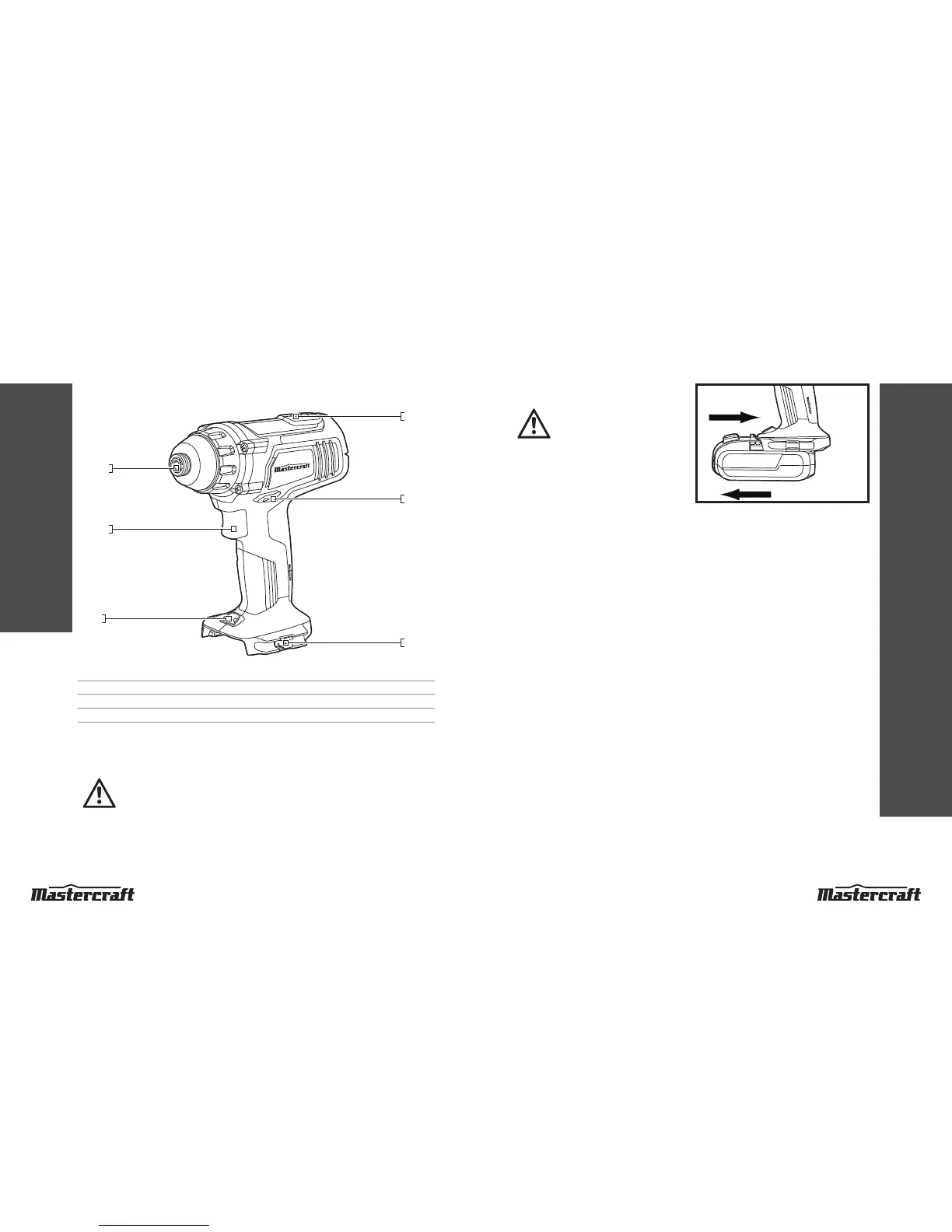

Know your tool
1
2
4
3
6
5
No. Description No. Description
1 Sleeve 4 LED Worklight
2 Variable-speed Trigger Switch 5 Bit Clip
3 Direction-of-rotation Selector 6 Forward/reverse LED indicator
Before attempting to use this tool, become familiar with all of its operating features and safety
requirements. For optimum performance and safety, read the following operating instructions carefully
before using.
WARNING!
Do not allow familiarity with the Cordless impact driver to cause a lack of alertness. A
fraction of a second of carelessness is enough to cause severe injury.
DESCRIPTION
OPERATING INSTRUCTIONS
fig 1
Attach
Detach
