MasterCraft 054-3179 User Manual

CORDED HAMMER DRILL WITH 50-PIECE ACCESSORY KIT - 054-3179-0CORDED HAMMER DRILL WITH 50-PIECE ACCESSORY KIT - 054-3179-0
19 20

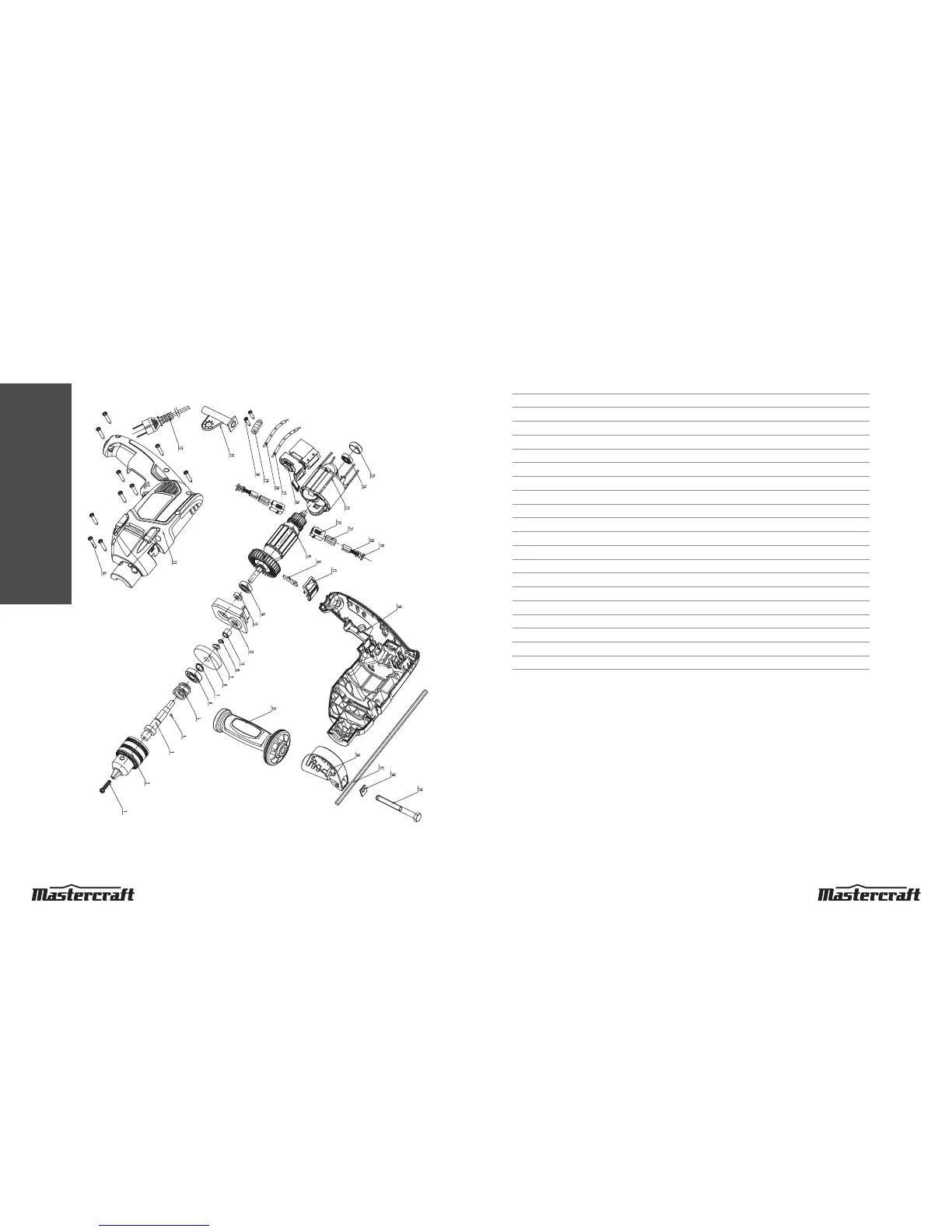

Exploded view
     
1 543179001 Screw 21 543179021 Copper Brush Holder
2 543179002 Chuck 22 543179022 Brush Holder Box
3 543179003 Output Shaft 23 543179023 Stator
4 543179004 Steel Ball 24 543179024 Ball Bearing
5 543179005 Spring 25 543179025 Bearing sleeve
6 543179006 Ball Bearing 26 543179026 Switch
7 543179007 Circlip 27 543179027 Wire (white)
8 543179008 Gear 28 543179028 Wire (black)
9 543179009 Washer 29 543179029 Cable Pressing Board
10 543179010 Retaining Ring 30 543179030 Screw
11 543179011 Oil Bearing 31 543179031 Cable Jacket
12 543179012 Bracket 32 543179032 Cable & Plug
13 543179013 Sealing Ring 33 543179033 Right Housing
14 543179014 Ball Bearing 34 543179034 Screw
15 543179015 Rotor 35 543179035 Handle
16 543179016 Change Piece 36 543179036 Handle Support
17 543179017 Impact Button 37 543179037 Depth Gauge
18 543179018 Left Housing 38 543179038 Pressure plate
19 543179019 Brush Holder Box Cover 39 543179039 Hex Bolt
20 543179020 Carbon Brush
 

PARTS LIST PARTS LIST

MasterCraft 054-3179 Specifications

General

Brand	MasterCraft
Model	054-3179
Category	Drill
Language	English
