CORDED HAMMER DRILL WITH 50-PIECE ACCESSORY KIT - 054-3179-0CORDED HAMMER DRILL WITH 50-PIECE ACCESSORY KIT - 054-3179-0
9 10
WARNING!
Never connect the hammer drill to the power source when you are assembling parts,
making adjustments, installing or removing bits, cleaning, or when it is not in use.
Disconnecting the hammer drill will prevent accidental starting, which could cause serious
personal injury.
Variable-speed trigger switch
(fig 1)
1. Connect the power cord of your hammer drill
to a standard household power outlet.
2. To turn the hammer drill ON, press the trigger
switch.
3. To turn the hammer drill OFF, release the
trigger switch.
4. The variable-speed trigger switch delivers
higher speed with increased trigger pressure and lower speed with decreased trigger pressure.
Lock-on button (fig 2)
This hammer drill is equipped with a lock-on
button, which is convenient for continuous drilling
for extended periods of time.
1. To drill continuously, press and hold the trigger
switch and then press the lock-on button.
Release the trigger switch.
2. To unlock the lock-on button and stop
continuous drilling, press the trigger
switch and the lock-on button will release
automatically.

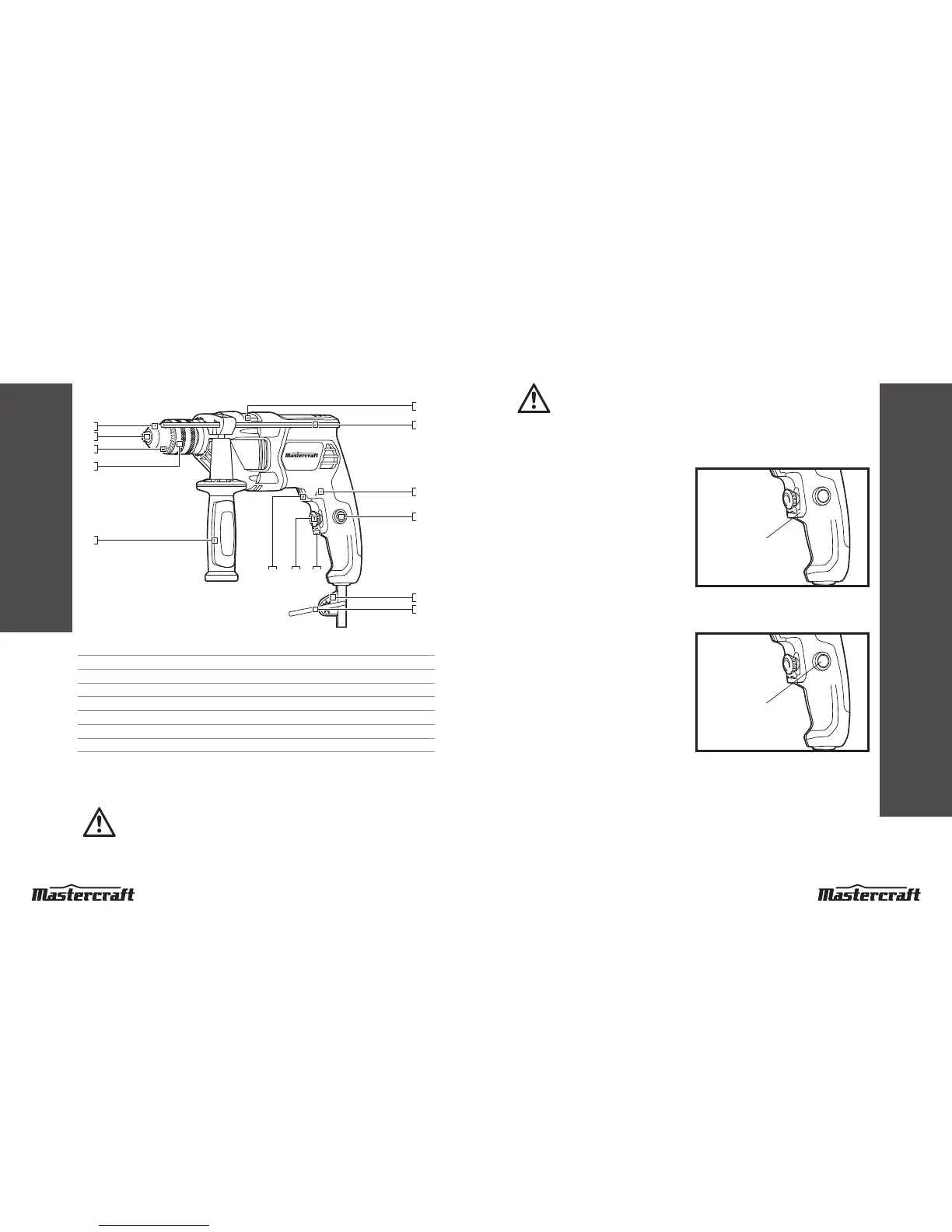

Know your tool
1
2
13
3
10
4
5
6
7
14
8
9
1112
1 Chuck jaws 8 Chuck key
2 Chuck 9 Chuck-key strap
3 Chuck-key holes 10 Variable-speed trigger switch
4 Chuck sleeve 11 Speed adjustment dial
5 Hammer/drilling selection switch 12 Direction-of-rotation lever
6 Depth-stop gauge 13 Auxiliary handle
7 Lock-on button 14 Primary handle
Before attempting to use this tool, become familiar with all of its operating features and safety
requirements. For optimum performance and safety, read the following operating instructions carefully
before using.
WARNING!
Do not allow familiarity with the hammer drill to cause a lack of alertness. A fraction of a
second of carelessness is enough to cause severe injury.
DESCRIPTION
OPERATING INSTRUCTIONS
fig 1
Variable-speed
trigger switch
fig 2
Lock-on button
