12
model no. 054-4289-2 | contact us 1-800-689-9928

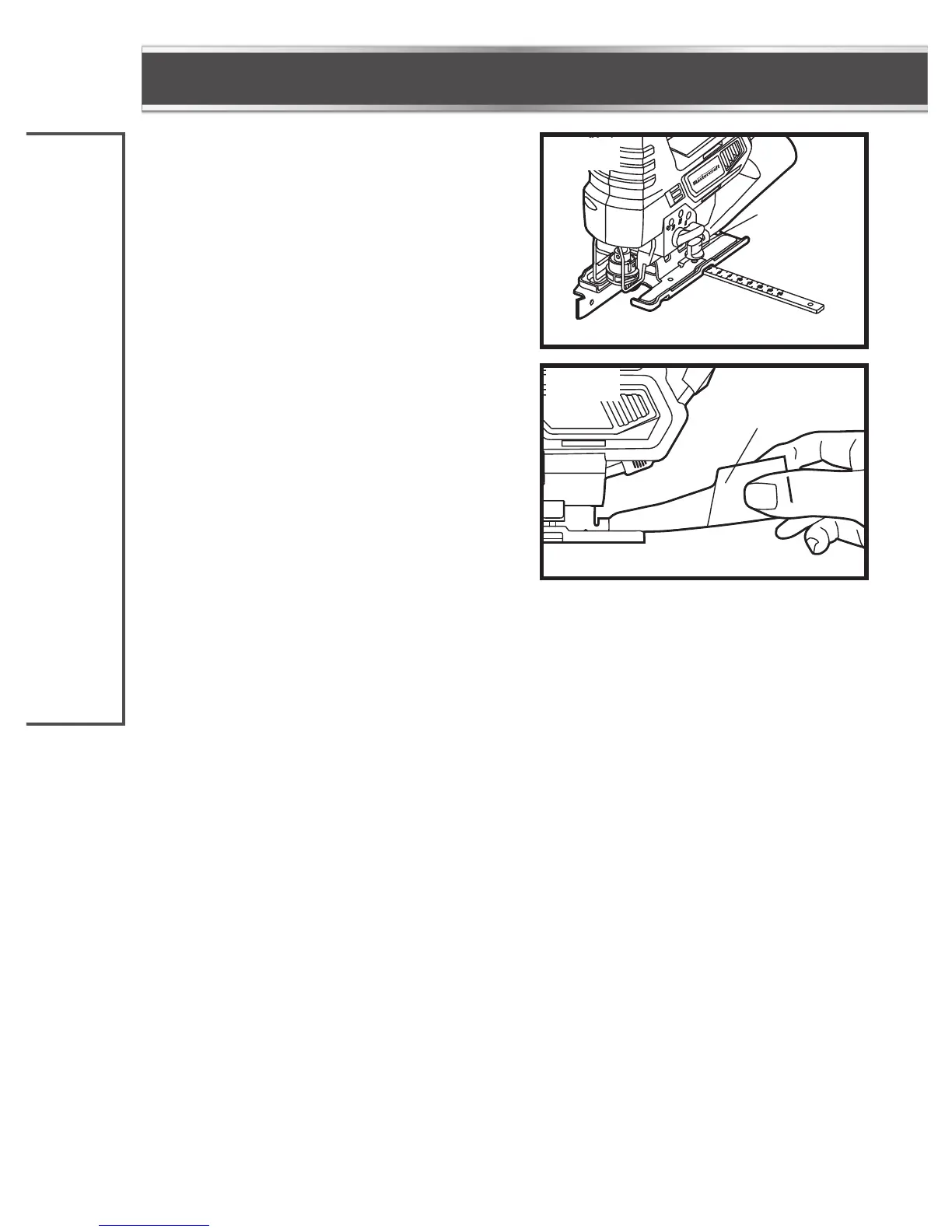

INSTALLING THE STRAIGHT EDGE
GUIDE
(fig 4)
1. Loosen the edge-guide locking knob.
2. Insert the bar of the edge guide through the slots in the
base of the jigsaw with the edge guide facing down.
The edge guide can be inserted from either side of the
base.
3. Measure the distance from the edge of the workpiece
to the line of the cut. Slide the edge guide to this
desired distance and tighten the locking knob to secure
the edge guide in place.
DUST EXTRACTION
(fig 5)
To use this feature, attach extraction tube to the base
plate.
ASSEMBLY INSTRUCTIONS
fig 4
Edge-guide
locking knob
fig 5
Dust
Extraction
