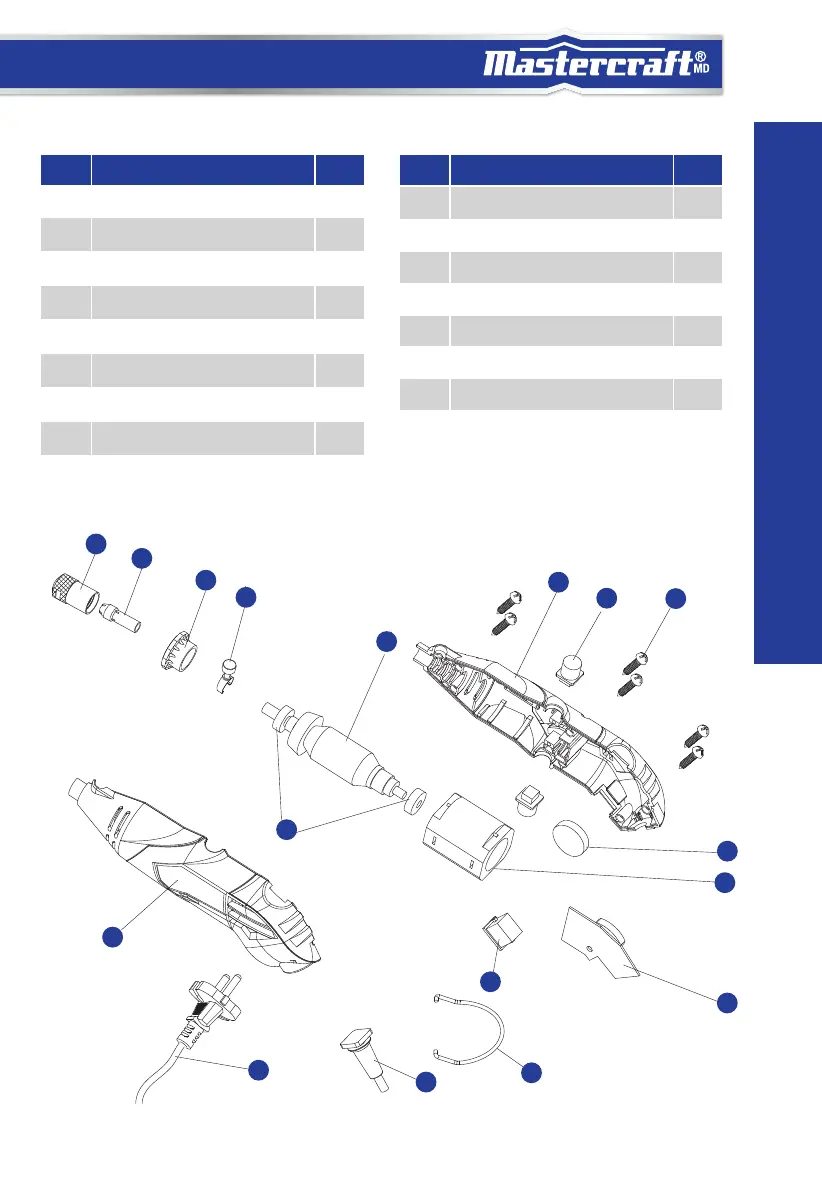

PARTS LIST
PARTS LIST
1
2
3
4
6
8
9
9
10
11
12
13
14
15
16
17
19
No. Description Qty.
1 Collet nut 1
2 Collet 1
3 Nose cap 1
4 Spindle lock button 1
6 Bearing 2
8 Rotor 1
9 Left/right housing 1
10 Carbon brush set (pair) 1
11 Screw 6
No. Description Qty.
12 Variable speed botton 1
13 Stator 1
14 PCB 1
15 Switch 1
16 Hanger 1
17 Cord sleeve 1
19 Power cord 1
