model no. 054-8392-0 | contact us 1-800-689-9928
16

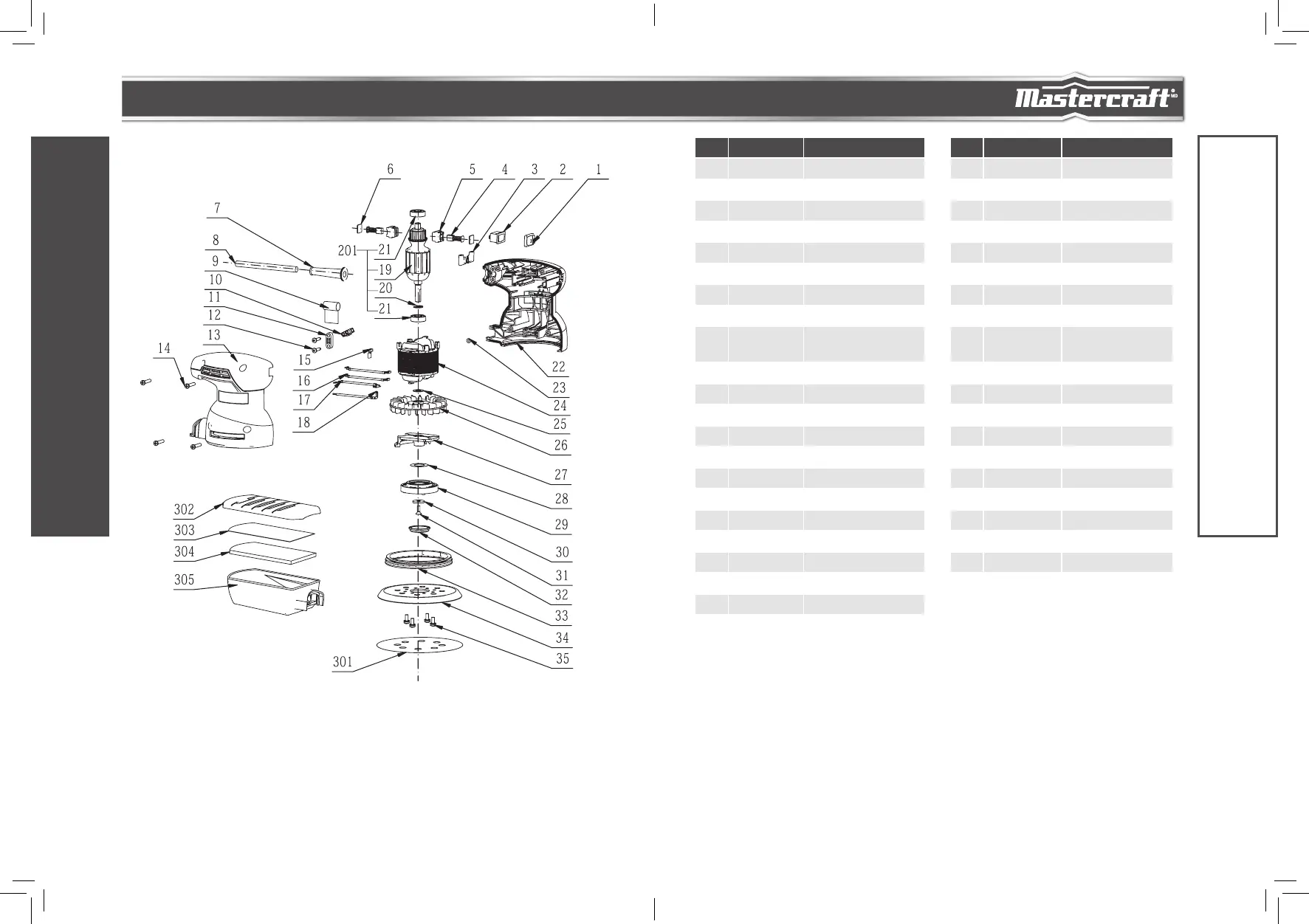

EXPLODED VIEW
No. Part No. Description No. Part No. Description
1 3127055000 Switch cover 21 5700008000 Ball bearing
2 4870051000 Switch 22 3126439000 Left housing
3 4930008000 Sleeve 23 5690013000 O ring
4 4960273000 Carbon brush 24 2740099000 Stator
5 2800176000 Brush holder 25 3700415001 Gasket
6 3700490000 Epoxy board 26 3402301000 Dust fan
7 3121011000 Cord guard 27 3421477000 Counterweight
8 4810002000 Power cord and plug 28 5650041000 Plain washer
9 2490136000 Nylon string 29 3402638000 Bearing support
assembly
10 4930004000 Connecter 30 3700090000 Washer
11 3120234000 Cord anchorage 31 5620069000 Screw
12 5610024000 Tapping screw 32 3127058000 Bearing clamp
13 3126493000 Right housing 33 3127158000 Brake ring
14 5610106000 Tapping screw 34 2823602000 Base pad
15 4930041000 Receptacle 35 5620342000 Screw with washer
16 4860298000 Internal wire assembly 301 3810300000 Sanding paper
17 4860302000 Internal wire assembly 300 2821986000 Dust box assembly
18 4860299000 Internal wire assembly 303 3700979000 Dust filter paper
201 2824316000 Rotor set 304 3700981000 Sponge
19 2751034000 Rotor 305 3121373000 Dust box
20 5660029000 E ring
If any parts are missing or damaged, or if you have any questions, please call the toll-free helpline,
at 1-800-689-9928.
PARTS LIST
PARTS LIST
