MasterCraft 055-4504-8 User Manual

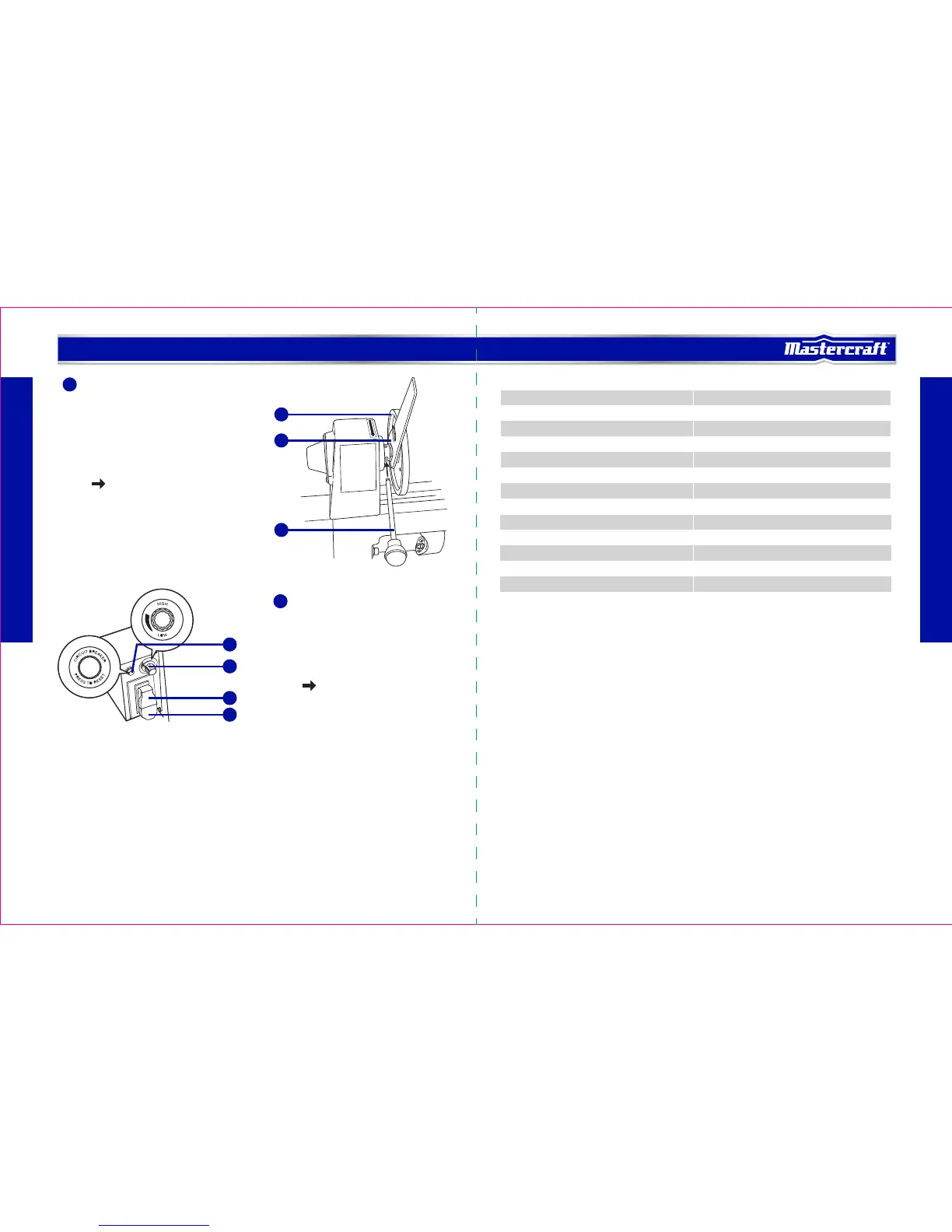

• After the lathe is started, turning the knob
clockwise will increase spindle speed (to
the maximum RPM). Turning the knob
counter-clockwise will decrease spindle
speed (to the minimum RPM).
• Adjust the knob until the desired workpiece
rotation speed is reached.
see page 19
• When installing the faceplate (1), thread it onto
the end of the headstock spindle and hand
tighten.
• Place the wrench (2) over the flats on the
faceplate.
• Insert the tip of the push-out rod (3) into one
of the slots in the side of the headstock
spindle.
see page 17
1
model no. 055-4504-8 | contact us 1-800-689-9928
SPECIFICATIONS
Motor
Speeds
Switch
Distance between centres
Swing-over bed
Drive spindle
Drive spindle through hole
Tailstock spindle through hole
Tailstock spindle travel
Headstock spur
Tailstock centre
Overall dimensions
Weight
120 V AC, 60 Hz, 3 A, 1/3 HP
500-3500 RPM
Removable key type
12" (30 cm)
8" (20 cm)
1" (2.5 cm) 8 TPI thread
3/8" (10 mm)
3/8" (10 mm)
1 1/2" (4 cm)
Spur centre, Morse #1 taper
Ball bearing cap centres, Morse #1 taper
30 5/8 x 4 13/16 x 13 1/2" (77.8 x 12.2 x 34.3 cm)
43 lb (19.6 kg)
5
SPECIFICATIONS
4
QUICK START GUIDE
2
1
2
3
1
3
2
4

MasterCraft 055-4504-8 Specifications

General

Brand	MasterCraft
Model	055-4504-8
Category	Lathe
Language	English
