Mitre Angle Pointer Adjustment
• Move the table to the 0° positive stop.
• Loosen the screw (4) that holds the indicator with a star-head screwdriver.
• Adjust the indicator (3) to the 0° mark and retighten the screw.
ADJUSTING FENCE SQUARENESS
•
Lower the cutting head and lock in position.
• Remove the fixing screws and then pull out the left
and right upper sliding fences (2). Four fence locking
bolts (1) will appear.
• Lower the cutting head and lock it in position.
• Using a square (3), lay the heel of the square against
the blade and the ruler against the fence (2) as shown.
• Loosen the four fence locking bolts with a 4 mm hex
wrench.
• Adjust the fence 90° to the blade and then tighten the
four fence locking bolts.
• After fence has been aligned, make a cut at 90° using
a scrap piece of wood and check squareness on the piece. Readjust if necessary.
BEVEL STOP ADJUSTMENT
This tool is carefully adjusted and aligned at the factory, but rough handling may have affected the
alignment. If your tool is not aligned properly, perform the following as needed.
1
2
4
3
WARNING!
To avoid injury from an accidental start, make sure the switch is in the OFF position and the plug
is not connected to the power source outlet.
WARNING!
To reduce the risk of injury, wear safety goggles or glasses with side shields.

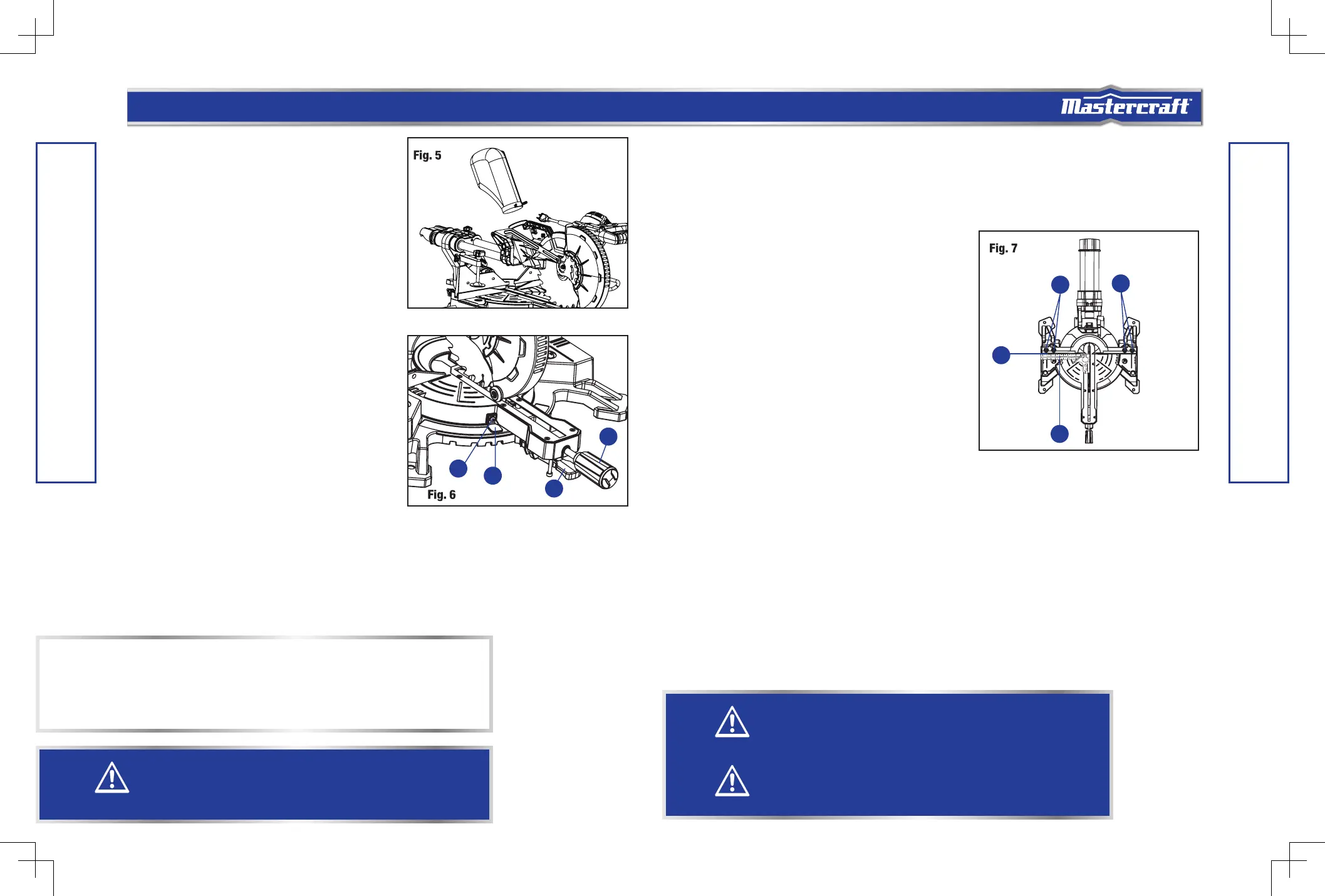

INSTALLING THE DUST BAG
• Squeeze the metal collar wings on the dust bag.
。• Place the dust bag neck opening around the exhaust
port on the mitre saw and release the metal collar
wings.
MITRE SCALE
The sliding compound mitre saw scale can be easily read,
showing mitre angles from 0° to 45° to the left, and 0°
to 45° to the right. The mitre saw table has nine of the
most common angle settings with positive stops at 0°,
15°, 22.5°, 31.6° and 45°. These positive stops position
the blade at the desired angle quickly and accurately.
Follow the process below for quickest and most accurate
adjustments.
This tool is carefully adjusted and aligned at the factory,
but rough handling may have affected the alignment. If
your tool is not aligned properly, perform the following as
needed.
To Adjust Mitre Angles:
• Unlock the table by turning the mitre handle (1)
counter-clockwise.
• Move the table while lifting up on the positive stop locking lever (2) to align the indicator (3) to the
desired degree measurement.
• If the desired angle is one of the nine positive stops, release the positive stop locking lever, making
sure the lever snaps into position, and then secure by tightening the mitre handle.
• If the mitre angle desired is not one of the nine positive stops, simply lock the table into desired angle
position by turning the mitre handle in the clockwise direction.
NOTE:
To empty the dust bag, remove it from exhaust port. Open zipper on underside of bag and empty into waste
container.
IMPORTANT:
Check bag frequently and empty it before it gets full.
