model no. 055-6762-0 | contact us 1-800-689-9928

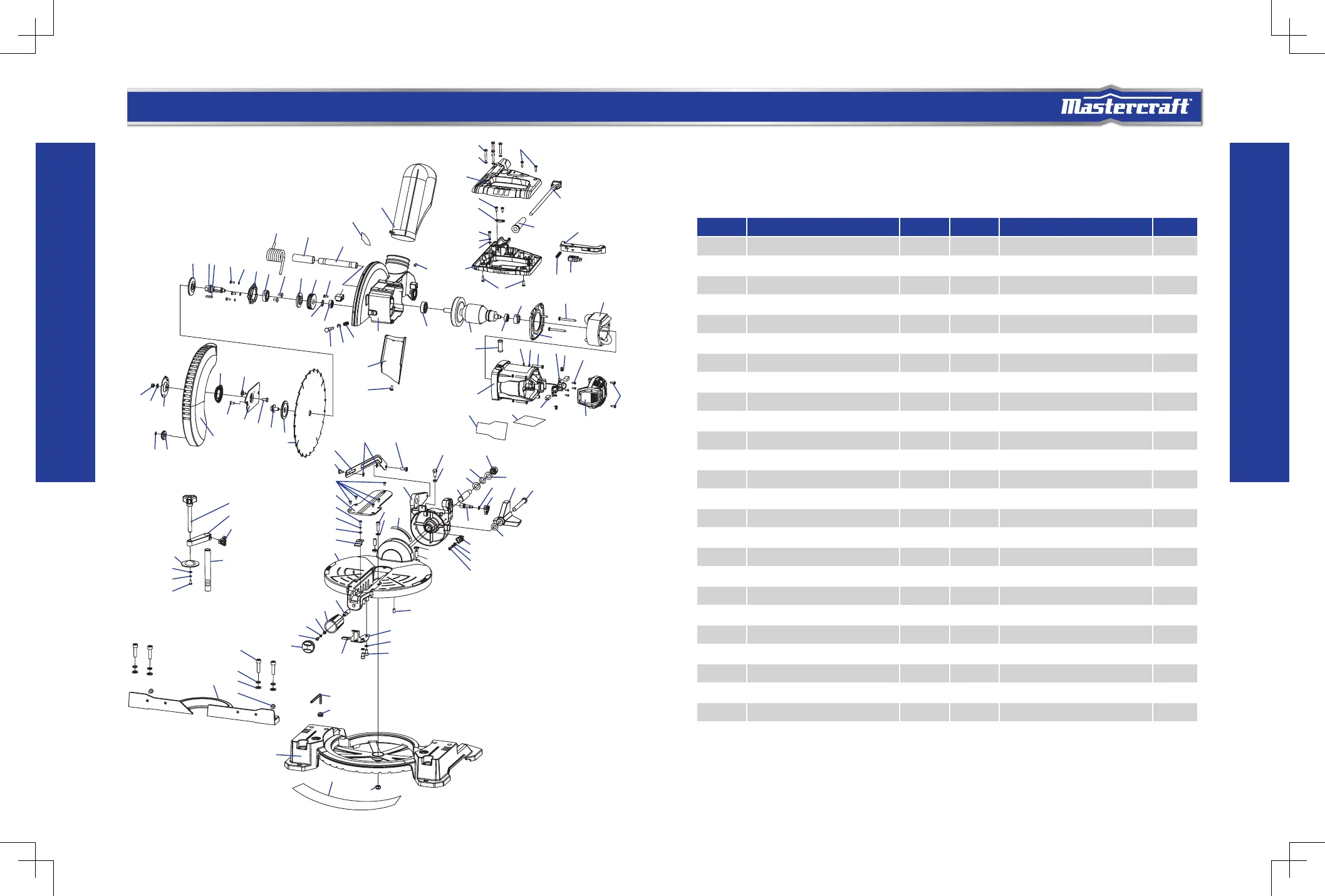

EXPLODED VIEW
PARTS LIST
MASTERCRAFT
®
10” (25.4 cm) COMPOUND MITRE SAW
When servicing the Mastercraft
®
Compound Mitre Saw, use only Mastercraft
®
replacement parts. The use of
any other parts may cause damage to the product. All servicing of the mitre saw should be performed by a
qualied service technician. For more information, call the Toll-Free Helpline at 1-800-689-9928.
NO. Description Qty No. Description Qty
01 Screw 8 26 Screw 2
02 Washer 9 27 Spindle lock stop plate 1
03 Top Handle 1 28 Gear 1
04 Self-tapping screw 8 29 Circlip 1
05 Power cord and plug 1 30 Bearing 2
06 Power cord sleeve 1 31 Moving guard stop block 1
07 Power cord press plate 1 32 Spindle lock pin 1
08 Screw 2 33 Circlip 1
09 Spring washer 5 34 Spindle lock pin spring 1
10 Lower handle 1 35 Fixed guard 1
11 Trigger 1 36 Dust chimney 1
12 Trigger spring 1 37 Setscrew 2
13 Micro-switch 1 38 Bearing 1
14 Dust bag 1 39 Rotor 1
15 Brand label 1 40 Rubber sleeve 1
16 Torsional spring 1 41 Self-tapping screw 2
17 Torsional spring sleeve 1 42 Stator 1
18 Rotary shaft 1 43 Fan guard 1
19 Inner ange 1 44 Heat shinkable tubing 1
20 Shaft 1 45 Brush holder 2
21 Flat key 1 46 Coil spring 2
22 Screw 8 47 Self-tapping screw 4
23 Spring washer 7 48 Motor housing 1
24 Gearbox cover 1 49 Carbon brush 2
25 Bearing 1 50 Motor housing cover 1
4
6
3
5
8
10
12
17
18
65
66
56
59
61
62
19
21
29
30
31
32
33
34
35
36
30
39
40
43
42
48
2
1
49
45
46
8
4
68
67
70
81
76
84
83
82
85
87
72
91
23
22
79
92
93
74
77
95
98
100
99
97
111
114
101
104
103
94
64
4
9
52
57
69
22
73
23
96
78
89
102
37
37
83
116
11
13
41
47
50
74
75
112
23
23
71
105
73
22
109
106
53
55
54
60
63
58
7
2
38
44
51
80
88
86
73
22
90
115
113
2
4
20
22
26
27
22
28
23
24
25
16
14
15
9
73
107
110
108
