This will avoid a break-in period that reduces motor
performance and increases wear.

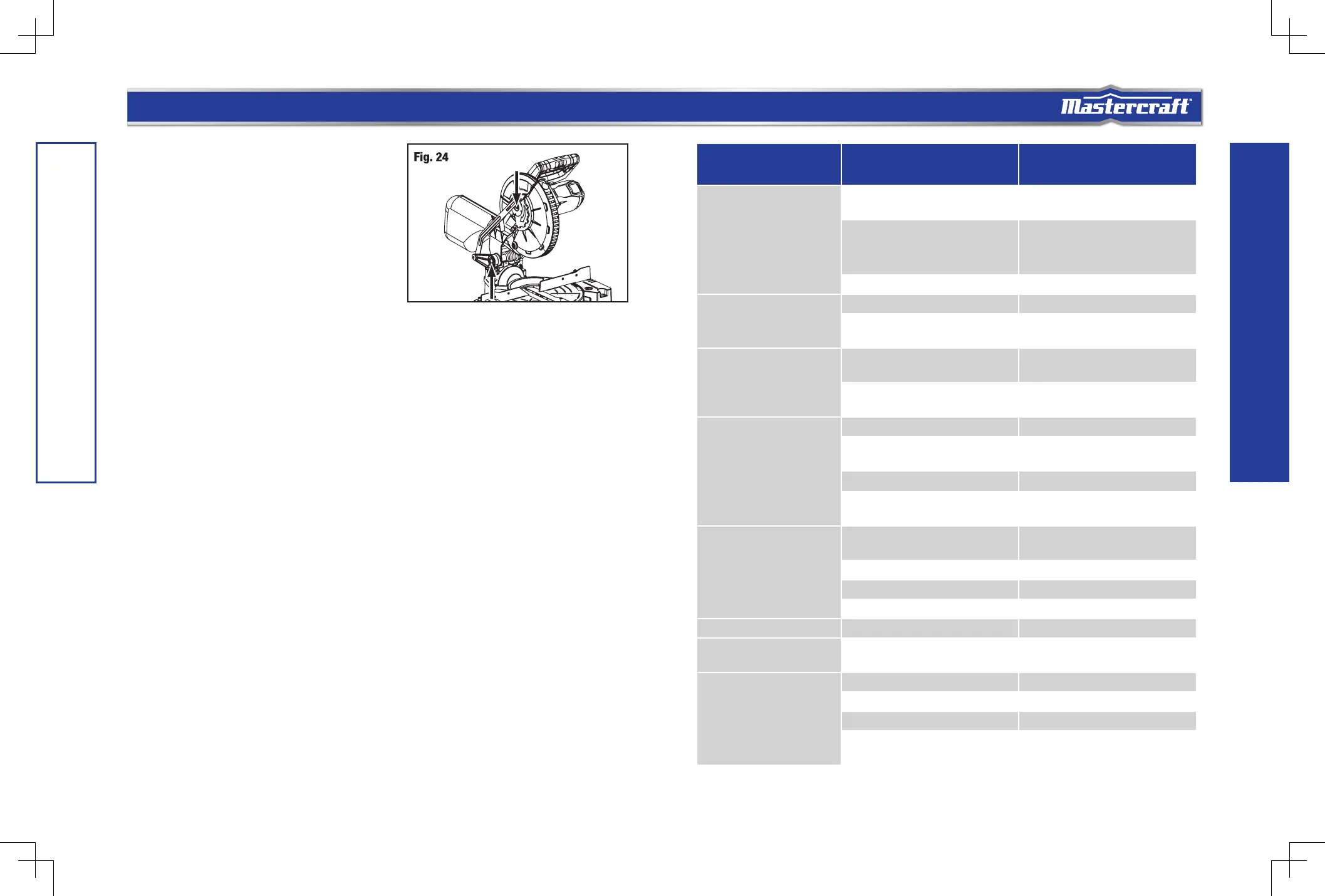

LUBRICATION (Fig. 24)
All the motor bearings in this tool are lubricated with a
sufcient amount of high-grade lubricant for the life of
the unit under normal operating conditions; therefore, no
further lubrication is required.
Lubricate the following as necessary:
Chop pivot: Apply light machine oil to points indicated in
illustration.
Central pivot of plastic guard: Use light household oil (sewing machine oil) on metal-to-metal or
metal-to-plastic guard contact areas as required for smooth, quiet operation. Avoid excessive oil as sawdust
will cling to it.
MAINTENANCE
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE
SUGGESTED CORRECTIVE
ACTION
Brake does not stop blade
within 10 seconds
Motor brushes not sealed or lightly
sticking
Inspect/clean/replace brushes
Motor brake overheated from use
of defective or wrong size blade or
rapid ON/OFF cycling
Use a recommended blade
Arbor bolt is loose Retighten
Motor does not start
Brush worn Replace brushes
Power source fuse or time delay
fuse
Check time delay fuse or circuit
breaker
Angle of cut inaccurate
Mitre table unlocked
Rotate the mitre locking handle all
the way to the right
Too much sawdust under table
Vacuum or blow out dust while
wearing eye protection
Head assembly cannot fully
raise or blade guard cannot
fully close
Parts failure Contact service centre
Pivot spring not replaced properly
after service
Contact service centre
Sawdust build-up Clean and lubricate moving parts
Lock-down pin not set properly
Check, adjust and properly set
saw-head locking pin
Blade binds, jams or burns
wood
Improper operation
See OPERATING INSTRUCTIONS
section
Dull blade Replace or sharpen blade
Improper blade Replace blade
Warped blade Replace blade
Blade hits table Misalignment See “Assembly and adjustments”
Brush sparks excessively
when switch is released
Brush worn/damaged Replace brushes
Saw vibrates or shakes
Saw blade damaged Replace blade
Saw blade loose Tighten black bolt
Saw not properly fastened down Fasten saw to stand, bench or table
Workpiece not properly supported
Properly support or clamp
workpiece
