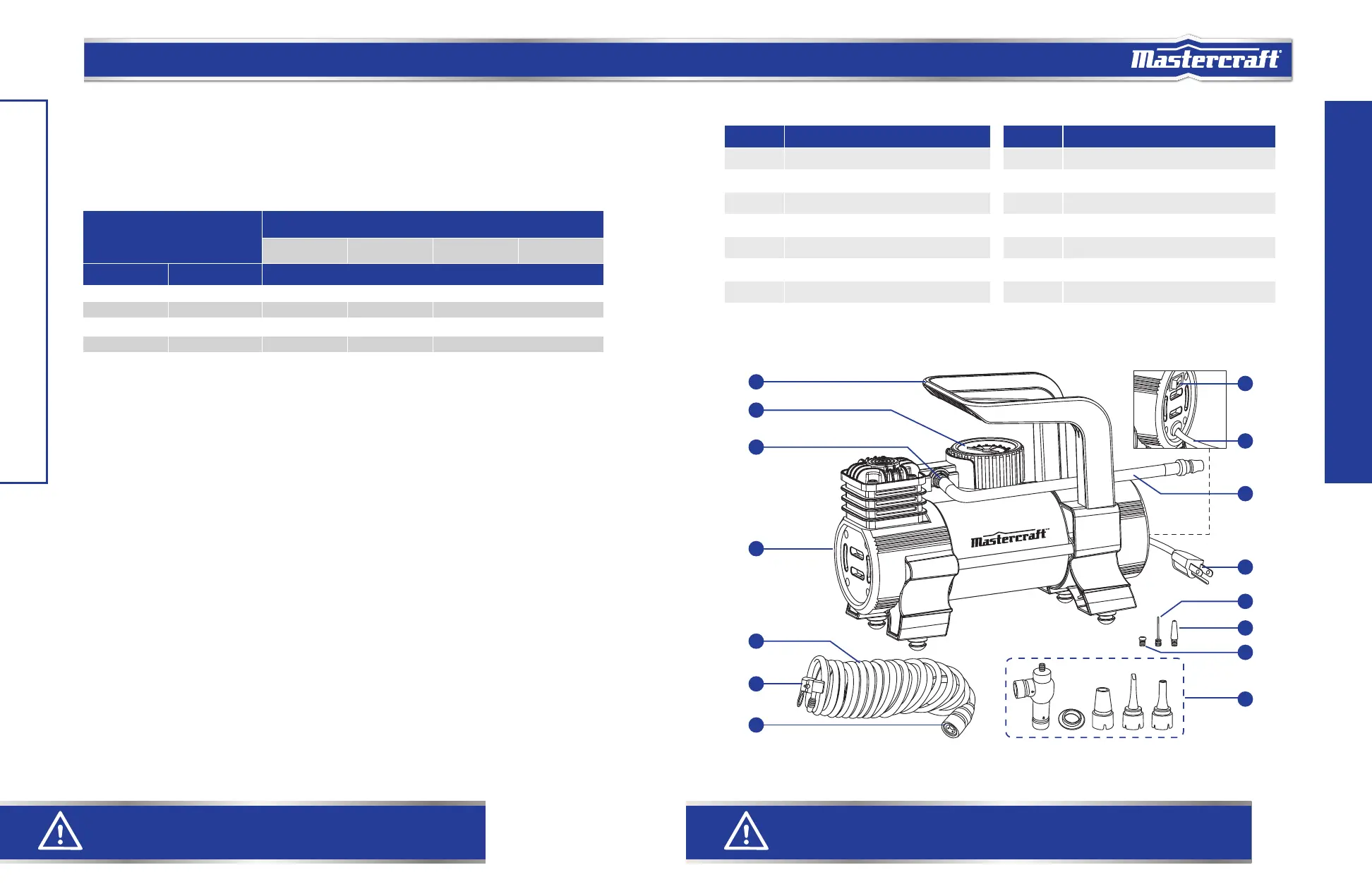

SAFETY GUIDELINES KEY PARTS DIAGRAM
KEY PARTS DIAGRAM
No. Description
A Multi-purposeinflator
B Carrying handle
C Pressure gauge
D Inflator air outlet
E Rubber air hose
F On/Off switch
G Power cord
H Power cord plug
No. Description
I Recoil air hose
J Lock-ontirechuck
K Quick connect coupler
L Mattress nozzle
M Sports ball needle
N Presta valve adaptor
O 5 High flow accessories
INFLATION
DEFLATION
F
G
H
O
N
E
M
L
B
A
J
I
K
C
D
GUIDELINES FOR USING EXTENSION CORDS
Verify that the extension cord is in good condition. When using an extension cord, be sure to use one that
is heavy enough to carry the current that the tool will draw. An undersized cord will cause a drop in line
voltage, which will result in loss of power and overheating. The table below shows the correct size to use
according to cord length and the amperage rating on the tool’s nameplate. When in doubt, use the next
heavier gauge. The smaller the gauge number, the heavier the cord.
Verify that the extension cord is properly wired and in good condition. Always replace a damaged extension
cord,orhaveitrepairedbyaqualifiedelectricianbeforeusingit.Keepextensioncordsawayfromsharp
objects, excessive heat, and damp or wet areas.
INFLATOR USE AND CARE SAFETY WARNINGS
• Do not use the inflator if the switch does not turn it on and off. Any inflator that cannot be controlled
with the switch is dangerous and must be repaired.
• Disconnecttheplugfromthepowersourcebeforemakinganyadjustments,changingaccessories,or
storing the inflator. Such preventive safety measures reduce the risk of starting the inflator accidentally.
• Storeanidleinflatoroutofthereachofchildrenanddonotallowpersonsunfamiliarwiththeinflator
or these instructions to operate it. An inflator is dangerous in the hands of untrained users.
• Maintaintheinflator.Keeptheinflatorcleanforbetterandsaferperformance.Keepdry,cleanandfree
from oil and grease. Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may affect the inflator’s operation. If damaged, have the inflator repaired before
use. Many accidents are caused by a poorly maintained inflator.
• Usetheinflatorinaccordancewiththeseinstructions,takingintoaccounttheworkingconditionsand
the work to be performed. Use of the inflator for operations different from those intended could result
in a hazardous situation.
SERVICE SAFETY WARNINGS
• Haveyourinflatorservicedbyaqualifiedrepairpersonusingonlyidenticalreplacementparts.Thiswill
ensure that the safety of the inflator is maintained.
Amperage rating of the tool
(120 V circuit only)
Total length of the extension cord
25’ (7.6 m) 50’ (15.2 m) 100’ (30.4 m) 150’ (45.7 m)
More than Not more than Minimum gauge for the extension cord (AWG)
0 6 18 16 16 14
6 10 18 16
10 12 16 16
12 16 14 12
Do not use
Do not use
Do not use
WARNING!
If any part is missing or damaged, do not use the product until the missing or damaged part has been replaced.
WARNING!
This product must be grounded while in use in order to protect the operator from electric shock.
