PARTS LIST
NOTE:
The manufacturer and/or distributor has provided the parts list and assembly diagram in this manual as a reference tool only. Neither the manufac-
turer or distributor makes any representation or warranty of any kind to the buyer that he or she is qualified to make any repairs to the product, or
that he or she is qualified to replace any parts of the product. In fact, the manufacturer and/or distributor expressly states that all repairs and parts
replacements should be undertaken by certified and licensed technicians, and not by the buyer. The buyer assumes all risk and liability arising out of
his or her repairs to the original product or replacement parts thereto, or arising out of his or her installation of replacement parts thereto.

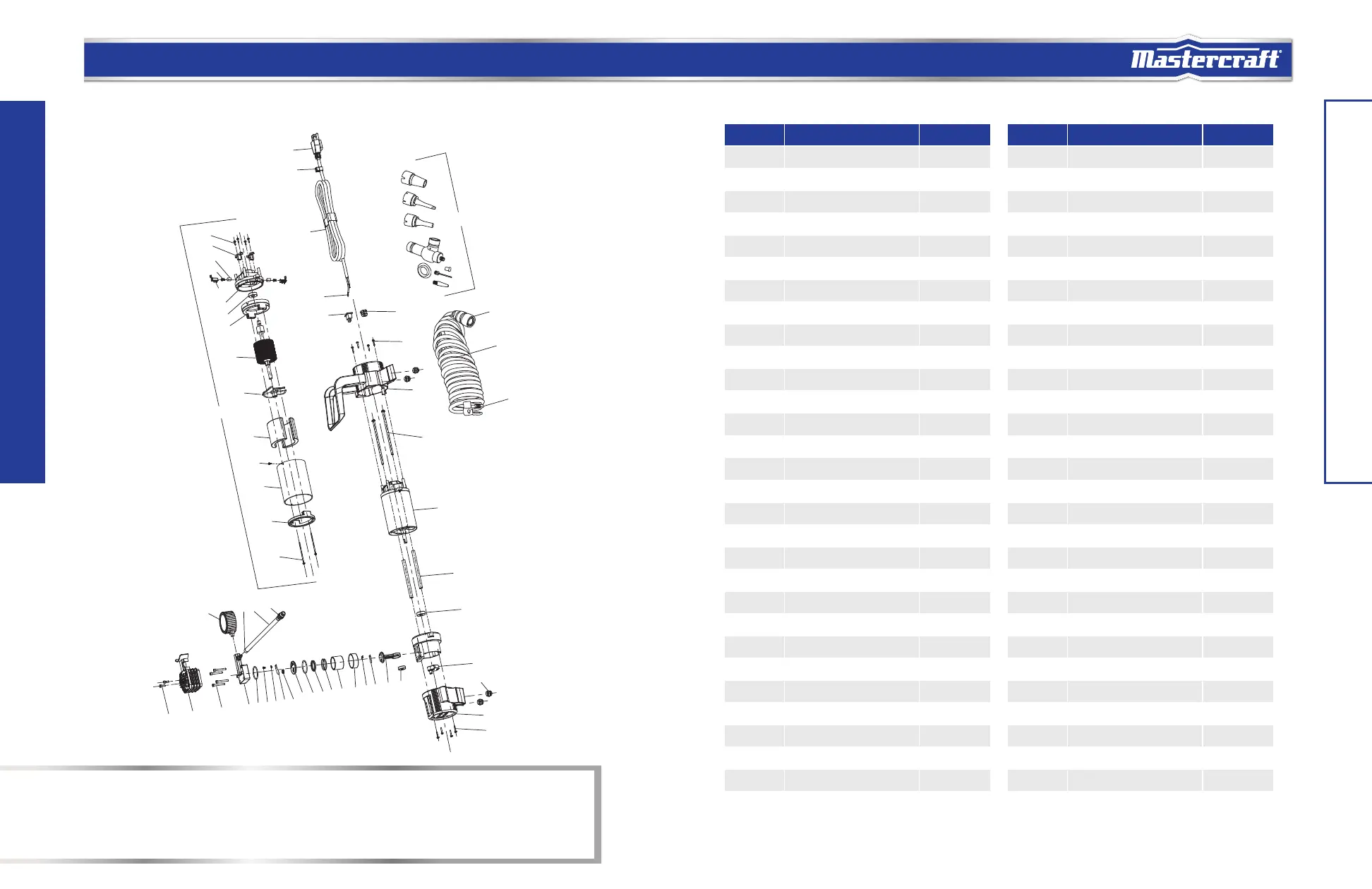

EXPLODED VIEW
4
3
2
1
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
58
57
59
27
8
5
6
7
PARTS LIST
No. Description Qty.
1 Screw 2
2 Cylinder cover 1
3 Screw 4
4 Cylinder 1
5 Seal ring 1
6 Screw 1
7 Gasket 1
8 Air exhaust slice 1
9 Seal ring 1
10 Intake valve slice 1
11 Seal ring 1
12 Press ring 1
13 Piston ring 1
14 Cylinder liner 1
15 Radiator sleeve 1
16 Fixing plate 1
17 Air intake slice 1
18 Connecting rod 1
19 Bearing 1
20 Screw 4
21 Front cover (1) 1
22 Shockproof pad 4
23 Offset wheel 1
24 Front cover (2) 1
25 Bearing 1
26 Fixed stud 2
27 Motor 1
28 Screw 2
29 End cover 1
30 Screw 4
No. Description Qty.
31 Wire nail 1
32 Switch 1
33 Blade terminal 1
34 Wire 1
35 Wire nail 1
36 AC plug 1
37 Pressure gauge 1
38 Locking ring 2
39 Rubber hose 1
40 Quick connector 1
41 Screw 2
42 Set ring 1
43 Motor housing 1
44 Screw 1
45 Magnetic tile 2
46 Blade 1
47 Rotor 1
48 Set ring 1
49 Bearing 1
50 Brush holder 1
51 Brush holder bushing 2
52 Spring 2
53 Brush 2
54 Brush holding plate 2
55 Screw 4
56 Air nozzle 1
57 Air hose 1
58 Quick connector 1
59 Accessories 8
