13

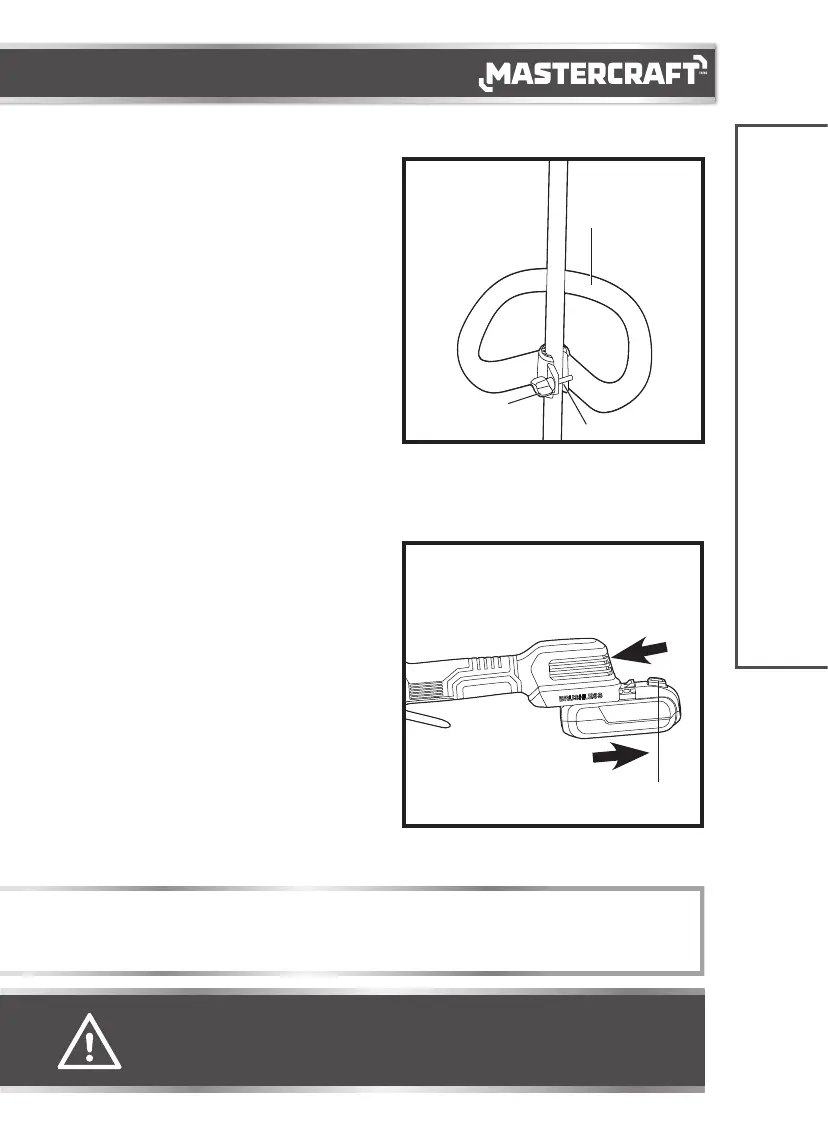

MOUNTING THE FRONT-ASSIST HANDLE
(fig 5)
1. Remove the battery pack from the trimmer.
2. Remove the screw knob and the bolt from the front-
assist handle.
3. Press the front-assist handle onto the shaft of the
grass trimmer. Make sure that the front-assist
handle faces upward so that it points toward the top
of the handle.
4. To attach the front-assist handle on the shaft, insert
the bolt into the hole on the front-assist handle, and
then use the screw knob to tighten the bolt.
TO ADJUST THE FRONT-ASSIST HANDLE
(fig 5)
The handle should be adjusted so that your front arm
will be straight when using the trimmer. To adjust the front-assist handle position, loosen the screw
knob so that the front-assist handle can be moved to the desired position of the shaft. Tighten the
screw knob so that the handle cannot move on the shaft during operation.
TO ATTACH BATTERY PACK
(fig 6)
1. Make sure that the switch is in the OFF position.
2. Align the raised portion on the battery pack with the
grooves on the bottom of the tool, and then slide the
battery pack onto the tool as shown.
3. Ensure that the battery-release button on the
battery pack snaps into place and the battery pack
is secured to the tool before beginning operation.
TO DETACH THE BATTERY PACK
(fig 6)
1. Ensure that the switch is in the OFF position.
2. Depress the battery-release button located on the
front of the battery pack to release the battery pack.
3. Pull rearward on the battery pack to remove it from the tool.
OPERATING INSTRUCTIONSMAINTENANCE
fig 5
fig 6
Battery-release
button
WARNING!
• To avoid the possibility of accidental starting, always take care not to activate the variable-speed trigger
switch when you are attaching the battery pack or performing other adjustments to the tool.
NOTICE: When placing a battery pack on the tool, be sure that the raised rib on the battery pack aligns with the groove on
the string trimmer and the latches snap into place properly. Improper assembly of the battery pack can cause damage to internal
components.
Front-assist
handle
Bolt
Screw knob
