ASSEMBLY INSTRUCTIONS
5
Attach the side panels (7 and 19) to the bottom panel (8) with eight M6 x 16 hex socket head screws (3).
TOOLS REQUIRED FOR ASSEMBLY
• Hex wrench (21)
• Power drill (not included)
First press the two trapezoidal taps at the front centre of the top panel (20) inwards by 90 degrees.
3
8
7
19
NOTE:
product from being scratched during assembly.
Assemble on a flat surface. A piece of cardboard is recommended to keep the
ASSEMBLY INSTRUCTIONS

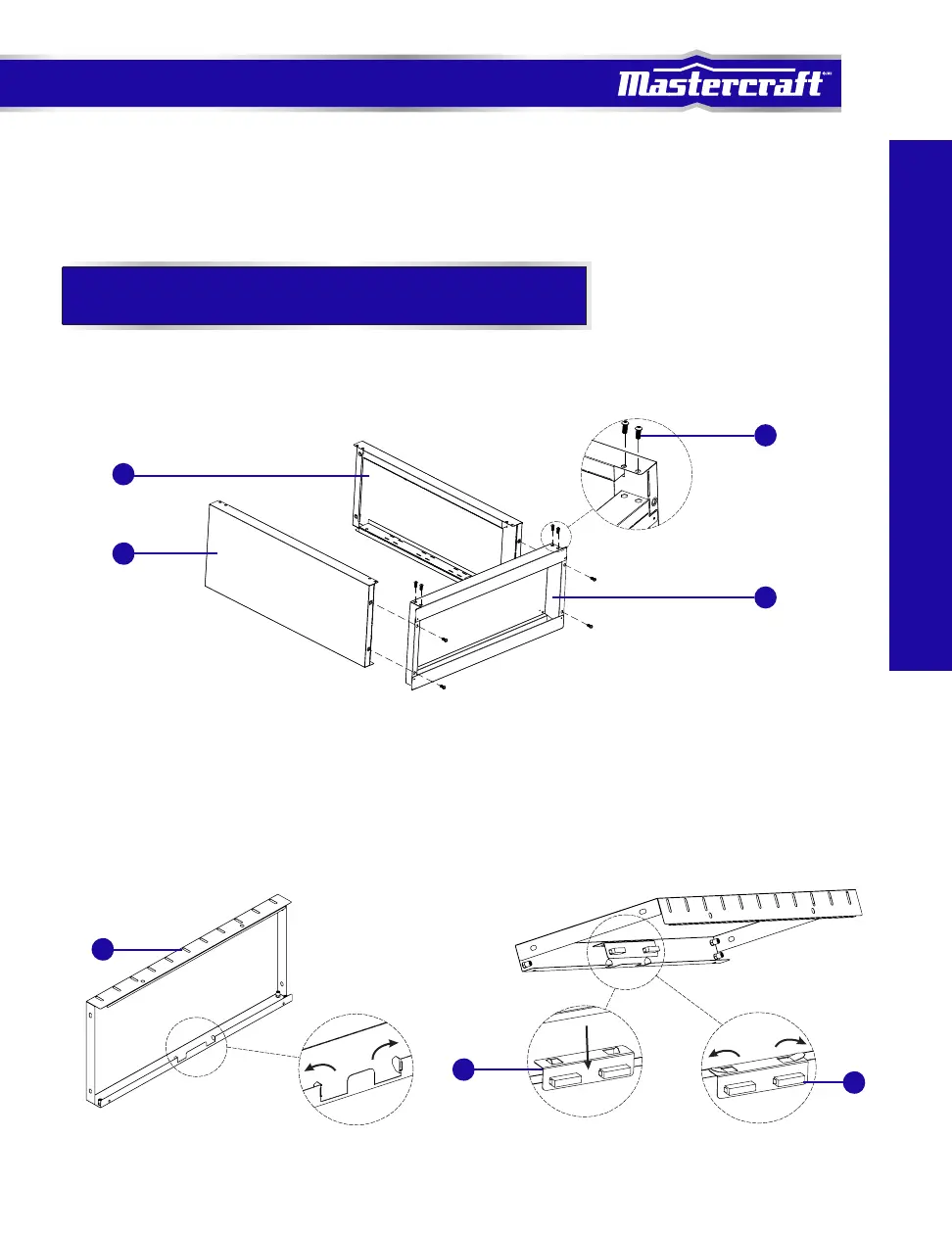

STEP 1 ATTACH THE BOTTOM AND SIDE PANELS
•
•
STEP 2 ATTACH THE DOOR STOPPER
Insert the door stopper (18) onto the two taps. Make sure the magnets (17) are outside of the top
panel (20) and face toward the front of the cabinet.
•
Finally, bend the two trapezoidal taps of the top panel (20) outwards until they are against the door
stopper (18).
1 2
3
20
18
17
To Next Page
