The M6 x 40 hex tapping bolts (2) should be drilled into
the studs of the wall.
The mounting brackets should be level after installing
on the wall.
Wall
back
back
Wear safety glasses when drilling the screws into the
wall.
Wall
2
1
4.5 in.
Make sure the wall cabinet is securely attached to the
mounting brackets.
Hang the wall cabinet onto the mounting brackets (1).
NOTE: The two M6 x 40 hex tapping bolts (2) for each mounting
bracket (1) should not line up horizontally. They should line up
vertically.
9
Install the mounting brackets (1) on the wall with
four M6 x 40 hex tapping bolts (2).
Decide the location of the wall cabinet on the wall
first to find the location of the mounting brackets (1).
The bottom edge of the mounting brackets (1) should
be 4 1/2" (11 cm) away below the cabinet’s top edge.
•
•

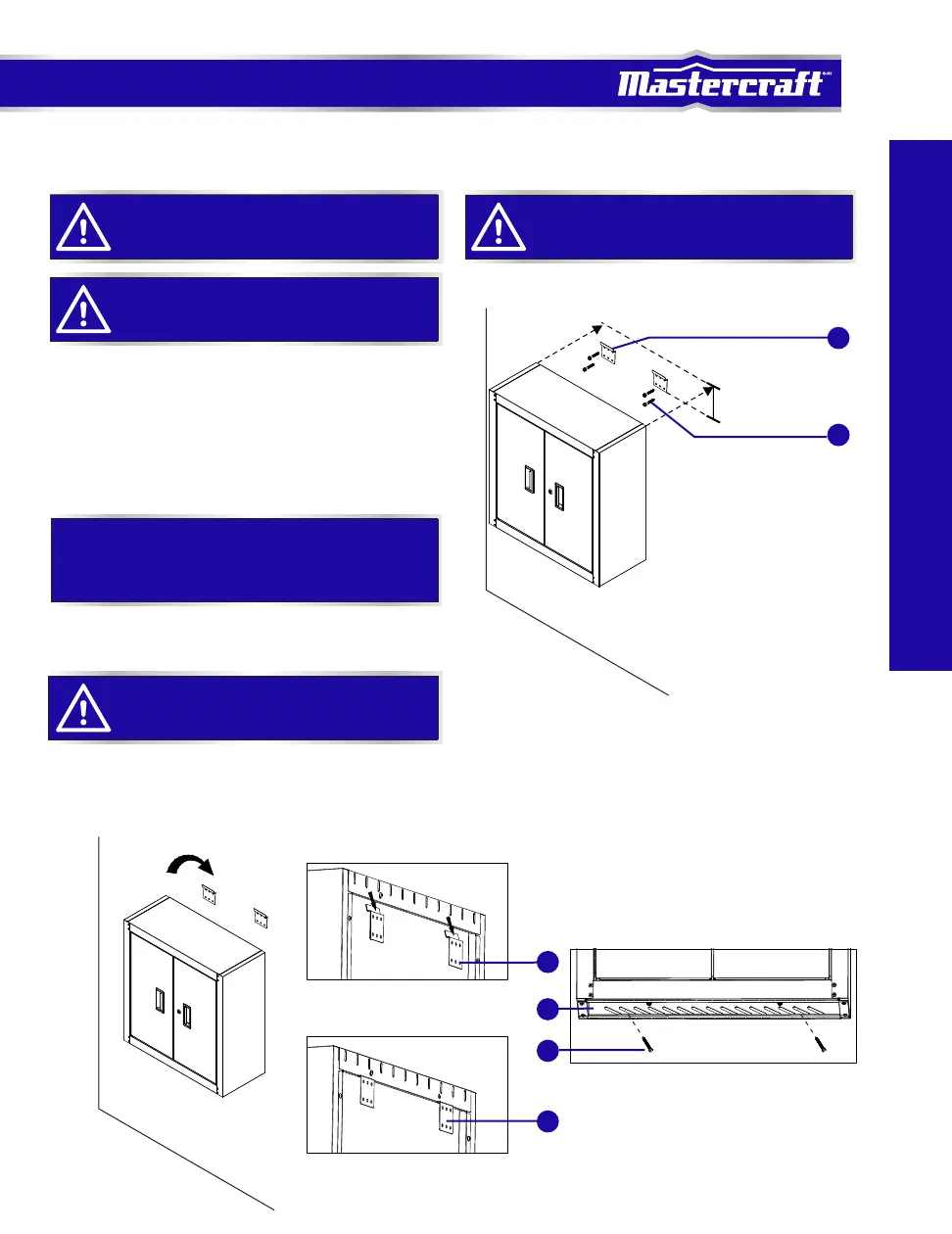

ASSEMBLY INSTRUCTIONS
STEP 8 INSTALL THE MOUNTING BRACKETS
STEP 9 HANG THE CABINET
•
Drill two M6 x 40 hex tapping bolts (2) through the bottom holes at the back of the bottom panel (8) into
the studs of the wall. The two M6 x 40 hex tapping bolts should be drilled into the studs of the wall.
•
1
1
8
2
To Next Page
