8
ASSEMBLY INSTRUCTIONS
model no. I contact us 1-800-689-9928068-0005-0
Shelf locked by shelf
bracket after installation
Slots on the inner
back side of side
panel
Slots on the inner
front side of side
panel
5
6

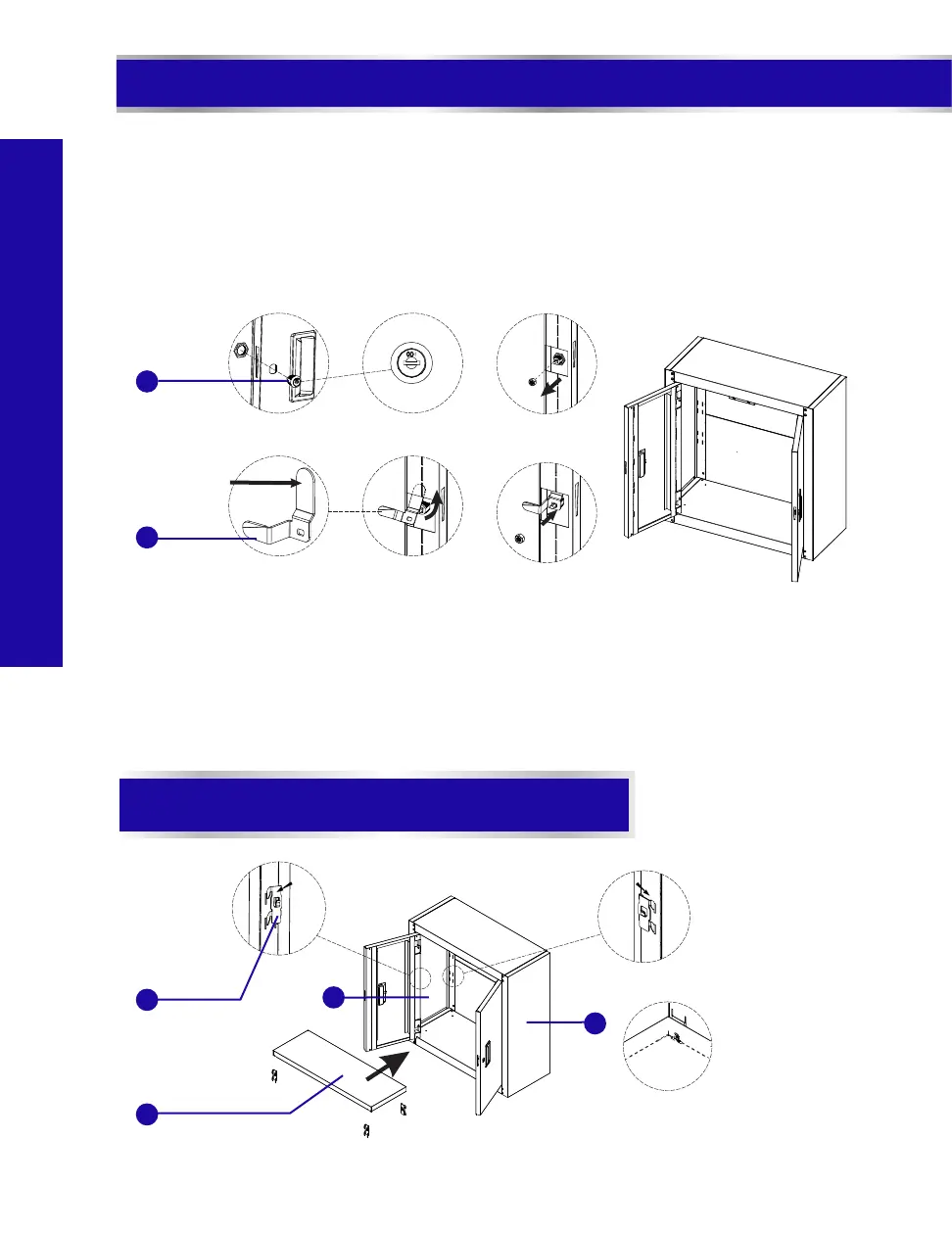

STEP 7 INSTALL THE SHELF
STEP 6 INSTALL THE LOCKING HOOK
Insert four shelf brackets (6) into the slots on the side panels (7 and 19) at the desired height.
Make sure the four brackets (6) are at the same height. Place the shelf (5) over the shelf
brackets (6), and push it down onto the shelf brackets (6). Make sure the shelf (5) is properly
and safely locked by the upright hooks of the shelf brackets (6).
NOTE: To use the locking mechanism, the shelf must be placed in the centre position.
19
7
9
3
2
4
Install the lock (9) per Step 1, ensuring the lock code stays on top of the lock face. Release the
nut from the lock (9) back and attach the locking hook (13) per Step 3. Tighten the hook (13)
securely with the nut previously removed from the lock (9) back as shown in Step 4.
This section must be
inserted into the
square hole.
1
13
To Next Page
