MasterCraft 068-1577-2

STEP 8 INSTALL THE SLIDES
Front
Front
Back
Back
Left slide
Right slide
31
9
•

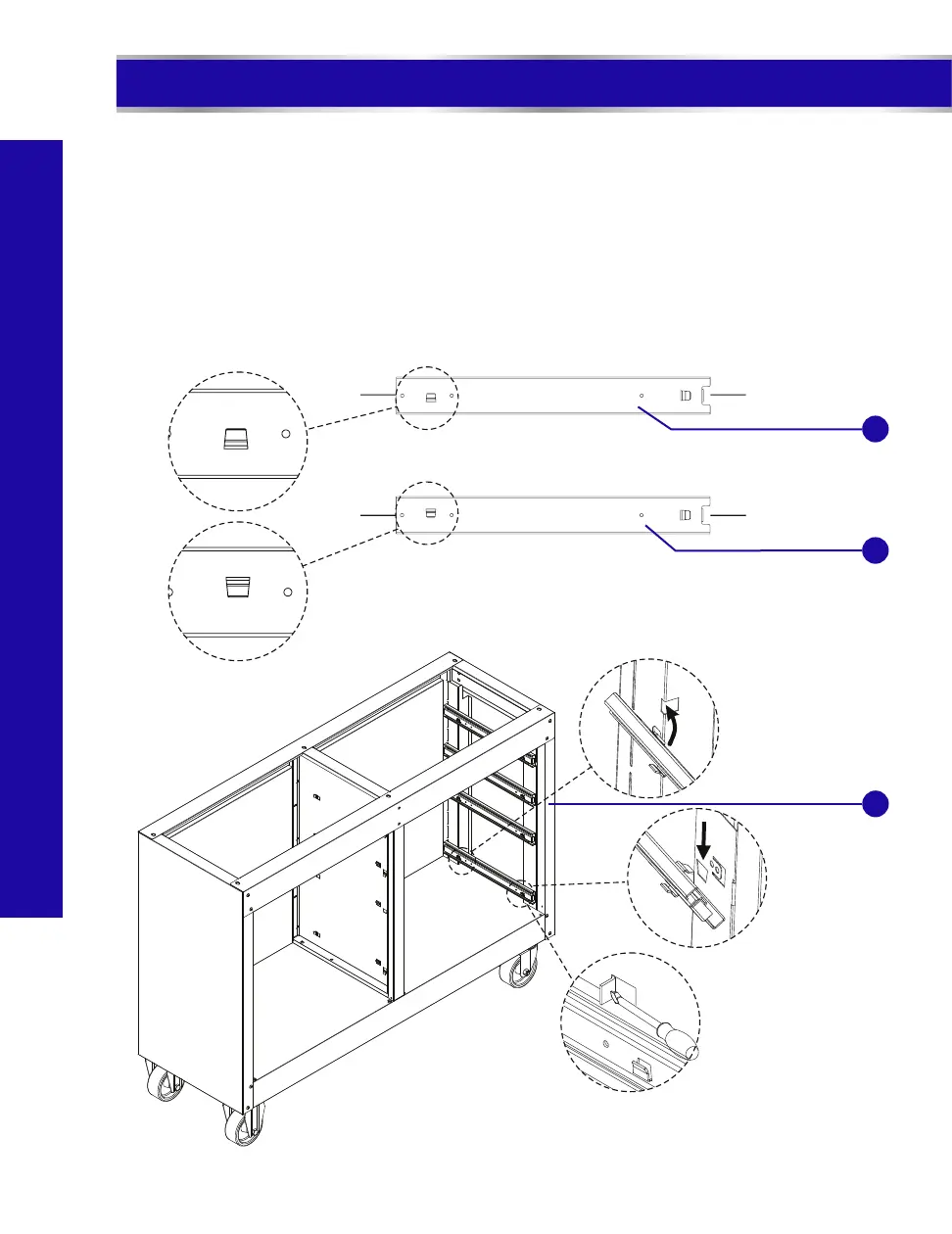

Slide the back clip of the outer rail of a right slide (9) into the back slot at the right side panel (3) and
slide the front clip of the outer rail into the slot at the front of the right side panel (3).
•
Repeat the same procedure to install the other right slides (9) to the right side panel (3).
•
Repeat the same procedure to install four left slides (31) to the centre panel (34).
•
Bend the eight clips above the left and right slides outwards with the help of a straight screwdriver
so as to secure the slides.
1
3
model no. 068-1577-2 I contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS
10
3
(back slot)
2
(front slot)
