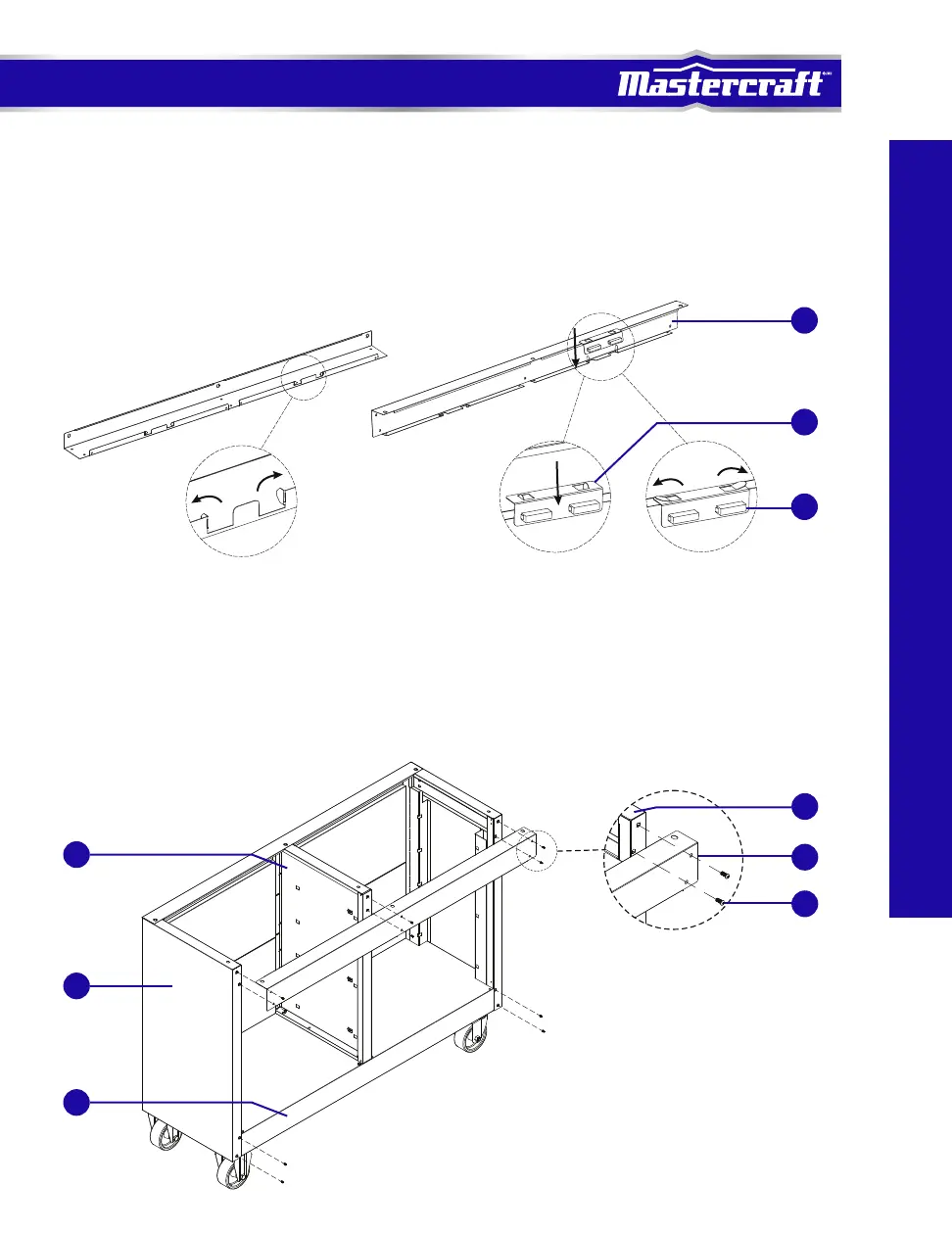

STEP 6 ATTACH THE DOOR STOPPER
First press the two trapezoidal tabs at the right side of the front top beam (5) inwards by 90 degrees.
•
Insert the door stopper (30) onto the two tabs. Make sure the magnets (29) are outside of the front
top beam and face toward the front of the cabinet.
•
Finally, bend the two trapezoidal tabs of the front top beam (5) outwards until they are against the
door stopper (30).
•
STEP 7 ATTACH THE FRONT TOP BEAM
Attach the front top beam (5) to the side panels (3 & 32) with six M6 x 16 hex socket head screws (4).
Insert the screws by hand. DO NOT tighten.
•
At the same time, screw four M6 x 16 hex socket head screws (4) through the side panels (3 & 32) to
the bottom panel (28). DO NOT tighten.
•
ASSEMBLY INSTRUCTIONS
9
5
3
5
34
32
28
4
