STEP 13 ATTACH THE DOORS
1
2 3

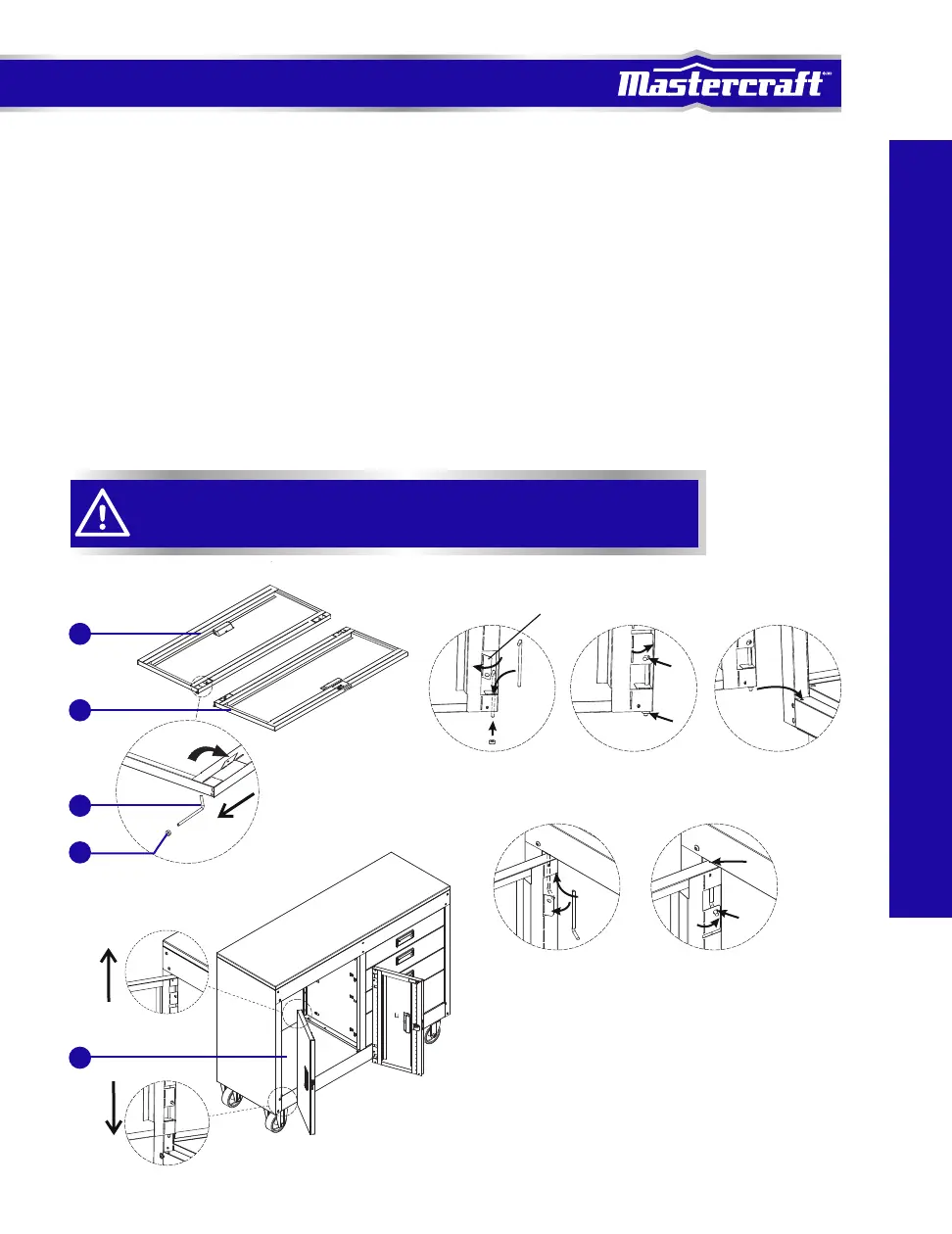

• Lay down the left door (22) on its face with a soft mat underneath. Pull the bottom locking tab at
the right bottom corner of the door outwards. Insert a pin (19) through the hole at the door's bottom
corner and put a rubber ring (20) onto the pin's vertical end.
•
Repeat the same procedure to install the right door (18).
When pushing the locking tab back to its place, make sure the end of the pin's
horizontal part is inserted into the hole of the locking tab to ensure the pin
is well secured.
19
18
22
View from door bottom
View from door top
locking tab
•
Push back the bottom locking tab to its place. Insert the horizontal end of the pin (19) into the hole
at the locking tab at the same time.
•
Take up the left door (22) and insert the pin (19) into the hole at the left bottom corner of the bottom
panel (28).
•
Pull the upper locking tab at the right top corner of the door outwards. Insert a pin (19) through the
hole at door's right top corner into the hole at the left top corner of the cabinet.
•
Push back the upper locking tab to its place. Insert the horizontal end of the pin (19) into the hole at
the locking tab at the same time.
