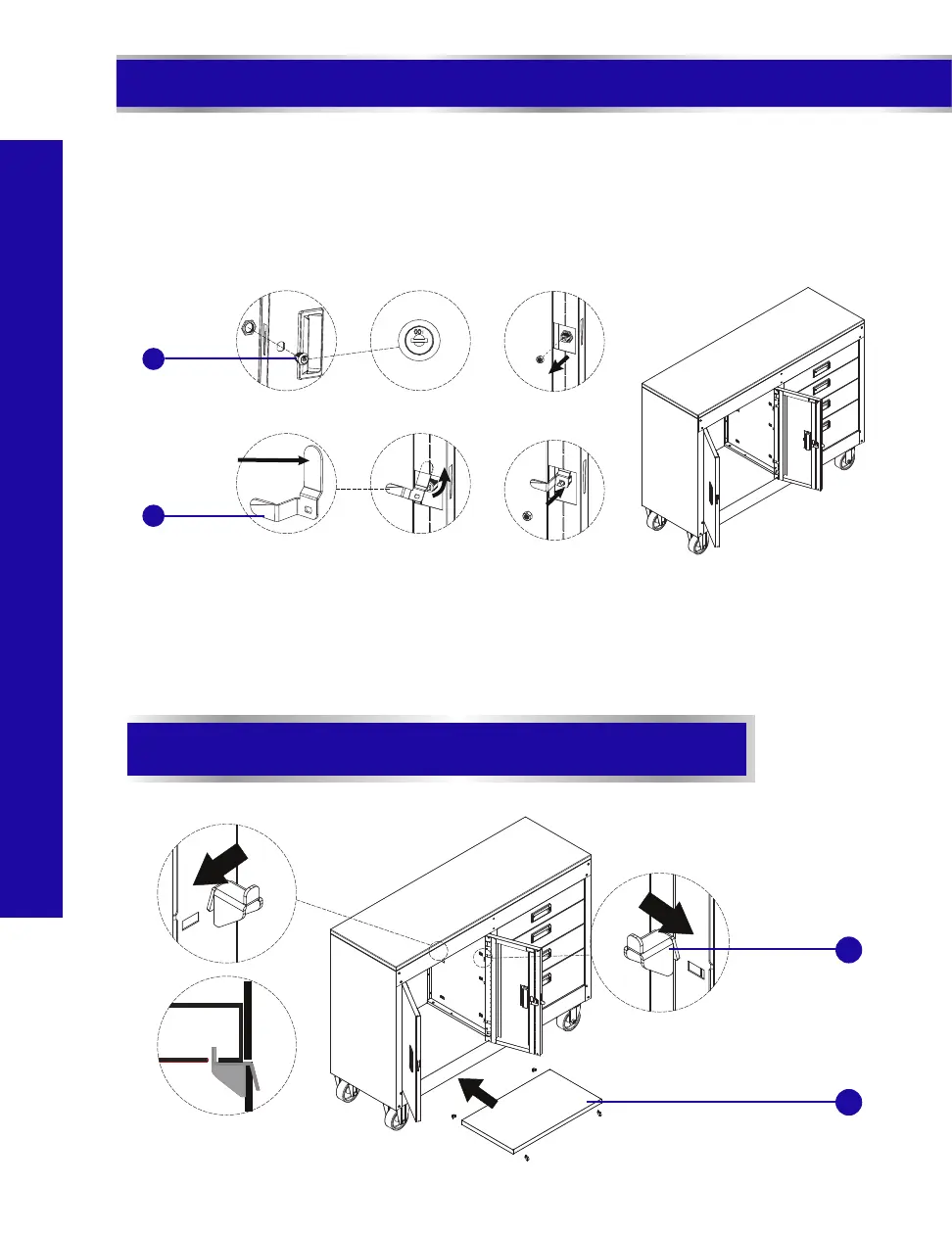

STEP 15 INSTALL THE SHELF
Insert shelf brackets (23) into the slots and place the shelf (24) over the shelf brackets (23).
NOTE: To use the locking mechanism, the shelf must be placed in the re position.cent
24
23
STEP 14 INSTALL THE LOCKING HOOK
Install the lock (16) as shown below, ensuring the lock code stays on top of the lock face. Release
the nut from the lock (16) back and attach the locking hook (17) as shown in illustration 3 below.
Tighten the hook (17) securely with the nut previously removed from the lock (16) back as shown
in illustration 4.
16
3
2
4
This section must be
inserted into the
square hole.
1
17
