MasterCraft 312222-01

For parts or assistance, call Mastercraft Customer Service at 1-877-455-5508

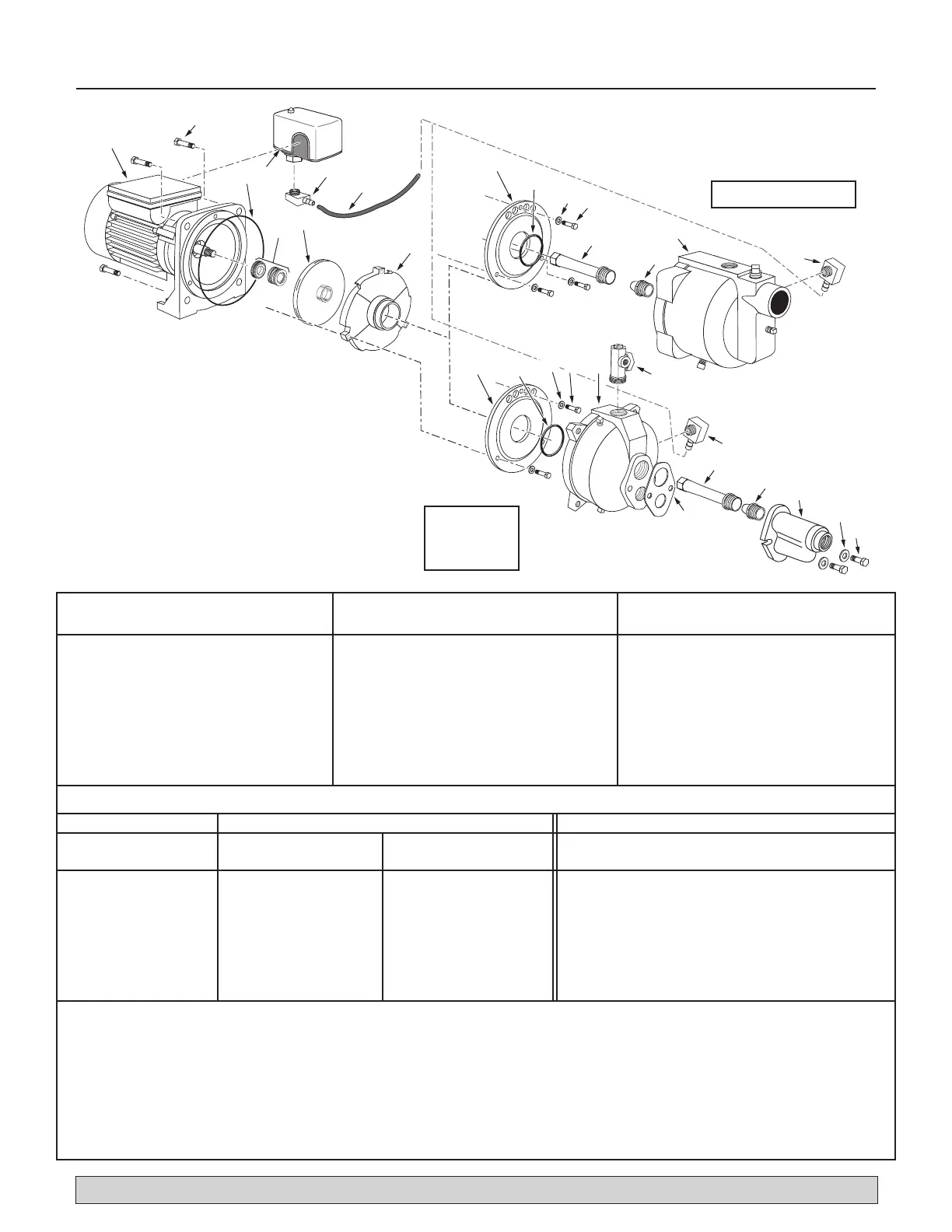

Repair Parts 11
1
2
3
1A
5
4
6
7
8
5912 1108
9
6
16
13
14
17
18
19
15
15A
11
10
12
6
13
14
15
11
10
12
9
Pump Model and Horsepower
CONVERTIBLE (DEEP WELL) PUMPS SHALLOW WELL PUMPS
Part 561471-01 561472-01 312222-01
Description 1/2 HP 3/4 HP 1/2 HP
Seal and O-Ring Kit RPK-35 RPK-35 RPK-35
Overhaul Kit RPK-205DW RPK-207DW RPK-205SW
Ejector Kit FP520-100 FP520-100 –
Pump Body Assembly R176-72 R176-72 R176-73
Pressure Switch (30-50) TC2151 TC2151 TC2151
Pressure Switch Tubing FPASFK FPASFK FPASFK
Pressure Regulator FPAPR FPAPR –
Kits Include:
Seal and O-Ring Kit: Key Nos 2, 4, 10, 16
Overhaul Kit (Shallow well) Key Nos 1A, 2, 4, 5, 8, 9, 11(3), 12(3), 13, 14
Overhaul Kit (Deep well) Key Nos 1A, 2, 4, 5, 8, 9, 10, 11, 12
Ejector Kit (Deep well) Key Nos 6(2), 7, 13(5), 14(2), 16, 17, 18(2), 19(2)
Pump Body Assembly (Convertible) Key Nos 2, 6, 10, 15, 16, 1/4” NPT Plug(2), 1/2” NPT Plug
Pump Body Assembly (Shallow well) Key Nos 2, 6, 13, 14, 15, 1/4” NPT Plug(2), 1/2” NPT Plug
Pressure Switch Key No 3
Pressure Switch Tubing Kit Key Nos. 6(3), 7
Key Part
No. Description Qty.
1 Motor/Seal Plate Assembly 1
1A Motor Flange Screw 4
2 Seal Plate O-Ring 1
3 Pressure switch 1
4 Shaft Seal 1
5 Impeller 1
6 1/4” NPT x 1/4” Barb Elbow 2
7 Hose 1
Key Part
No. Description Qty.
8 Diffuser 1
9 Diffuser Plate 1
10 Diffuser Plate O-Ring 1
11 Diffuser Plate Washer 3
12 Diffuser Plate Screw 3
13 Venturi 1
14 Nozzle 1
15 Pump Body 1
Key Part
No. Description Qty.
15A Pressure Regulator 1
16 Ejector Gasket 1
17 Ejector Body 1
18 Washer 2
19 Ejector Capscrew 2
Model 312222-01
Models
561471-01
561472-01
