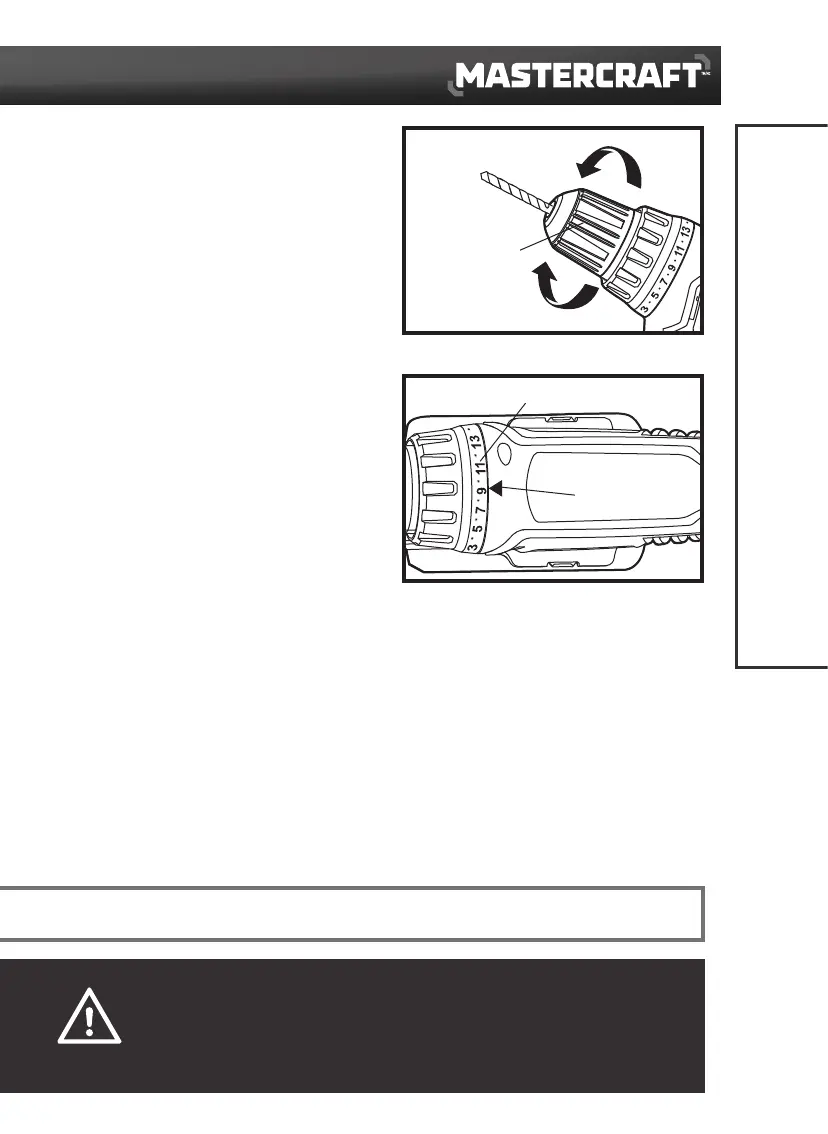

KEYLESS CHUCK
(fig 5)
The arrows on the keyless chuck indicate the
direction of rotation of the body of the chuck to GRIP
(tighten) or OPEN (release) the jaws of the chuck on
the drill/driver bit.
ADJUSTABLE TORQUE CLUTCH
(fig 6)
The torque clutch can be adjusted to any of 24
different settings. The higher the torque setting, the
more force the cordless drill/driver produces to turn
an object.
When using the cordless drill/driver for driving
applications, it is necessary to increase or decrease
the torque to help prevent damage to screw heads,
threads, workpiece, etc.
Adjust the torque by rotating the torque-adjustment
ring. The proper setting depends on the job and the type of bit, fastener, and material you will be using.
In general, use greater torque for larger screws, but if the torque is too high, the screws may be
damaged or broken. For delicate operations, such as removing a partially stripped screw, use a low
torque setting. For operations such as drilling into hardwood, use a higher torque setting.
fig 6
Torque-Adjustment Ring
Arrow
fig 5
Open
Grip
Keyless
Chuck
CAUTION!
• Do not hold the body of the keyless chuck with one hand while using the power of the drill/driver to tighten
the jaws of the chuck on the drill bit. The body of the keyless chuck could slip in your hand, or your hand
could slip and come into contact with the rotating bit. This could cause an accident and result in serious
personal injury.
NOTICE: Do not change the torque setting when the tool is running.
