model no. 054-1332-6 | contact us 1-800-689-9928
24

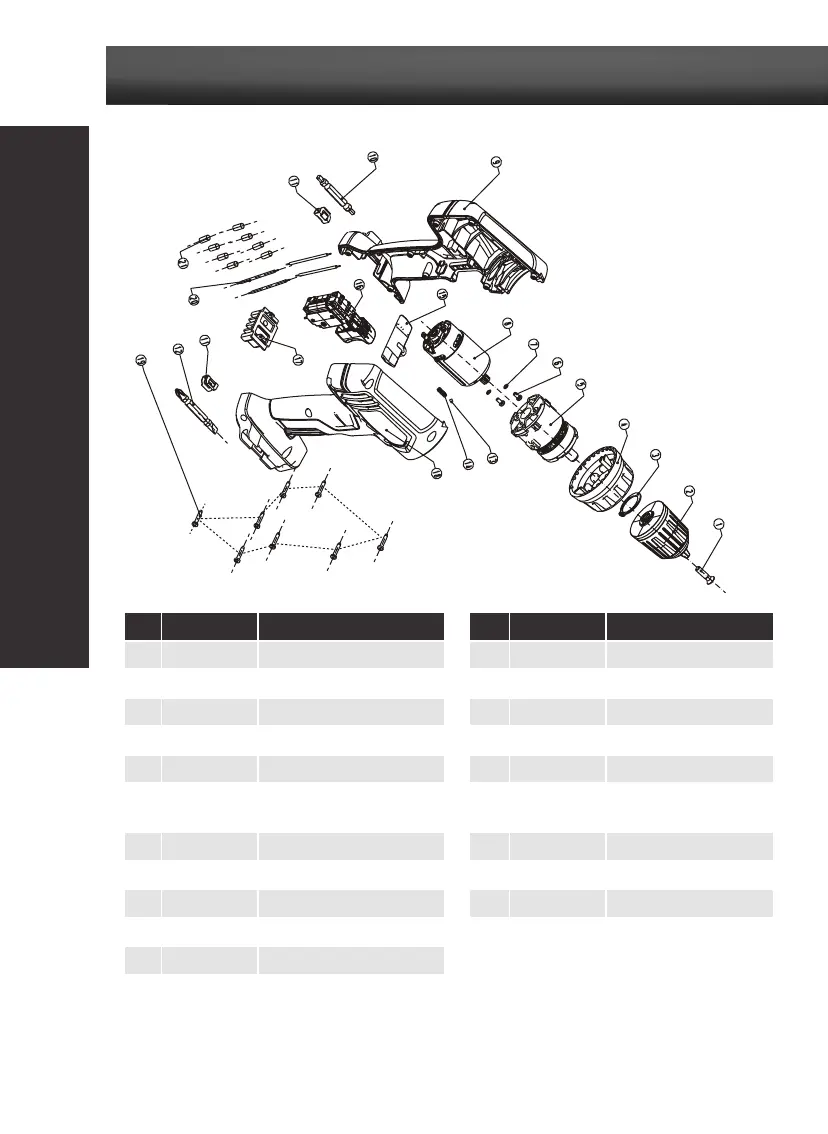

EXPLODED VIEW
No. Part No. Description No. Part No. Description
1 5620179000 Screw (L.H.) 12 3810357000 Screw Bit
2 3860086000 Chuck 13 5700178000 Steel Ball
3 5660176000 Circlip For Shaft 14 3660466000 Compression Spring
4 3126505000 Clutch Cup 15 3126501000 F/R Button
5 2790313000 Gear Case A Assembly 16 4870452000 Trigger Switch
6 5620031000 Screw 17 3402577000
Contact Receptacle
Assembly
7 5650003000 Spring Washer 18 3321395000 Right Housing Assembly
8 2790314000 Motor A and Gear Assembly 19 5610013000 Tapping Screw
9 3321394000 Left Housing Assembly 20 4860003000 Inner Wire
10 3810405000 Screw Bits 21 4920156000 Shrinkable Tube
11 3703673000 Bits Holder
If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline,
at 1-800-689-9928.
PART LIST
