11
20V max* LITHIUM-ION COMPACT CORDLESS IMPACT WRENCH - 054-3121-6
OPERATING INSTRUCTIONS
ON/OFF Trigger switch (g 2)
To turn the cordless impact wrench ON, depress
the trigger switch. To turn it OFF, release the trigger
switch.
Variable speed (g 2)
The variable-speed trigger switch delivers higher
speed with increased trigger pressure and lower
speed with decreased trigger pressure.
Direction-of-rotation selector
(forward/centre-lock/reverse)
(g 2, 3)
The direction-of-rotation is reversible and is
controlled with a selector located above the trigger
switch. With the cordless impact wrench held in
normal operating position:
Position the direction-of-rotation selector to the left
of the tool for forward rotation. The forward/reverse
LED indicator on the impact wrench will shine green
(g 3b).
Position the direction-of-rotation selector to the
right of the tool for reverse rotation. The forward/
reverse LED indicator on the impact wrench will
shine red (g 3b).
Position the direction-of-rotation selector in the
centre to lock the tool off.
NOTE: The cordless impact wrench will not run
unless the direction-of-rotation selector is engaged
fully to the left or right.

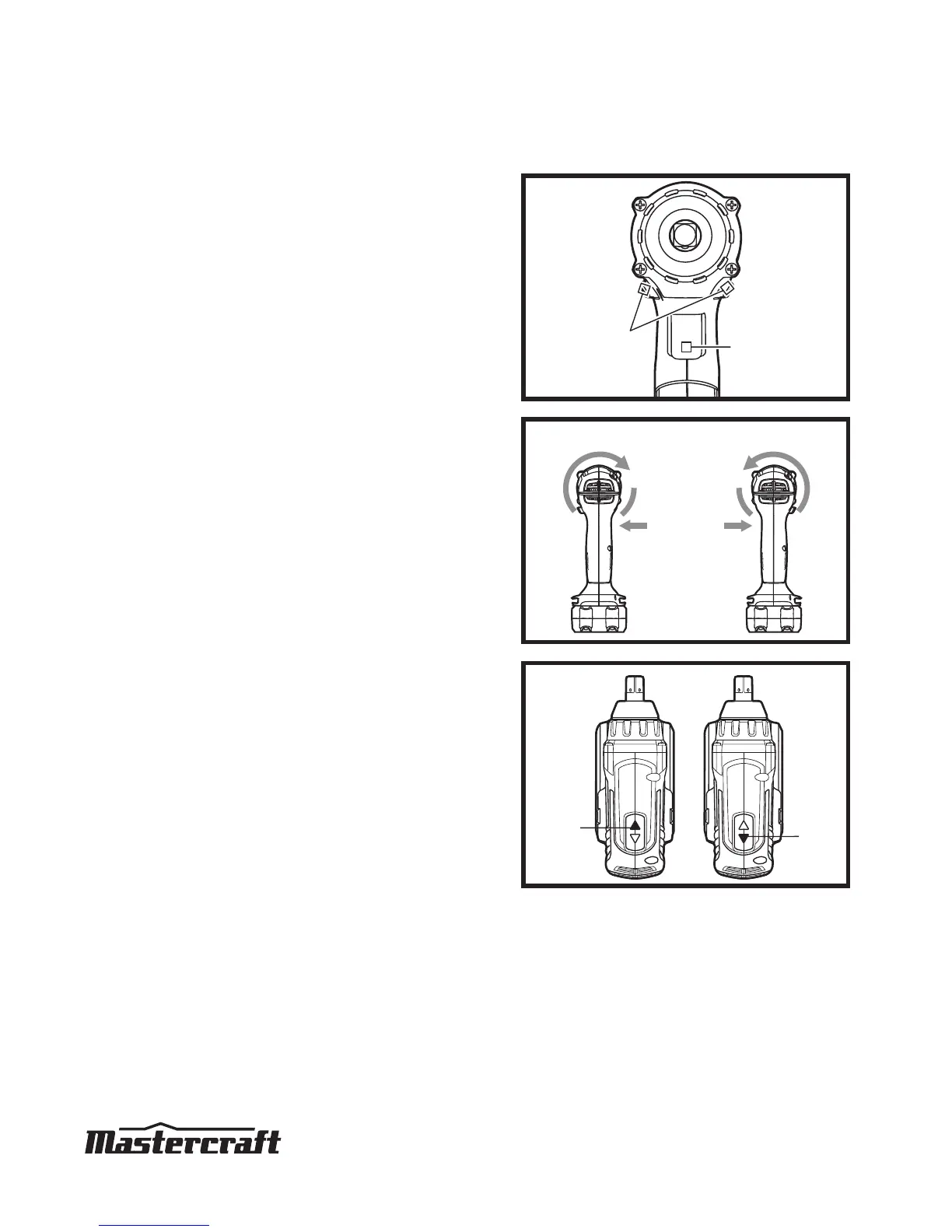

fig 2
Direction-of-rotation
selector
Variable speed
trigger switch
fig 3a
Forward Reverse
fig 3b
Green
Red
