MasterCraft 54-4892-4

WARNING: When servicing, use only Mastercraft™ replacement parts. The use of
any other parts may create a safety hazard or cause damage to the rotary tool.
Any attempt to repair or replace electrical parts on this rotary tool may create a safety hazard unless
repairs are performed by a qualied technician. For more information, call the Toll-free Helpline, at
1-800-689-9928.
Always order by PART NUMBER, not by key number.
!
26
27

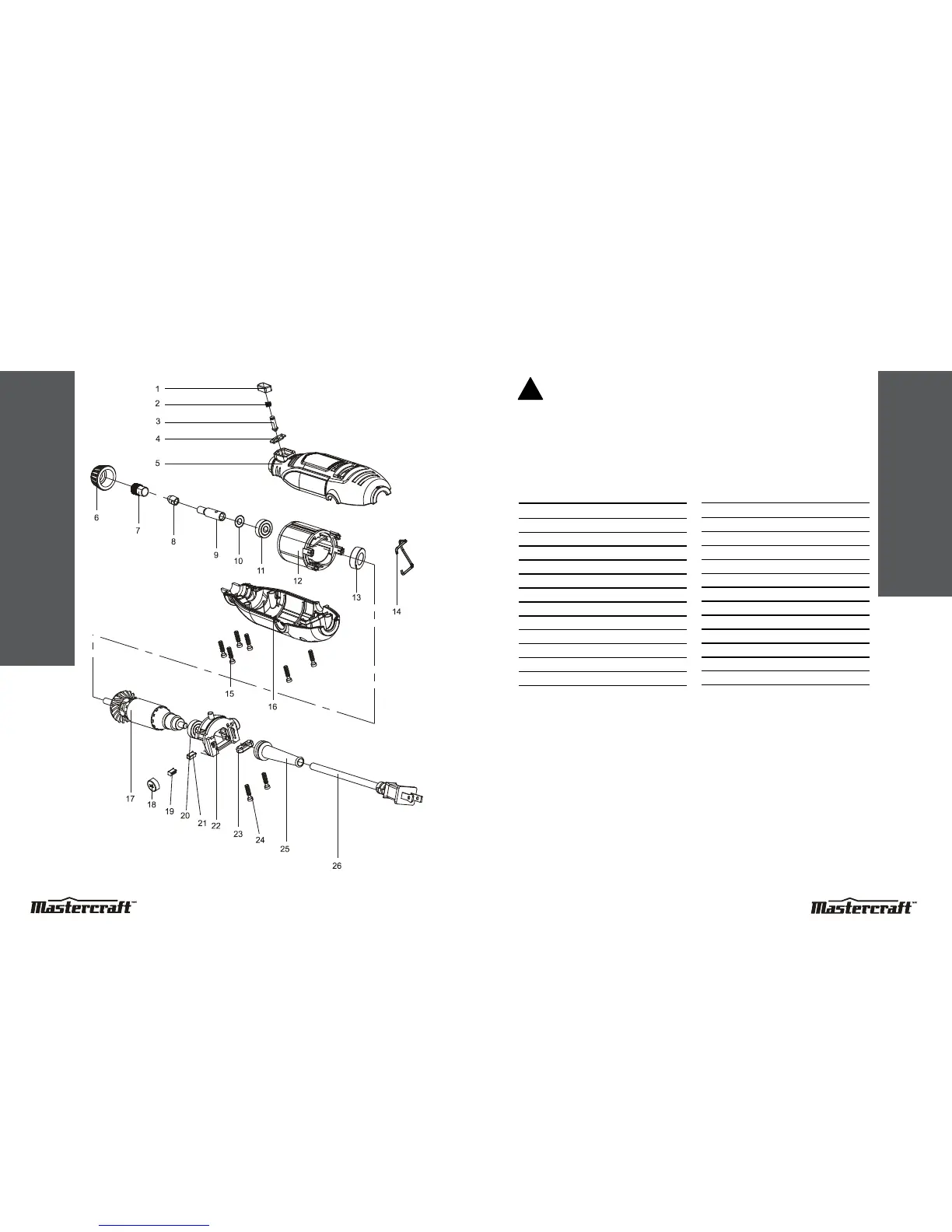

EXPLODED VIEW
Key # Part # Part Name Qty
1 3120020124 Spindle locking button 1
2 2050040004 Lock pin spring 1
3 2040160105 Lock pin 1
4 3011160019 Lock pin washer 1
5 2040190009 Housing I 1
6 3150100014 Accessory collar 1
7 2040190009 Collet nut 1
8 2040280001 1/8” collet 1
9 2040040041 Output shaft 1
10 2030020141 Washer 1
11 4010010031 Bearing 626Z 1
12 1020160006 Stator 1
13 3140040003 Bearing cover 1
Key # Part # Part Name Qty
14 2050080124 Hanging loop 1
15 4030010034 Tapping screw ST2.9X16 6
16 2040190009 Housing II 1
17 1010160007 Armature 1
18 3150140012 Brush holder nut 2
19 1230010028 Brush 2
20 4010010031 Bearing 626Z 1
21 2030070006 Copper support 2
22 1061190001 Switch 1
23 3150020001 Cord clamp 1
24 4030010074 Tapping screw ST3.9X12 2
25 3140010004 Cord guard 1
26 1190030009 Cord 1
PARTS LIST
DELUXE CORDED ROTARY TOOL KIT 054-4892-4
DELUXE CORDED ROTARY TOOL KIT 054-4892-4
