MASTERCRAFT
LENGTH OF BOAT: .............................................. 19’8”
OVERALL LENGTH W/TRAILER: ............................. 22’8”
LENGTH W/SWING-AWAY T ONGUE FOLDED .............. 21’
WIDTH AMIDSHIP: .................................................... 92”
OVERALL WIDTH W/TRAILER ................................. 100”
BOAT WEIGHT: ............................ 2,620 LBS. (APPR OX.)
SINGLE AXLE TRAILER WEIGHT: ......................... 860 LBS.
TANDEM AXLE TRAILER WEIGHT: .................... 1,040 LBS.
FUEL CAPACITY: ......................................... 31 GALLONS
CAPA CITY: ................................. 6 PEOPLE OR 900 LBS.

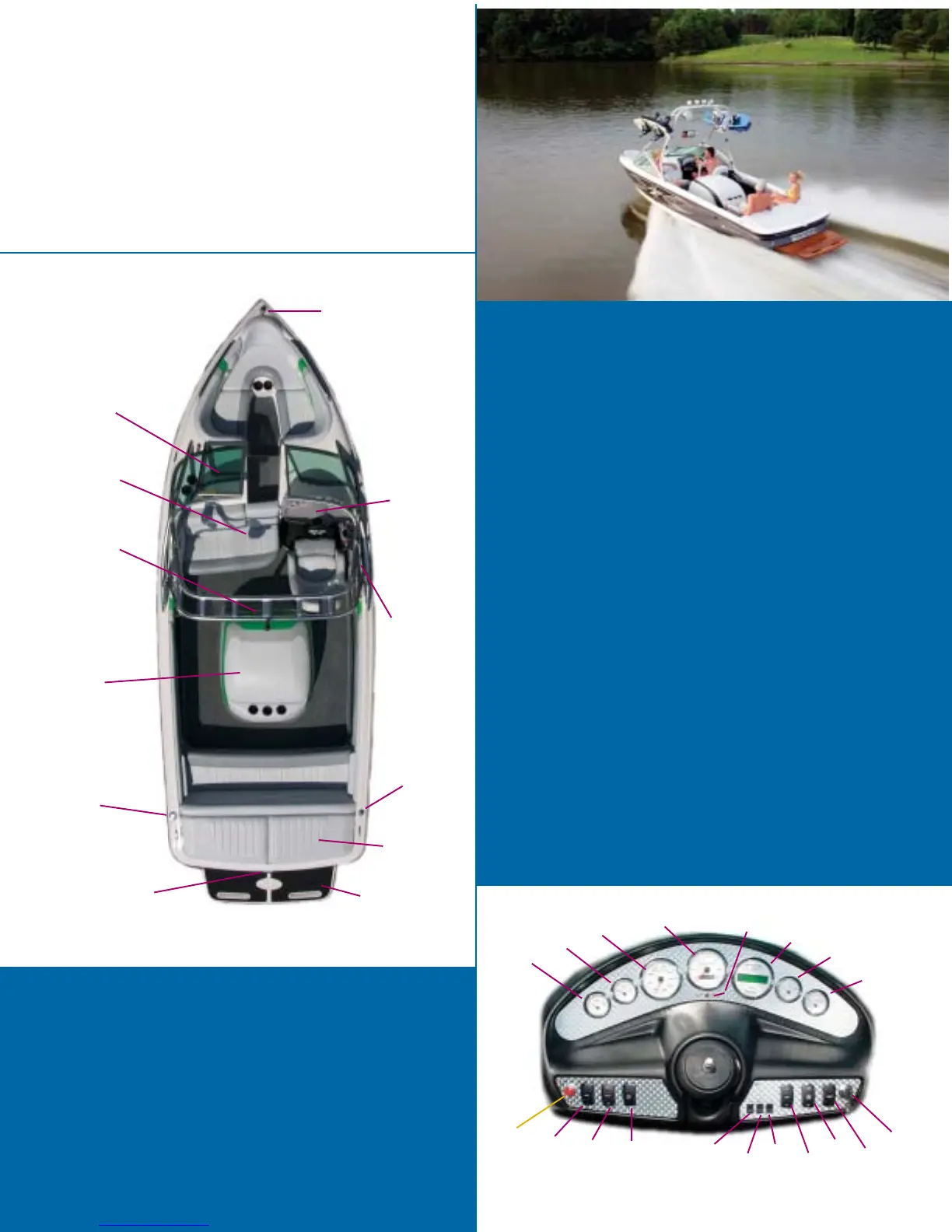

AFUEL
TANK
FILLER
B BLOWER
EXHAUST
CSWIM
PLATFORM
D STERN
LIGHT
RECEPTACLE
E STORAGE
UNDER
SUN
PAD
F ENGINE
COMPART MEN T
G T HROTTLE
/
SHIFT
CONTROL
H INSTRUMENT
PANEL
IBOW
LIGHT
J GLOVE
BOX
K BATTERY
(
UNDER
SEAT
)
L DRAIN
PLUG
1 OIL PRESSURE GAUGE
2 ENGINE TEMPERATURE GAUGE
3 SPEEDOMETER
4 MULTI-FUNCTION/TACHOMETER
5 CHECK ENGINE LIGHT
6 SPEEDOMETER OR PERFECT PASS GAUGE
7 VOLTMETER
8 FUEL GAUGE
9 HORN
10 ACCESSORY 1 SWITCH
11 ACCESSORY 2 SWITCH
12 COUR TESY LIGHTS SWITCH
13 SPEEDO AJUSTMENT SWITCHES
14 CLOCK ADJUSTMENT SWITCH
15 NAV/ANCHOR LIGHTS SWITCH
16 BILGE PUMP SWITCH
17 BLOWER
18 IGNITION KEY SLOT
X-7
1
2
3
4
5
6
7
8
9
10
11 12
13
14
13
15
16
17
18
