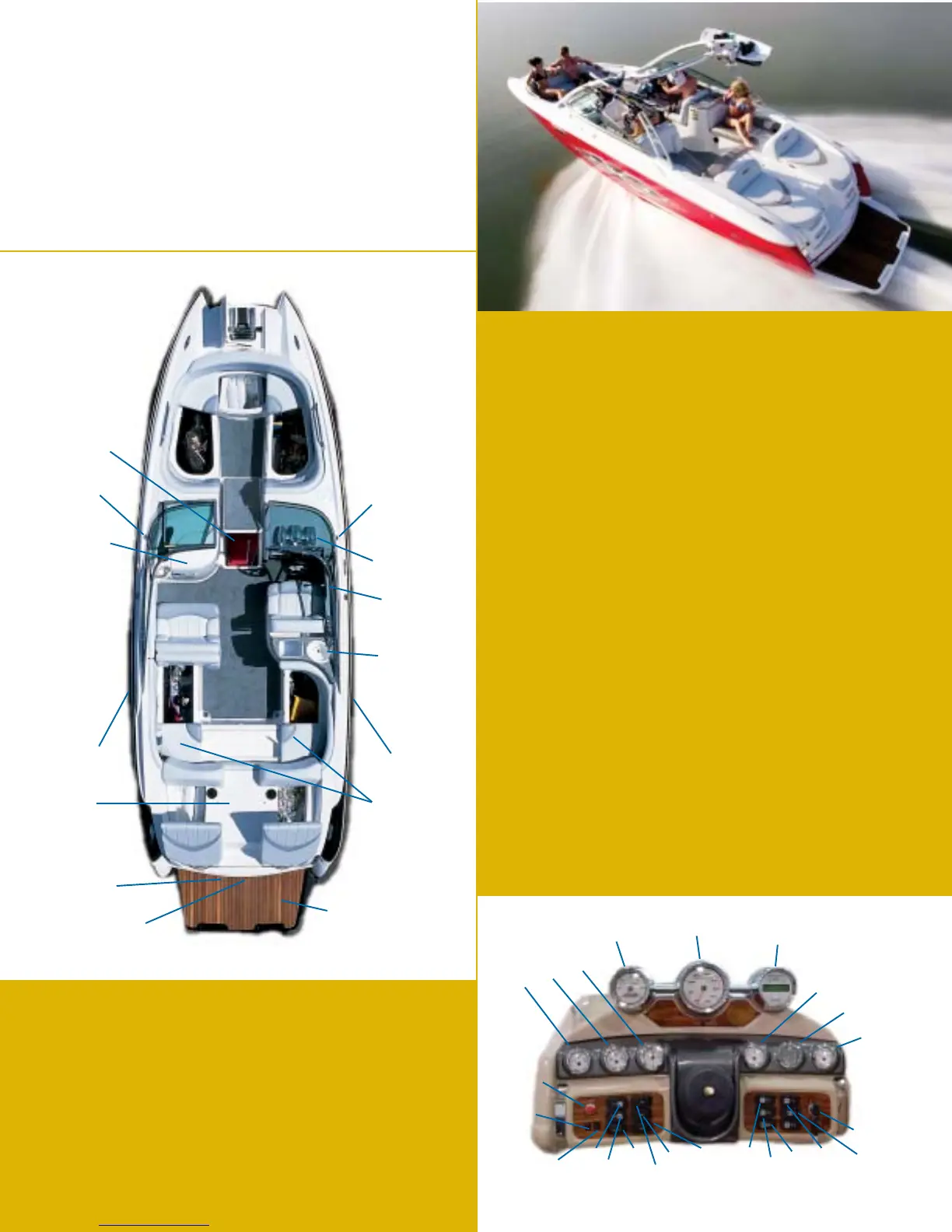

GUIDE TO INDIVIDUAL MODELS: PROSTAR 209
5-4
ProStar
209
AFUEL TAN K FILLER
BBLOWER EXHAUST
CSWIM PLAT FORM
D STERN LIGHT RECEPTACLE
ESTORAGE UNDER SUN PAD
F ENGINE COMPARTMENT
G THROTTLE/SHIFT CONTROL
HINSTRUMENT PANE L
IBOW LIGHT
JGLOVE BOX
K BATTERY (UNDER SEAT)
L DRAIN PLUG
A
C
D
E
F
G
H
I
J
K
B
L
AOIL PRESSURE GAUGE
B ENGINE TEMPERATURE GAUGE
C SPEEDOMETER
DMULTI-FUNCTION/TACHOMETER
E CHECK ENGINE LIGHT
F SPEEDOMETER OR PERFECT PA SS GAUGE
G VOLTMETER
HFUEL GAUGE
IHORN
J ACCESSORY 1 SWITCH
K ACCESSORY 2 SWITCH
L COURTESY LIGHTS SWITCH
M SPEEDO AJUSTMENT SWITCHES
NCLOCK ADJUSTMENT SWITCH
ONAV/ANCHOR LIGHTS SWITCH
PBILGE PUMP SWITCH
QBLOWER
R IGNITION KEY SLOT
a
b
c
d
f
g
h
j
k
l
mn o
p
q
r
e
i
m
LENGTH OF BOAT: .................................... 20’11-1/2”
OVERALL LENGTH W/TRAILER: ................... 22’11-1/2”
LENGTH W/SWING-AWAY TONGUE FOLDED: .21’3-1/2”
WIDTH AMIDSHIP: .................................................... 96”
OVERALL WIDTH W/TRAILER ................................. 100”
BOAT HEIGHT W/WINDSHIELD ................................. 67”
HEIGHT W/WINDSHIELD & TRAILER (TA) .................. 79”
HEIGHT W/WINDSHIELD & TRAILER (SA) .......... 80-1/2”
HEIGHT W/TOWER FOLDED ON TRAILER (TA) ......... 88”
HEIGHT W/TOWER FOLDED ON TRAILER (SA) . 89-1/2”
BOAT WEIGHT: ............................ 2,850 LBS. (APPROX.)
SINGLE AXLE TRAILER WEIGHT: ......................... 900 LBS.
TANDEM AXLE TRAILER WEIGHT: .................... 1,050 LBS.
FUEL CAPACITY: ......................................... 34 GALLONS
CAPACITY: .............................. 9 PEOPLE OR 1,370 LBS.
