TROUBLESHOOTING
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Motor will not start.
Low Voltage. Check power source for proper
voltage.
Open circuit in motor or
loose connections.
Inspect all lead connection
on motor for loose or open
connections. (Send for
Servicing.)
Blown fuse or breaker.
Short circuit. (Send for
Servicing.)
Change a fuse on PC board
Motor overheats.
Motor overloaded. Reduce load on motor.
Extension cord too long
and of insufficient gauge
(weight).
Utilize an extension cord of
appropriate gauge and length or
plug tool directly into outlet.
Motor stalls (resulting in
blown fuses or tripped
circuit).
Short circuit in motor or
loose connections.
Inspect connections on motor
for loose or shorted terminals
or worn insulation. (Send for
Servicing.)
Low voltage.
Correct low voltage conditions
(for example: improper
extension cord length and/or
gauge).
Incorrect fuses or circuit
breakers in power line.
Install correct fuses or circuit
breakers or plug tool into an
appropriate circuit
Motor overload. Reduce the load on the motor.
Wavy condition on surface
of workpiece.
Machine vibrating.
Ensure machine is securely
mounted on a solid surface.
Workpiece not being held
firmly.
Use a holding device to firmly
retain the workpiece.
Wheel face uneven. Dress the grinding wheel.
model no. 055-3503-6 | contact us 1-800-689-9928
21

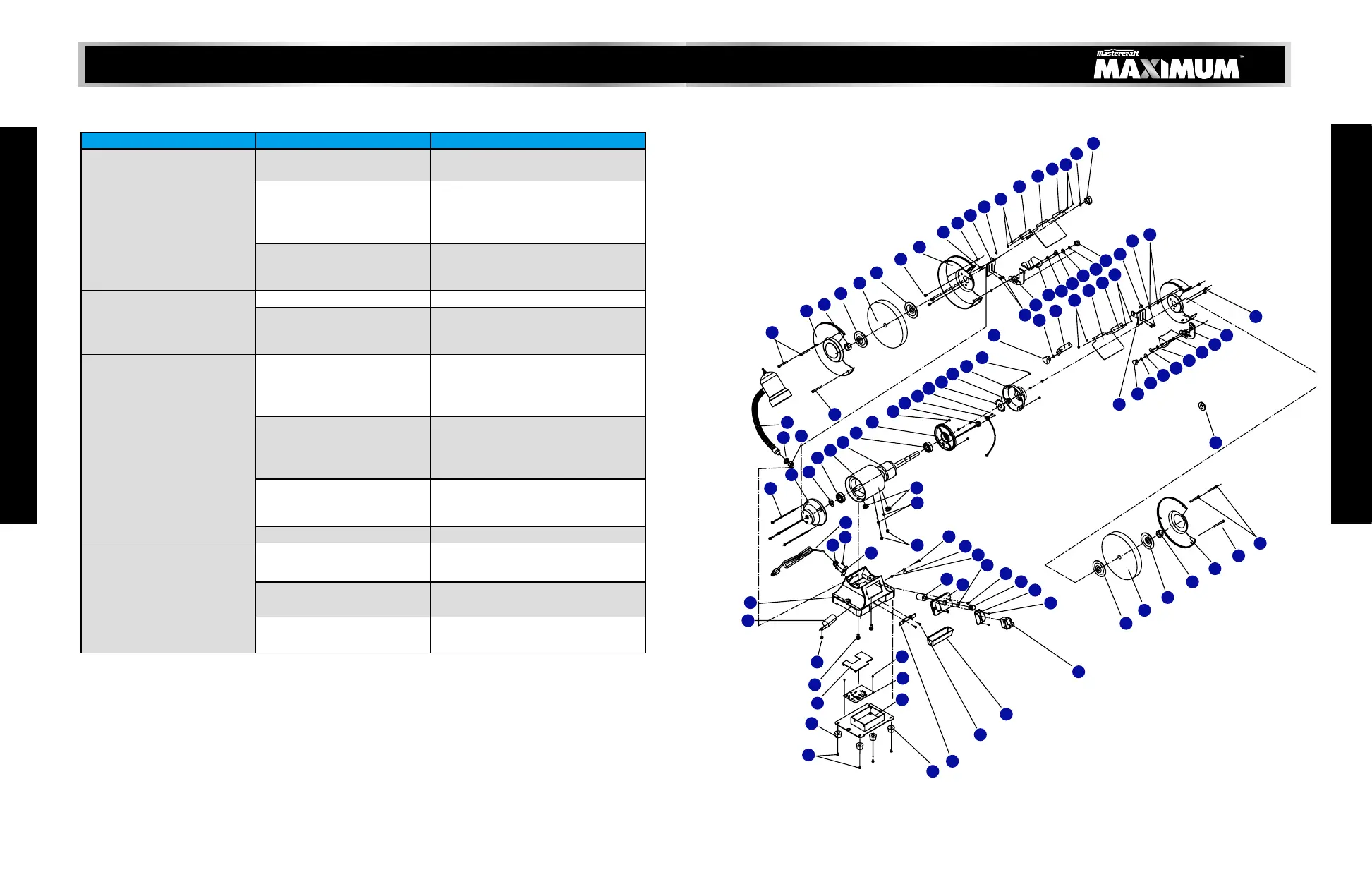

EXPLODED VIEW
34
54
58
57
56
55
21
33
17
33
60
69
36
70
36
65
68
42
73
74
75
41
49
77
18
50
76
51
20
52
77
34
54
55
21
56
57
58
60
46
48
47
46
45
44
43
16
27
14
13
61
19
18
2
53
10
67
66
54
72
71
8
8
33
62
2
9
9
1
6
7
4
3
5
59
12
11
61
35
15
32
31
36
30
29
28
27
38
21
25
26
22
24
36
39
40
41
42
37
53
10
67
66
23
54
64
63
