REMOTE CONTROL
Before you begin using your new air conditioner, make sure to familiarize yourself with the remote control.
The following is a brief introduction to the remote control itself. For instructions on how to operate your air
conditioner, refer to the OPERATING INSTRUCTIONS section of this manual.
For best results, make sure you are pointing the remote control at the air conditioner. The remote has a range
of about 26’ (8m), and there will be a beep from the A/C unit when the remote signal is received. Anything
obstructing a direct line between the remote and the unit, as well as direct sunlight, may interfere with the signal.
FUNCTION BUTTONS
• Button designs on your unit may differ slightly from the example shown. If the unit does not have a
particular function, pressing that function button on the remote control will have no effect.
• See OPERATING INSTRUCTIONS section for more detailed information on the functions controlled
by the remote control.

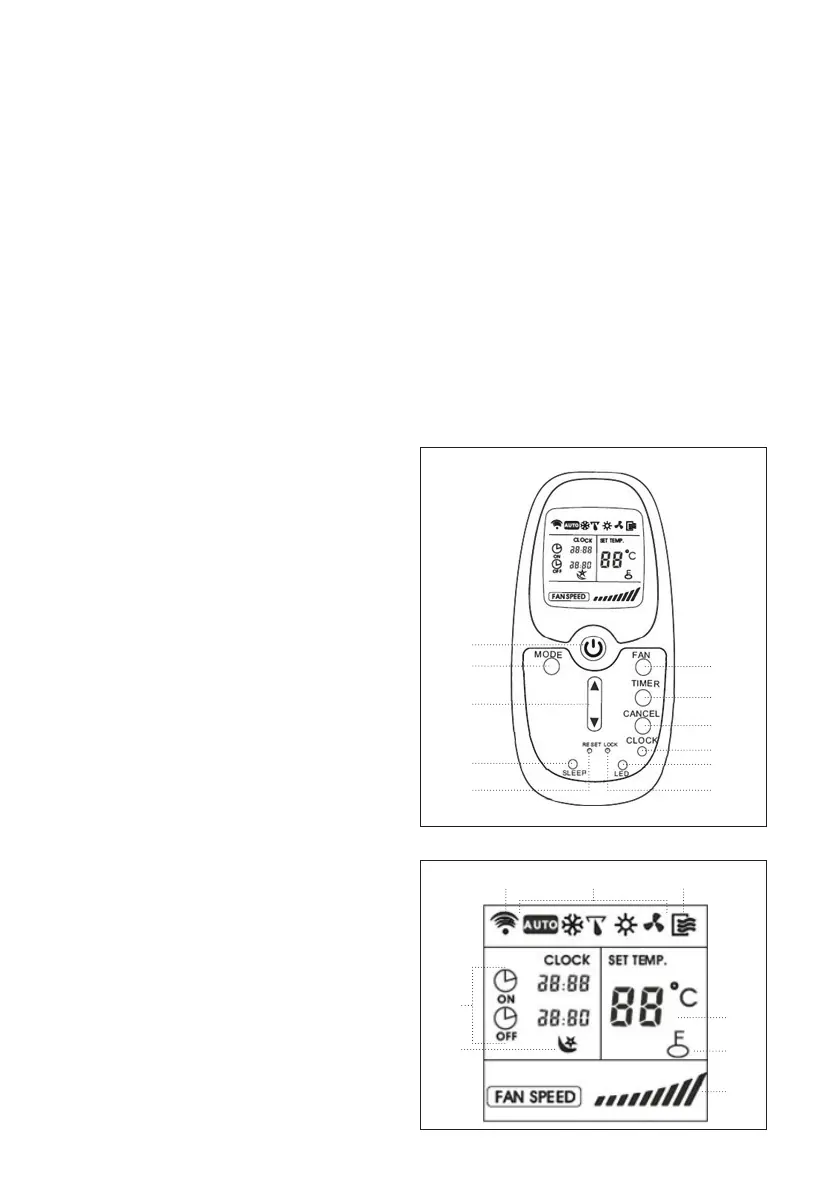

Figure 8
Figure 9
a. Power On/Off
b. Mode – Cycles through function modes.
c. Time/Temp – Adjusts set temperature and
Timer-On/Timer-Off time.
d. Sleep – Starts and stops SLEEP Mode.
e. Reset – Recessed button to reset all
settings for remote.
f. Fan – Sets the Fan Speed.
g. Timer – For setting Timer-On or Timer-Off.
h. Cancel – Cancels Timer modes.
i. Clock – Used to set the clock.
j. LED – Turns LED Display in A/C unit On
and Off.
k. Lock – Recessed button to lock or unlock
current settings for remote.
a
f
g
h
i
j
k
b
c
d
e
REMOTE CONTROL DISPLAY
a. Transmitter Indicator – Lights when remote
is transmitting.
b. Mode Display – Shows current operation
Mode. AUTO – COOL – DRY – FAN
c. ON/OFF Display – Shows status of A/C Unit.
d. Time Display – Shows Timer-On/Off time
(0-24 hrs.). If Timer is not set, displays
current time. To view current time while
Timer is set, push the Clock button.
e. Sleep Display – Indicates if Sleep Mode is on.
a b c
d
e
f
g
h
